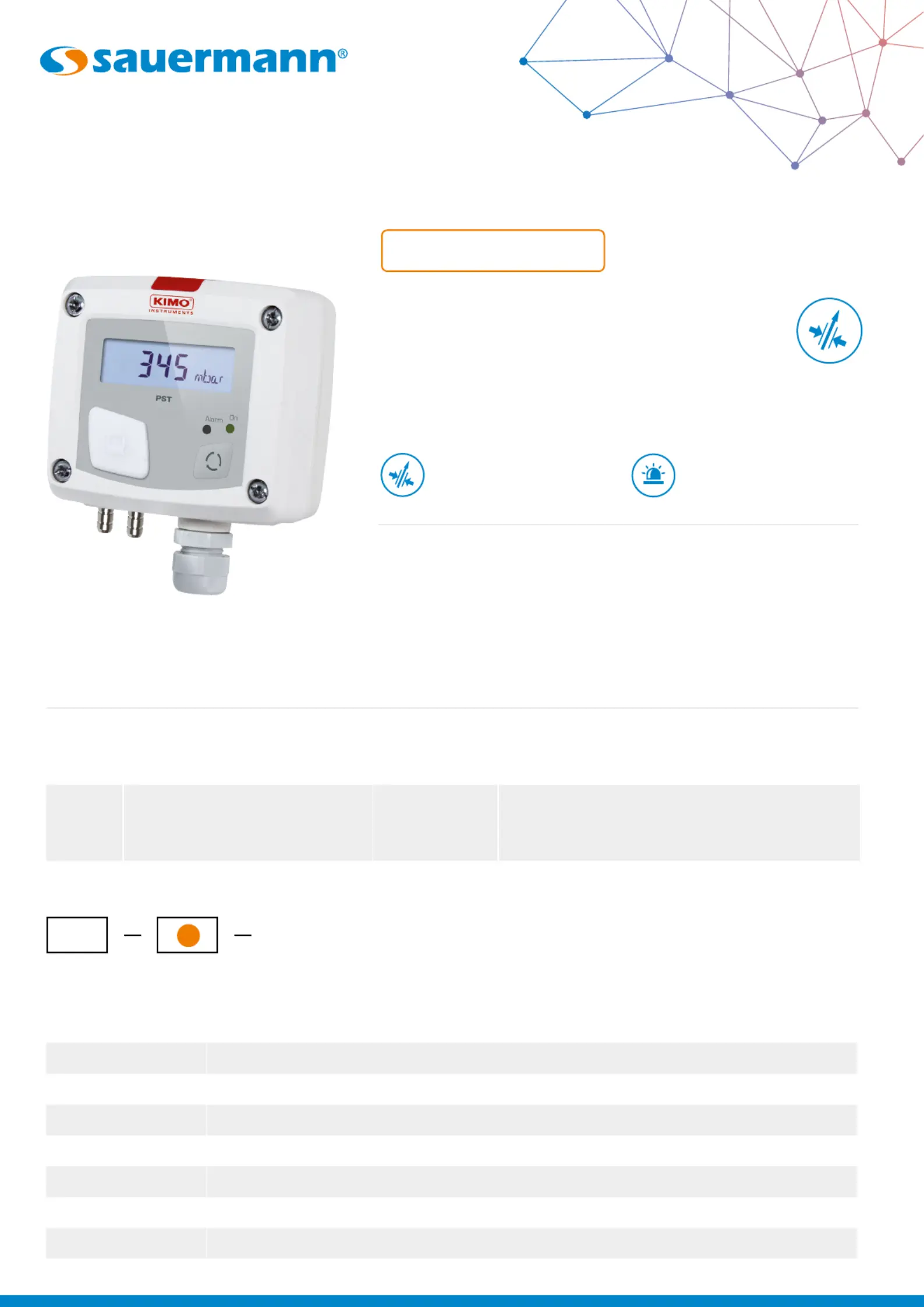

PST

Manostats

DATA SHEET

ParameterAccuracies*Measuring rangesResolution

Pressure

PST-11: ±1% of reading ±2 Pa

PST-12: ±1.5% of reading ±3 Pa

PST-13: ±1.5% of reading ±3 mmH

2

O

PST-14 and PST-15: ±1.5% of reading ±3 mbar

From -100/+100 Pa to

-2000/+2000 mbar

(according to model)

PST-11, PST-12 and PST-13: 1 Pa, 0.1 mmH

2

O, 0.01inWG, 0.01mmHG,

0.1 daPa, 0.001 kPa (0.01 kPa for PST-13), 0.01 hPa, 0.01 mbar

PST-14 and PST-15: 1 mbar, 0.1 inWG, 1 mmHG,

0.1 PSI, 1 mmH

2

O, 1 daPa, 1 hPa, 0.1 kPa

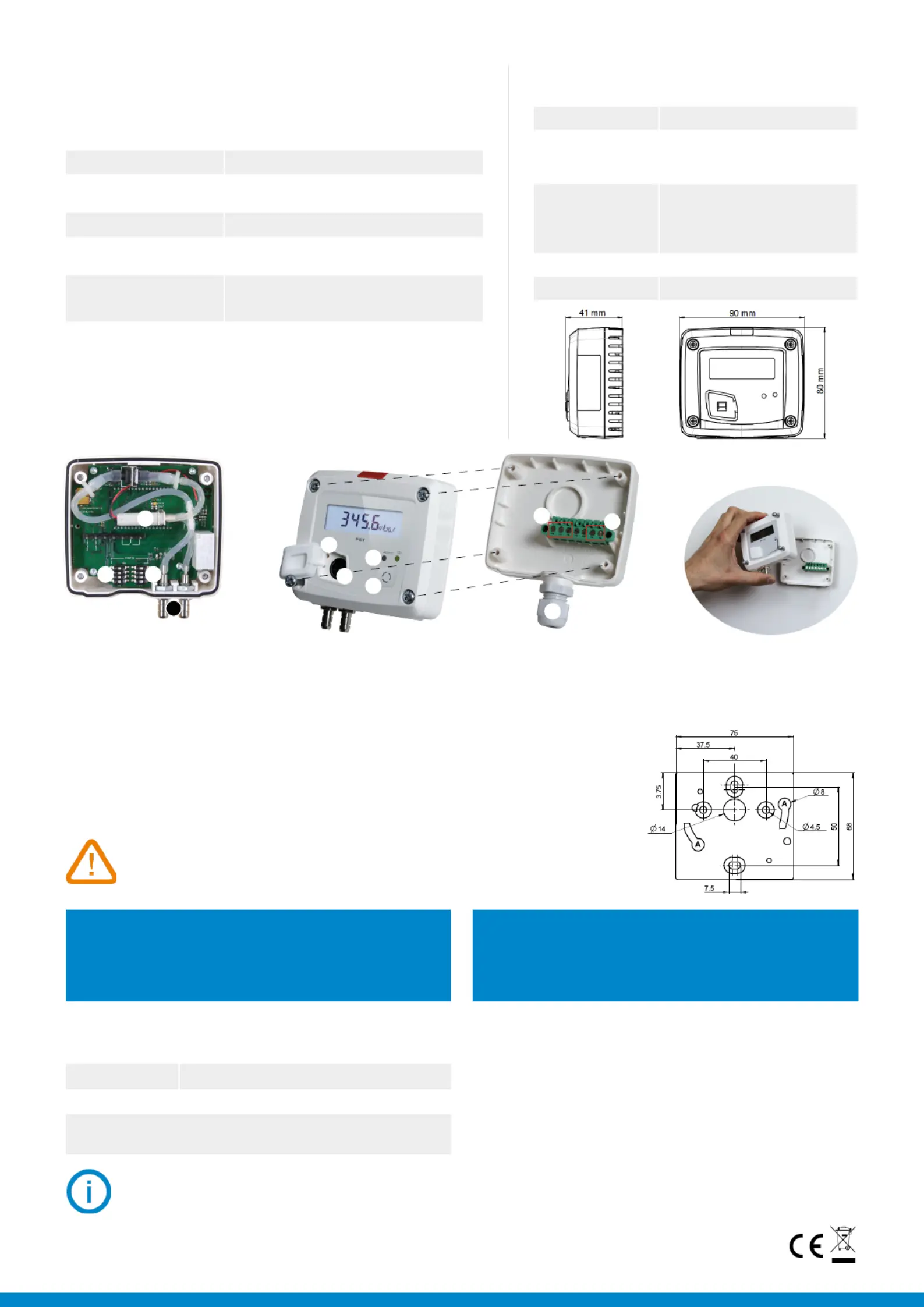

Technical specications

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

Features

• RCR relay output 3A/240 Vac

(NC), power supply 24 Vac/Vdc

• ABS V0 IP65 housing

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

• Solenoid valve for auto-calibration

(only on PST-11 model)

Visual and audible alarm,

red led in front

Range from ±100 Pa to

±2000 mbar

(according to model)

Output1 RCR relay. NO (normally opened): 5 A/NC (normally closed): 3 A/240 Vac. Common mode voltage <30 Vac

Power supply24 Vac/Vdc ±10%

Consumption3 VA

Relay and alarm statusRed led in front and internal buzzer (70 dB at 10 cm)

European directives2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connectionTerminal block for cables Ø 0.05 to 2.5 mm

2

. Carried out according to the code of good practice

PC communicationUSB-mini Din cable

EnvironmentAir and neutral gases

Measured parameter

Measuring range

11: -100/+100 Pa

12: -1000/+1000 Pa

13: -10,000/+10,000 Pa

14: -500/+500 mbar

15: -2000/+2000 mbar

Part number

Example: PST – 13

Manostat PST with measuring range

from -10,000 to +10,000 Pa

PST

13
