Pagina 1/1
Smart Media Console
Speaker Rough-In Bracket Installation
Russound, Inc.
5 Forbes Road, Newmarket, NH 03857
tel 603.659.5170 • fax 603.659.5388
email: tech@russound.com www.russound.com
28-1325 08/01/08
©2008 Russound. All rights reserved.
All trademarks are the property of their respective owners.
Specications are subject to change without notice.
Russound is not responsible for typographical errors or omissions.
Introduction
Speaker new-construction brackets are used in the rough-in phase of
speaker installation. These brackets are designed to locate the proper
position and to provide drywall installers the correct cut-out pattern for
the speakers. The brackets have perforated wings that are nailed, screwed,
or stapled onto the wall studs. Once the drywall is installed, the opening
is cut out and the speaker frame is inserted into the opening through the
bracket.
The brackets are made of tough plastic and aluminum and can withstand
the abuse of the construction process. Each unit consists of a speaker
bracket and two tabbed wings to secure to each side of the stud opening.
Installation
Prepare the speaker bracket by sliding the wings into the slots on 1.
each side of the speaker bracket. Each piece has "Front" and "Back"
molded into the plastic. The wings will only t into the slots in the
bracket in the correct orientation (e.g., Front to Front).
Locate the stud opening that best suits the speaker application. A 2.
minimum clearance depth must be available for each opening (refer
to speaker manual). The speaker location should be free from obstacles
(electrical wiring, plumbing, duct work).
Turn the bracket so the back faces the inside of the wall. Screw, nail 3.
or staple the bracket wings to the studs. Use a level to make sure the
bracket is straight and level for all rectangular speakers. In a horizontal
orientation, the LCR bracket can be attached by securing the shorter
side tabs directly to the studs.
Pull the necessary wire to each of the brackets. Each wing has a wire 4.
loop on the back to secure the wire during the construction process.
Provide the drywall installer with the precise location and dimensions 5.
of the speaker brackets. The speaker cutout (hole) must not extend
further than " (0.6 cm) from the inside of the mounting bracket.
Additional Tips / Considerations
If possible, run speaker wires after AC wiring is in place to avoid induced •
hum caused by close parallel proximity of the two types of wire.
Avoid running speaker wires close to house electrical wiring for any •
distance. If you have to run them parallel, leave two feet between the
wiring. Speaker wires should cross AC lines at a 90° angle.
Secure speaker wires in place against a stud along vertical runs with •
insulated staples only. Do not pierce the wire insulation. Allow a bit of
slack for expansion of building materials.
Route horizontal wire runs through holes drilled in studs at roughly •
equal heights.
Speakers installed in ceilings should have an additional safety wire •
secured to the stud.
The speakers should not be installed until the wallboard is in place. In •
the meantime, leave adequate wire coiled up and secured to the back
side of the mounting frame. Excess length can be removed during nal
assembly.
Terminate the wires in an outlet box attached to a stud or retrot •
junction box at the exit location. Utilize an outlet plate which has
connections for speaker wire terminations. Russound dealers oer a
full line of Russound PlateMate™ connection systems.
After the drywall is secured and nished, install the speakers as •
described in the speaker manual.

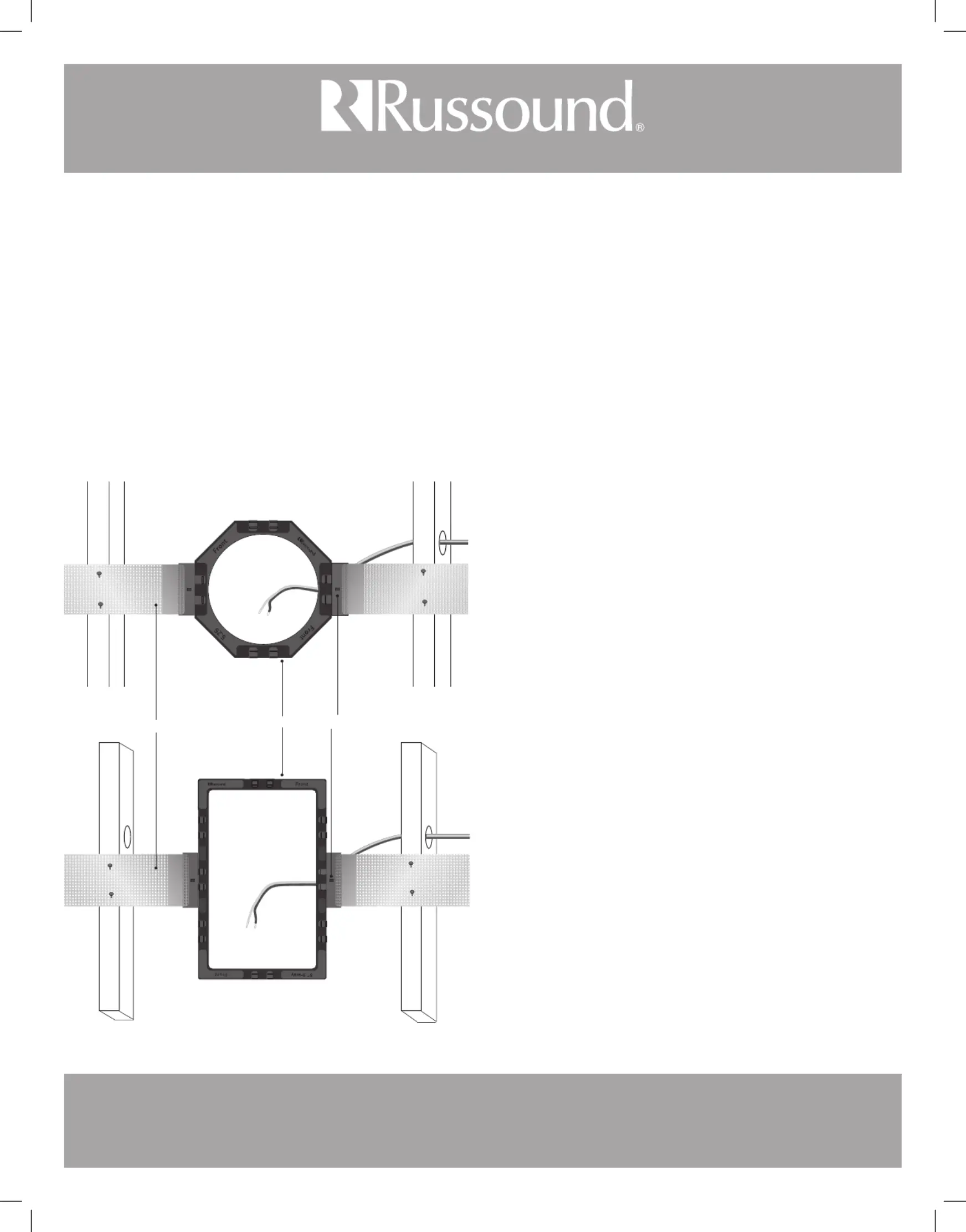

Wire Loop
Speaker Bracket
Wing
