Before using your new product, please read these instructions to prevent any damage.

QUICK SETUP GUIDE

RF-G1501 / RF-G1501-C, 4-Port HDMI Switch with 4K Compatibility

REMOTEFRONT

BACK

PACKAGE CONTENTS

• 4-Port HDMI Switch • Remote control

• Power adapter • Quick Setup Guide

FEATURES

Your 4-Port HDMI Switch supports 4K video and next-generation

audio.

• Compatibility with most CEC-enabled HDMI devices

• Resolution: 480p, 720p, 1080p, and 4K (4096 × 2160)

• Frame Rate: Up to 4K at 60Hz (1080p at 240Hz)*

• Color: Deep Color, HDR, and other enhanced color specications

• Audio:Works with Dolby TrueHD, DTS-HD, and all audio formats

supported by the HDMI 2.0 standard

• Auto Switch: When a source device is turned on, the switch

automatically detects and switches to that device’s input

*Note: TVs with high internal refresh rates (such as 240Hz) are compatible.

The specications refer to source signal and not the TV refresh rate.

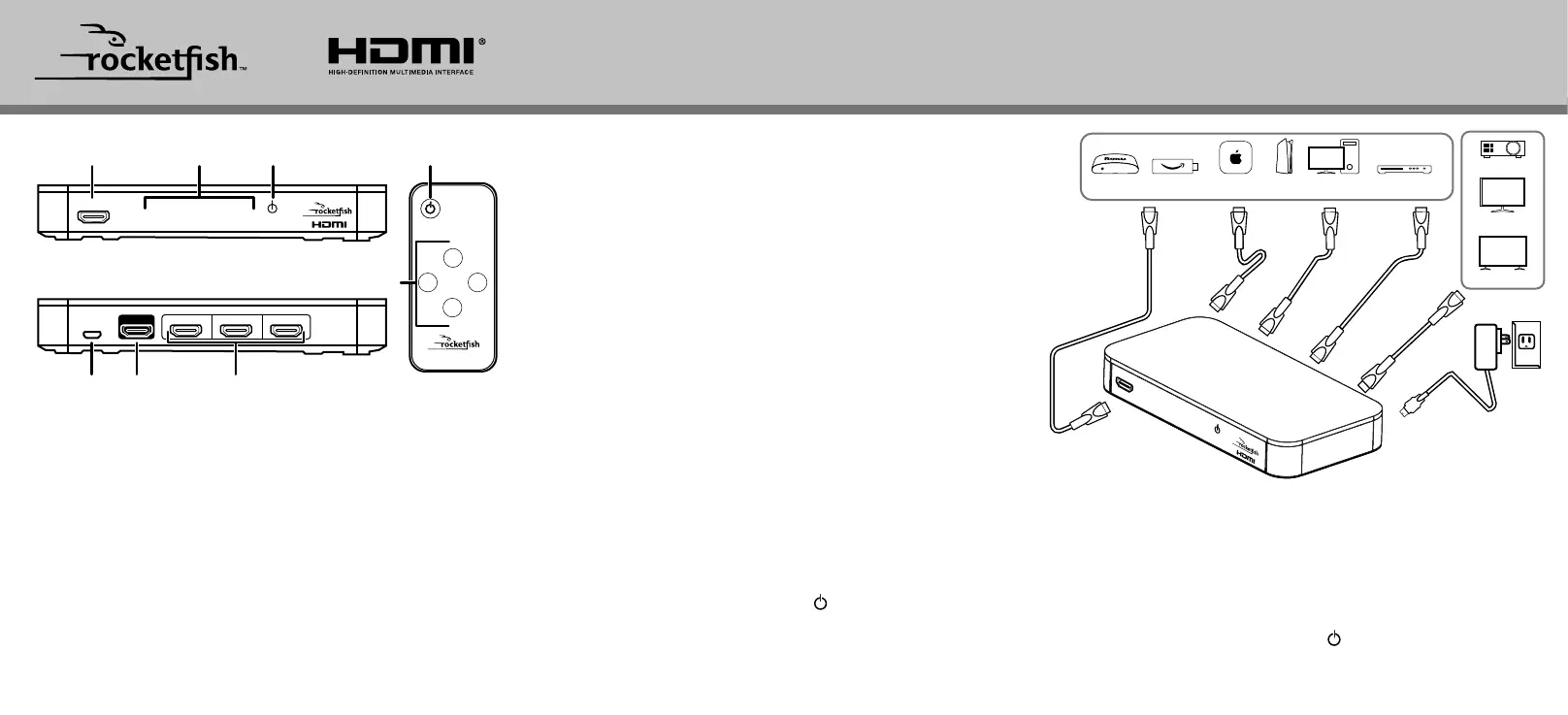

SETTING UP YOUR HDMI SWITCH

1Connect HDMI cables from your source devices to the switch’s

input ports.

2Connect an HDMI cable from your TV (or projector) to the

switch’s output port.

3Connect the power adapter from the DC 5V port to a power

outlet. The power LED and an input LED light up.

Note:To fully support 4K resolution, connect the input and output

channels using HDMI Premium Certied cables 9.6 ft. (3 meters) or less in

length.

Optional wall-mounting: Install two screws 4 in. (10.2 cm) apart into your

wall, then hang the switch on the screws. Mounting hardware is not included.

USING YOUR HDMI SWITCH

1Turn on your TV and the source device.

2Turn on your switch by pressing the POWER ON/OFF button on

your remote control or pressing the (power) button on your

switch.

Note: When the switch is turned on, it automatically switches to the last

input that was used, unless Auto Switch is turned on. If Auto Switch is on,

the switch goes to the device that is turned on.

HDMI

Input 1

HDMI

Input 3

Power

adapter

HDMI

Output

HDMI

Input 4

HDMI

Input 2

1

234

I

NPUT

1

DLP

Monitor

4K HDTV

Apple TVFire stickRokuDVD/Blu-ray playerPC

PS5

RF-G1501_-C_23-0904_QSG_V11_EN_Final.ai11/5/202412:55:50PM
