ITEM NO: 17-1031
ITEM NO: 17-1031
ITEM NO: 17-1031
ITEM NO: 17-1031 ITEM NO: 17-1031
Montecito Up-Down
Montecito Up-Down
Montecito Up-Down
Montecito Up-Down Montecito Up-Down Outdoor Sconce
Outdoor Sconce
Outdoor Sconce
Outdoor Sconce Outdoor Sconce
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
These instructions are provided for your safety. It is very important that they are read completely before
beginning the installation of your fixture.
ASSEMBLY I
ASSEMBLY I
ASSEMBLY I
ASSEMBLY IASSEMBLY INSTRUCTION:
NSTRUCTION:
NSTRUCTION:
NSTRUCTION:NSTRUCTION:

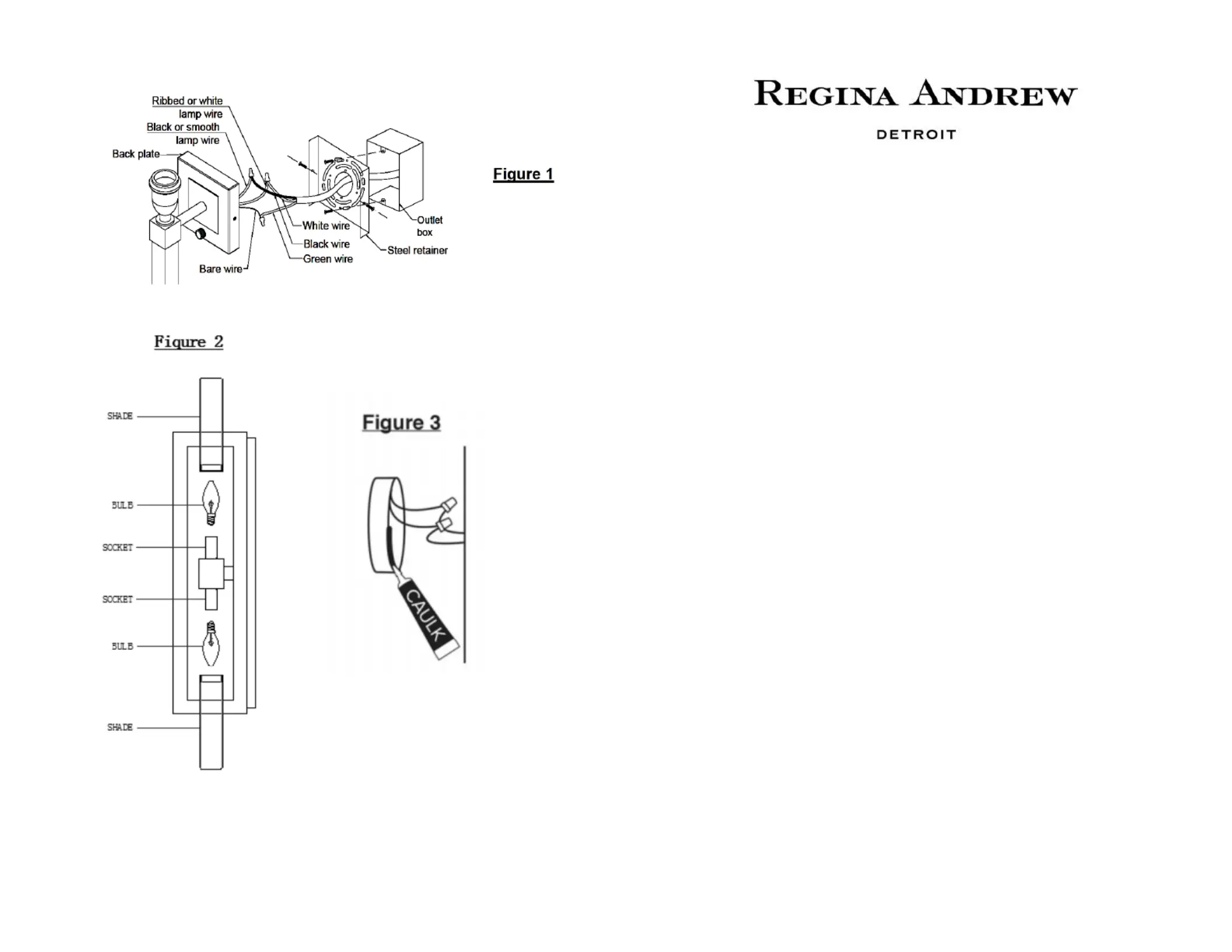

A. FOR WIRING DIRECTLY INTO OUTLET BOX (Figure 1)
1. Remove steel retainer from lamp back plate by removing the attachment screws
on the side of the backplate and attach the retainer to the outlet (junction) box.
Adjust the retainer so that the tabs on the side are level.
2. Connect the wires of lamp to the wires of outlet box; a. black outlet--wire to box
black or smooth lamp wire; b. white outlet--wire to black or smooth lamp wire; box
c. bare “grounding” outlet-b-wire to green wire. ox
3. Install lamp to the steel retainer using two at-head screws.
B. FOR ADDING THE SHADE AND BULB (Figure 2)
1. Unscrew the glass shades.
2.an appropriately rated bulb into the socket Insert .
3. Screw on the glass shades. Note: The glass shade with open end should an
always be assembled on the lower socket, facing downward.
MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION
1. Mounting surface should be clean, dry, flat, and ¼” larger than the canopy/fixture
base on all sides. Any gaps larger than 3/16” should be corrected.
2. With a silicone caulking compound (not included), caulk completely around where
the back of the canopy/back plate meets the wall surface.
CAUTION:
CAUTION:
CAUTION:
CAUTION: CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S MOUNTING
PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE AND/OR JUNCTION
BOX.
Made in China
Made in China
Made in China
Made in ChinaMade in China
