Personal injury and/or equipment damage

may result if proper safety precautions are

not observed.

• Ensure that reel is properly installed

before connecting input and output

hoses.

• Bleed fluid/gas pressure from system

before servicing reel.

• Before connecting reel to supply line,

ensure that pressure does not exceed

maximum working pressure rating of

reel.

• Remember, even low pressure is very

dangerous and can cause personal in-

jury or death.

• Be aware of machinery and personnel

in work area.

• If a leak occurs in the hose or reel, re-

move system pressure immediately.

• A high tension spring assembly is con-

tained within the reel. Exercise extreme

caution.

• Pull hose from reel by grasping the

hose itself, not the control valve.

• If reel ceases to unwind or rewind,

remove system pressure immediately.

Do not pull or jerk on hose!

• Treat and respect the hose reel as any

other piece of machinery, observing all

common safety practices.

Operating Instructions

Series D80000 Spring Driven Hose Reels

Low and Medium Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com

Form# 998-1099 Rev: 11/2019

D83000 OLPFD83000 OLPD83075 OLP-HTH

D83075 OLPFD83075 OLPD84050 OLP-HTH

D84000 OLPFD84000 OLPD84000 OMP

D84035 OLPFD84035 OLPD84050 OMP

D84050 OLPFD84050 OLP

Personal Safety

IMPORTANT

Read this manual carefully before installing,

operating or servicing this equipment.

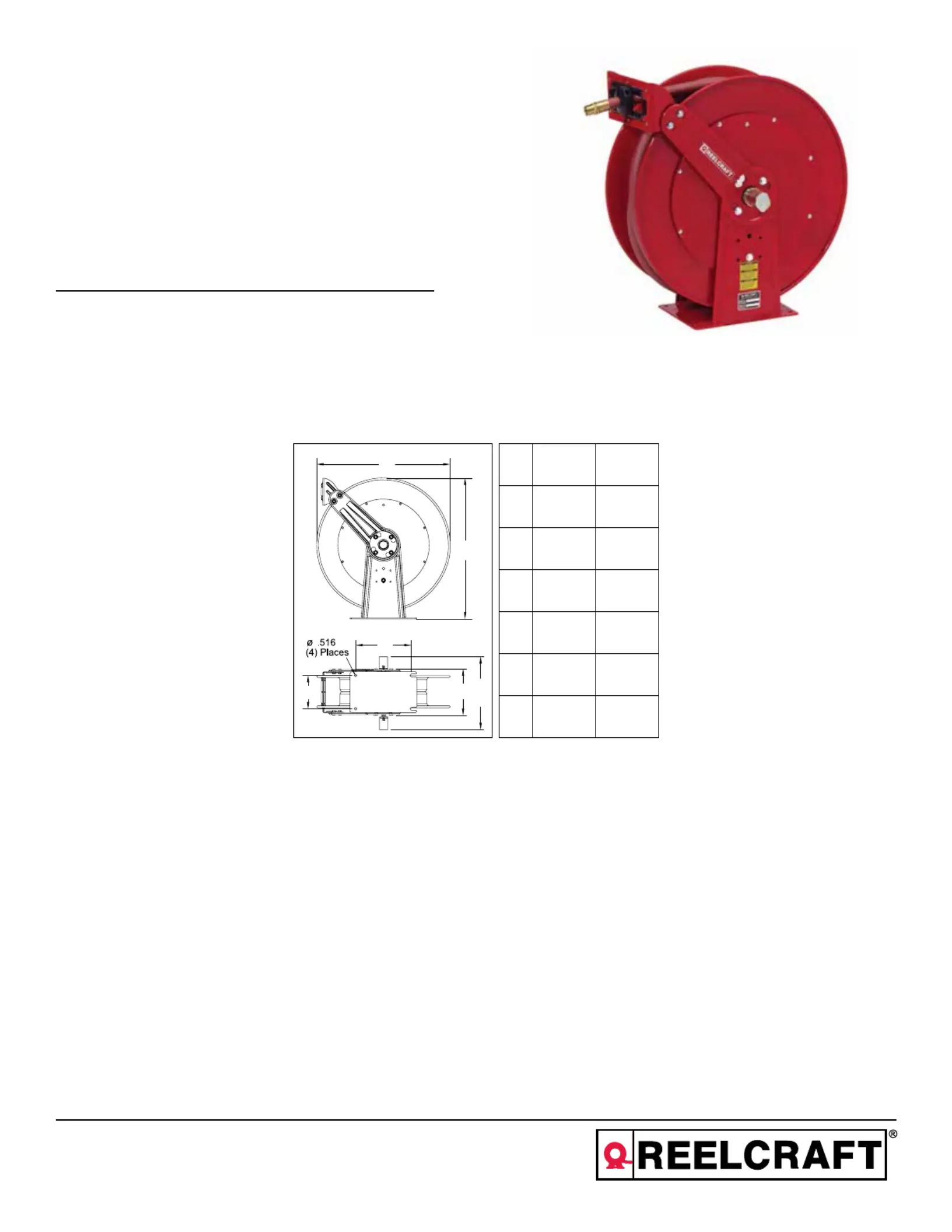

Dimensional Data

8300084000

A25.375”25.375”

B24”24”

C10.5”10.5”

D7.875”7.875”

E13”15.75”

F10.375”10.375”

A

B

C

D

E

F
