Operating Instructions

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com

Series RT Spring Driven Hose Reels

Low Pressure Model Numbers:

RT405-OLPRT605-OLPRT805-OLP

RT425-OLPRT625-OLPRT835-OLP

RT435-OLPRT635-OLPRT850-OLP

RT450-OLPRT650-OLP

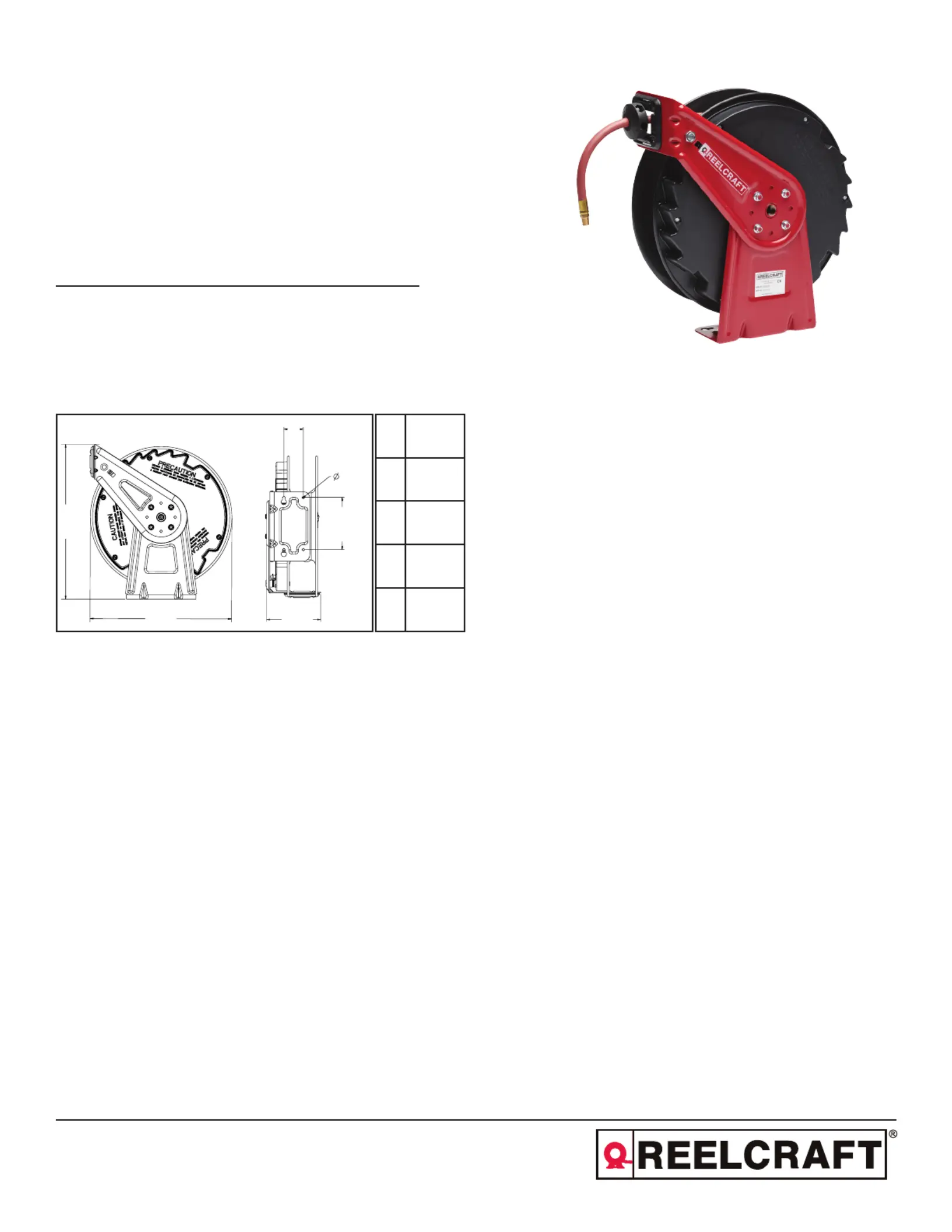

Dimensions

• Ensure that reel is properly installed before connecting input and

output hoses.

• Bleed fluid/gas pressure from system before servicing reel.

• Before connecting reel to supply line, ensure that pressure does

not exceed maximum working pressure rating of reel.

• Remember, even low pressure is very dangerous and can cause

personal injury or death.

• Be aware of machinery and personnel in work area.

• If a leak occurs in the hose or reel, remove system pressure

immediately.

• A high tension spring assembly is contained within the reel.

Exercise extreme caution.

• Pull hose from reel by grasping the hose itself, not the control

valve.

• Ensure that reel, hose, and equipment being serviced are

properly grounded. Use an ohmmeter to check ground

continuity.

• If reel ceases to unwind or rewind, remove system pressure

immediately. Do not pull or jerk on hose!

• Treat and respect the hose reel as any other piece of machinery,

observing all common safety practices.

SAFETY

Personal injury and/or equipment damage may result if proper safety

precautions are not observed.

Form# 1121-802A Rev: 2/2023

A

17 7/8”

B

16 1/2”

C

6”

D

2 1/4”

E

See

page 6

.325

.325

.325

.325

.325

(4) PLACES

(4) PLACES

(4) PLACES

(4) PLACES

(4) PLACES

B

A

E

C

D
