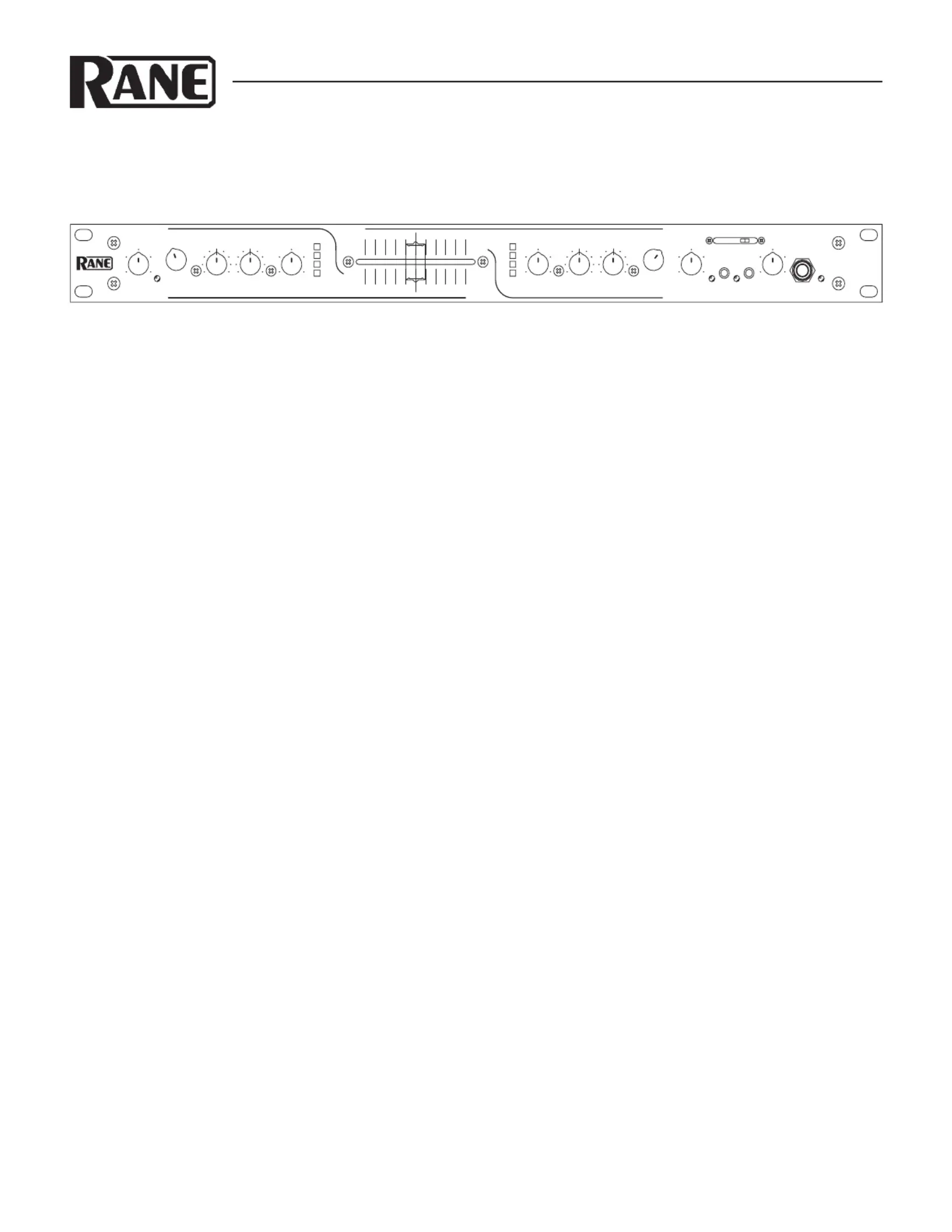

MP 2S
DJ MIXER
OL
MIC LEVEL A LEVEL B LEVEL LEVELLOW
10 8 6 4 02
LOWHIGH HIGH
0 2 4 6 108
INPUT INPUT
PGM CUE
A B
MP 2S
MIXER
A
PROGRAM A PROGRAM B
CUE
PHONESMIC
B
PAN
HOUSE
LEVEL POWER
P1 L1 L2
P2 P1 L1 L2
P2
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
0
–24
–12
+12
–12 +12 –12 +12 –12 +12 –12 +12
0
-24
-12
+12
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
To reduce the risk of electrical shock, do not open the unit. No user
serviceable parts inside. Refer servicing to qualied service personnel.
e symbols shown below are internationally accepted symbols that warn
of potential hazards with electrical products.
is symbol indicates that a dangerous voltage
constituting a risk of electric shock is present within
this unit.
is symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A ground-
ing-type plug has two blades and a third grounding prong. e wide blade or third prong is provided for your safety. If the provided plug does not
t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord and plug from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits from
the apparatus.
11. Only use attachments and accessories specied by Rane.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. e plug on the power cord is the AC mains disconnect device and must remain readily operable. To completely disconnect this apparatus from
the AC mains, disconnect the power supply cord plug from the AC receptacle.
16. is apparatus shall be connected to a mains socket outlet with a protective earthing connection.
17. When permanently connected, an all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electri-
cal installation of the building.
18. If rackmounting, provide adequate ventilation. Equipment may be located above or below this apparatus, but some equipment (like large power
ampliers) may cause an unacceptable amount of hum or may generate too much heat and degrade the performance of this apparatus.
19. is apparatus may be installed in an industry standard equipment rack. Use screws through all mounting holes to provide the best support.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping
or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.
NOTE: is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. ese
limits are designed to provide reasonable protection against harmful interference in a residential installation. is equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modications not expressly approved by Rane Corporation could void the user's authority to operate the equipment.
is Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Manual-1
OPERATORS MANUAL MP 2S
CLUB MIXER
QUICK START
If you are too excited to read the manual, at least read this page
to minimize any potential mistakes (we know you don't make
any). Be sure your amplifier is off while making connections, and
every time you turn on your system, apply power to your ampli-
fier .last
e most common assumption is that the cables you already
have will work. Well, let's be sure first. None of your RCA cables
should be longer than 10 feet (3 meters) or you are asking for
hum. e and are balanced ¼" TRS MAIN AUX OUTPUTS
(tip-ring-sleeve) connectors, allowing you to run long lines if
neccessary with properly balanced cables. If you really have to
use unbalanced (tip-sleeve) cables, keep them as short as possible
(well under 10 feet [or 3 meters]). If you are connecting balanced
devices (3-conductor) to either Input of the MP 2S, or are send-
ing the Output to an unbalanced equalizer or amplifier, consult
the included RaneNote “Sound System Interconnection” for proper
wiring.
e MP 2S has 3 sets of Outputs. e HOUSE OUTPUT
is set by the front panel control. e HOUSE LEVEL AUX
OUTPUT AUX is set by the rear panel screwdriver adjusted
LEVEL TAPE OUTPUT control. e is fixed. All Output level
WEAR PART
is product contains the following wear part subject to the ninety (90) day warranty period described on page Warranty-1:
(1) Active Crossfader #11646.
OL
MIC LEVEL A LEVEL B LEVEL LEVELLOW
10 8 6 4 02
LOWHIGH HIGH
0 2 4 6 108
INPUT INPUT
PGM CUE
A B
MP 2S
MIXER
A
PROGRAM A PROGRAM B
CUE
PHONESMIC
B
PAN
HOUSE
LEVEL POWER
P1
L1
L2
P2
P1
L1
L2
P2
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
0
–24
–12
+12
–12 +12 –12 +12 –12 +12 –12 +12
0
-24
-12
+12
controls are independent of each other. e only Level controls
that affect all Outputs simultaneously are the PROGRAM A
and controls.B LEVEL
If you bring a phono signal into P1 P2or be sure to keep the
PHONO switch ; likewise when connecting a CD player to in
this input, be sure the switch is .PHONO out
Start with the all the way down so you HOUSE LEVEL
don't scare the neighbors. Start with the Crossfader all the way
to the left ( ). Select an for PROGRAM A INPUT PROGRAM
A PROGRAM B and another for and start playing your sources.
Set the and controls to the center. Adjust the LOW HIGH
PROGR AM LEVEL controls so the bottom three (-24 -12, , and
0) indicators light up. If the +12 indicator flashes, turn down its
PROGR AM control. Now slowly turn up the LEVEL HOUSE
LEVEL so you can hear things working. Moving the Crossfader
to the right brings in the source selected on PROGRAM B.
e headphone cue system is simple: e PAN controls the
headphone mix between the Program going to the and HOUSE
what is on , determined by the switches.CUE CUE
A clean Crossfader is happy, behaved and long-living. See the
Fader Cleaning instructions on page Manual-4.
