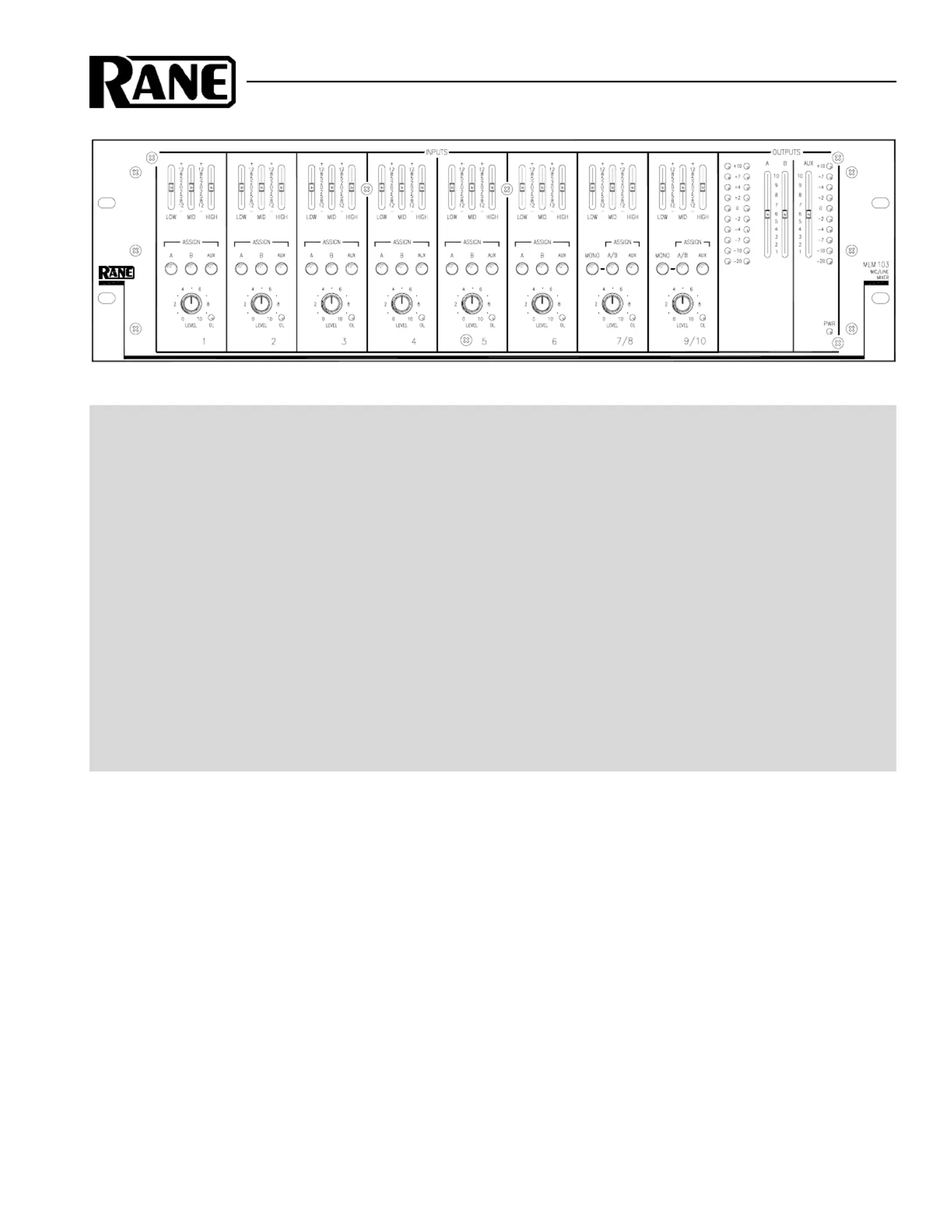

Manual-1

MLM 103

MIC/LINE MIXER

OPERATORS MANUAL

WEAR PARTS:This product contains no wear parts.

MLM 103 CONNECTION

INPUTS

The MLM 103 has ten balanced Euroblock Inputs. Use

only shielded cable. For best noise rejection use two-conduc-

tor-plus-shielded wire, even for unbalanced operation.

Connect the non-inverting (positive) audio lines to the “+”

terminals, and the inverting (negative) lines to the “–”

terminals. Connect the shields to the “ground” terminals.

For those installations where the MLM 103’s internal

shield-to-chassis connection causes interference, connect the

shields directly to chassis PEM nuts directly above each pair

of Euroblock connectors. Be sure to bite through the paint

with the star washer and keep the shields wrapped around the

audio conductors as much as possible. For the “theoretical”

best ElectroMagnetic Interference (EMI) immunity, connect

the shields at both ends of the cables. (For more information

on connections, see RaneNote 110, “Sound System Intercon-

nection” later in this manual or on Rane’s web site.)

MONO INPUTS 1-6can accept either mic or line level

sources. When connecting line level signals, push the rear

panel button in for LINE. For mic signals, be sure the button

is in the MIC (out) position.

STEREO INPUTS 7/8 and 9/10accept line level stereo

and mono sources.

OUTPUTS

The MLM 103’s OUTPUTS (and DIRECT OUTPUTS)

are balanced. The same wiring conventions as the Euroblock

Inputs apply.

QUICK START

If you don't get any further, at least read this section to get the best gain structure out of the MLM 103.

INPUTS 1through 6may be microphone or line level. The choice between the two is made by setting the Input’s LINE

push-button on the rear panel.

Push the PHANTOM POWERbutton (when needed) for each pair of Inputs.

Using a screwdriver, adjust the TRIM for each Input so that the front panelOL LED illuminates only occasionally

during extreme peaks. The three-band Equalizer settings will influence this, so keep an eye on the OL when making EQ

adjustments. Now adjust the LEVEL for each Input.

Assign each Input to the desired Output by pushing any combination of the AB, , or AUX ASSIGN buttons.

INPUTS 7/8and 9/10are stereo line level Inputs.

Assign each stereo input to the desired output as follows:

When theA/B ASSIGN button is engaged and the MONO button is not engaged, INPUT 7 (or 9) is routed to the A

Output, while INPUT 8 (or 10) is routed to the B Output.

When the both the A/B ASSIGN and MONO buttons are engaged, both Inputs of 7/8 (or 9/10) will route to both the A

and B Output.

The AUX ASSIGN button is always a mono mix of the stereo channel.
