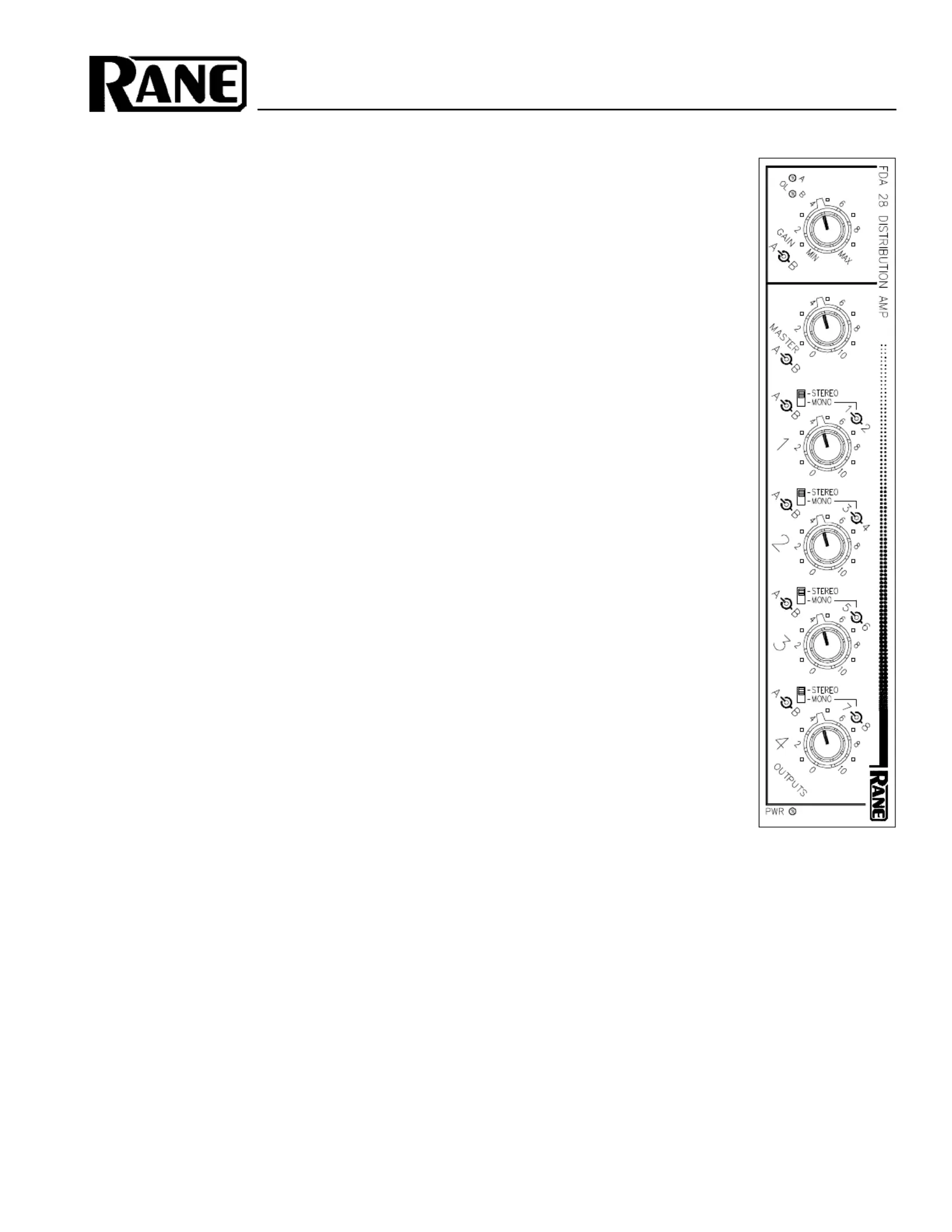

OPERATING / SERVICE MANUALFDA 28

DISTRIBUTION

AMPLIFIER

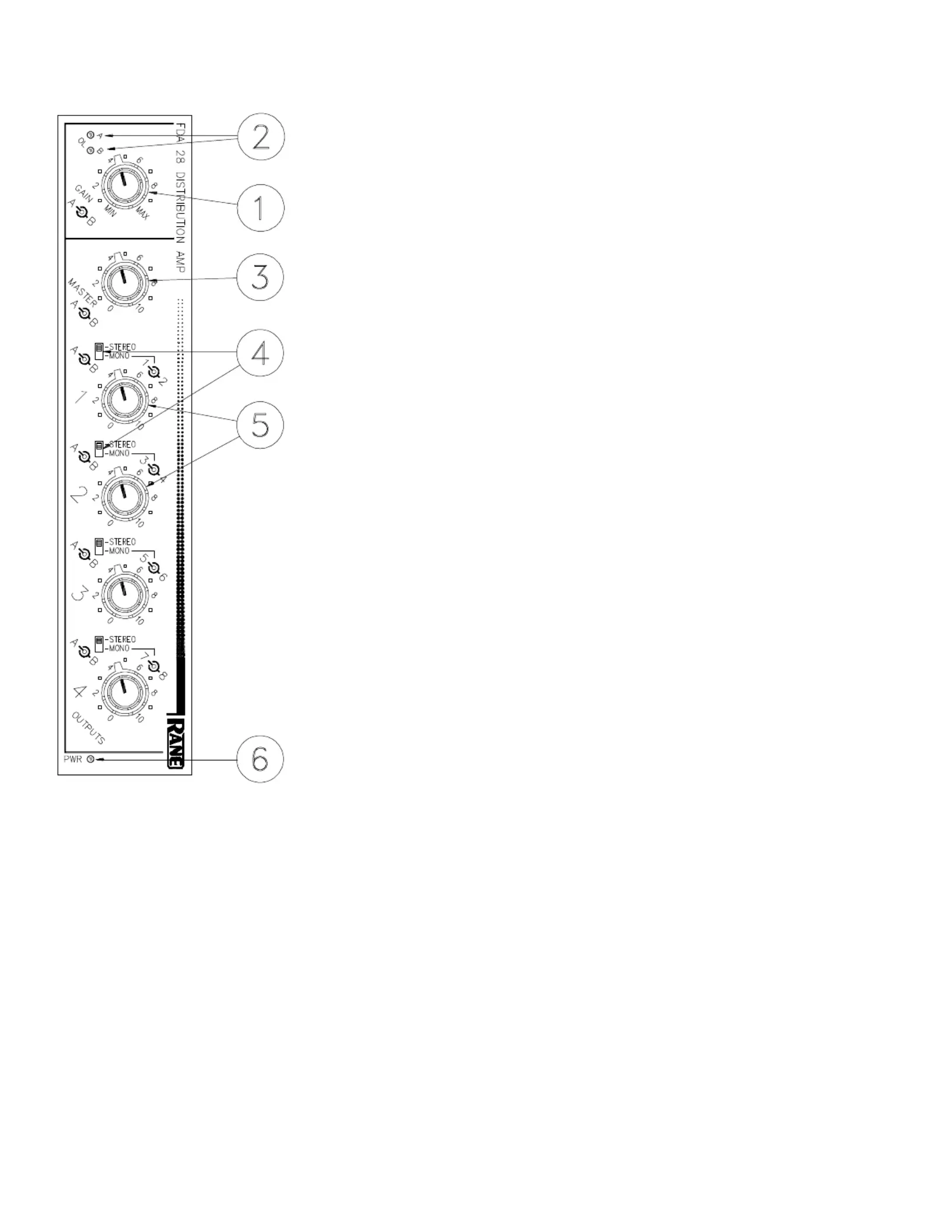

QUICK START

This section is provided as a convenience for those in a rush. If you are experienced with this

unit or other Rane Flex modules, these few words should help refresh your memory.

Inputs may be microphone or line level. The choice between the two is made by setting the

pushbuttons on the rear of the unit near each Input. Follow the silkscreening for proper wiring

hookup. Choose between chassis, signal ground or open for shield connection.

Signal for the Outputs is sourced either before or after the A and B MASTERlevel controls.

The switches which determine this are located within the confines of the unit’s covers. All FDA

28s are shipped from the factory with the internal switches in the POST fader position.

Once Inputs and Outputs are satisfactorily connected, set the Input GAINs as high as possible

without causing the A and BOverLoad indicators to illuminate steadily for high input levels. If 1

x 8 Mono operation is required, use only one Input and set all STEREO/MONO switches to the

MONOposition. If 1 x 4 STEREOoperation is chosen, all switches should be in the opposite

position. Mix settings as each application demands.

NEVER CONNECT ANYTHING EXCEPT AN APPROVED RANE POWER SUPPLY

TO THE RED THING THAT LOOKS LIKE A TELEPHONE JACK ON THE REAR OF

THE FDA 28.This is an AC input and requires special attention if you do not have a power

supply EXACTLY like the one that was originally packed with your unit. See the full explana-

tion of the power supply requirements elsewhere in this manual.

SYSTEM CONNECTION

When connecting the FDA 28 to other components in your system for the first time, leave the

power supply for last. This gives you a chance to make mistakes and correct them without damage

to your fragile speakers, ears and nerves.

INPUTS. The two Inputs on the FDA 28 are balanced. They may also be used in an unbalanced

configuration. Use only shielded cable for Inputs. This wire should always be two-conductor plus

shield, even for unbalanced operation. Balanced Inputs should be connected to both the “+” and “–

”terminals. Tie the shield to either chassis ground for normal use, or to signal ground when using

Phantom Power (required). A neutral ground is not necessary (except when using Phantom Power).

For unbalanced use, connect the hot side of the input cable to “+” and ground to signal ground. If

the input is coming from another piece of equipment in the signal path, connect the shield only at

the receiving end to help prevent ground induced hum. If a microphone is being connected to the

unit, the shield may be connected to the case of the mic as well as to the ground terminal on the

unit.

OUTPUTS.The FDA 28s Outputs are balanced. The same wiring conventions as the Inputs

apply, with one exception. Unbalanced Outputs require tying the “–” Output to Signal Ground.
