Pagina 1/3

INSTRUKCJA MONTAŻU/ASSEMBLY
POLSKI/ENGLISH
Kod / Code: AWO654
Nazwa / Name: Uniwersalna obudowa TUN-4 485x365x145
Universal enclosure TUN-4 485x365x145
Obudowa metalowa: teletechniczna - uniwersalna
Metal casing: telecommunication - universal
IM654
Wydanie: 4 z dnia 17.03.2021
Zastępuje wydanie: 3 z dnia 20.09.2017
1. Przeznaczenie/Application:
Ze względu na swoją konstrukcję obudowa TUN 4 może być element integrujący elementy i - wykorzystana, jako
urządzenia instalacji RTV/SAT (multiswitch`e, wzmacniacze, rozgałęźniki i odgałęźniki), jak również może być stosowana
do montażu urządzeń innych systemów tj. systemy CCTV, KD, SSWiN, automatyki itd.
Due to its design, TUN-4 enclosure can be used as an element integrating elements and devices of RTV / SAT
installations (multiswitches, amplifiers, splitters and taps), it also can be used to mount devices of other systems, i.e.
CCTV systems, access control systems, I&HAS, automation systems, etc.
2. Opis produktu/Product description
Obudowa posiada płytę montażową (sklejka), do której w łatwy i szybki sposób można za pomocą wkrętów
zamontować urządzenia. Obudowa wyposażona jest w zamek na klucz o tym samym kodzie MR027. Do obudowy można
zamontować dodatkowe elementy dystansujące (4szt / dołączone do obudowy) Taki dystans 14mm od ściany umożliwia -
swobodne doprowadzenie p rzewodów do urządzeń zamontowanych w obudowie.
Najważniejsze cechy obudowy:
- obudowa wykona z blachy stalowej malowanej farbą poliestrową
- możliwość szybkiego demontażu drzwiczek (w celu łatwiejszego montażu urządzeń)
- sklejka wodoodporna
- sklejka łatwo demontowana (zdjęcie sklejki bez konieczności demontażu całej obudowy ze ściany)
- - przepusty do wybicia (prostokątne podejście z korytkami kablowymi 90x40mm)
- możliwość demontażu dystansów
- duża liczba otworów wentylacyjnych w celu lepszego odprowadzenia ciepła
The housing has a mounting plate (plywood) for easy and quick mounting of devices using screws. The enclosure
is fitted with a key lock with the same code MR027. Additional 14 mm spacers, wich are included (4 pcs), can be –
mounted to enclosure and allow easy entry cables to devices mounted in enclosure.
Key features of the enclosure:
- enclosure is made of steel sheet painted with polyester paint
- the possibility for quick disassembling the door (for easier installation of equipment)
- waterproof plywood
- easily removable plywood (removing plywood without removing enclosure from wall)
- knockouts (rectangular - for cable trays 90x40mm)
- the possibility of disassembling the distances
- a large number of ventilation holes in order to improve heat dissipation

2
3 /Mounting:. Montaż
Obudowa przeznaczona jest do montażu przez wykwalifikowanego posiadającegoinstalatora, odpowiednie
(wymagane i konieczne dla danego kraju) zezwolenia i uprawnienia do ingerencji w instalacje niskonapięciowe.
Obudowa (+PCB) powinna być montowana w pomieszczeniach zamkniętych, o normalnej wilgotności powietrza
(RH=90% maks. bez kondensacji) i temperaturze z zakresu - 10°C do +40°C.
The enclosure should be mounted by a qualified installer, holding relevant permits and licenses (applicable and
required for given country for low-voltage installations. The unit should be mounted in confined spaces, a )
in accordance with normal relative humidity (RH=90% maximum, no condensation) and temperature range from -
10°C up to +40°C.
4. Parametry techniczne/Technical parameters
PARAMETRY TECHNICZNE/
TECHNICAL PARAMETERS
Obudowa: IP / Enclosure: IP
IP 20
Temperatura pracy/
Operation temperature
- 10ºC÷40ºC
Wilgotność względna RH – max./
Relative humidity RH max. –
90 [%]

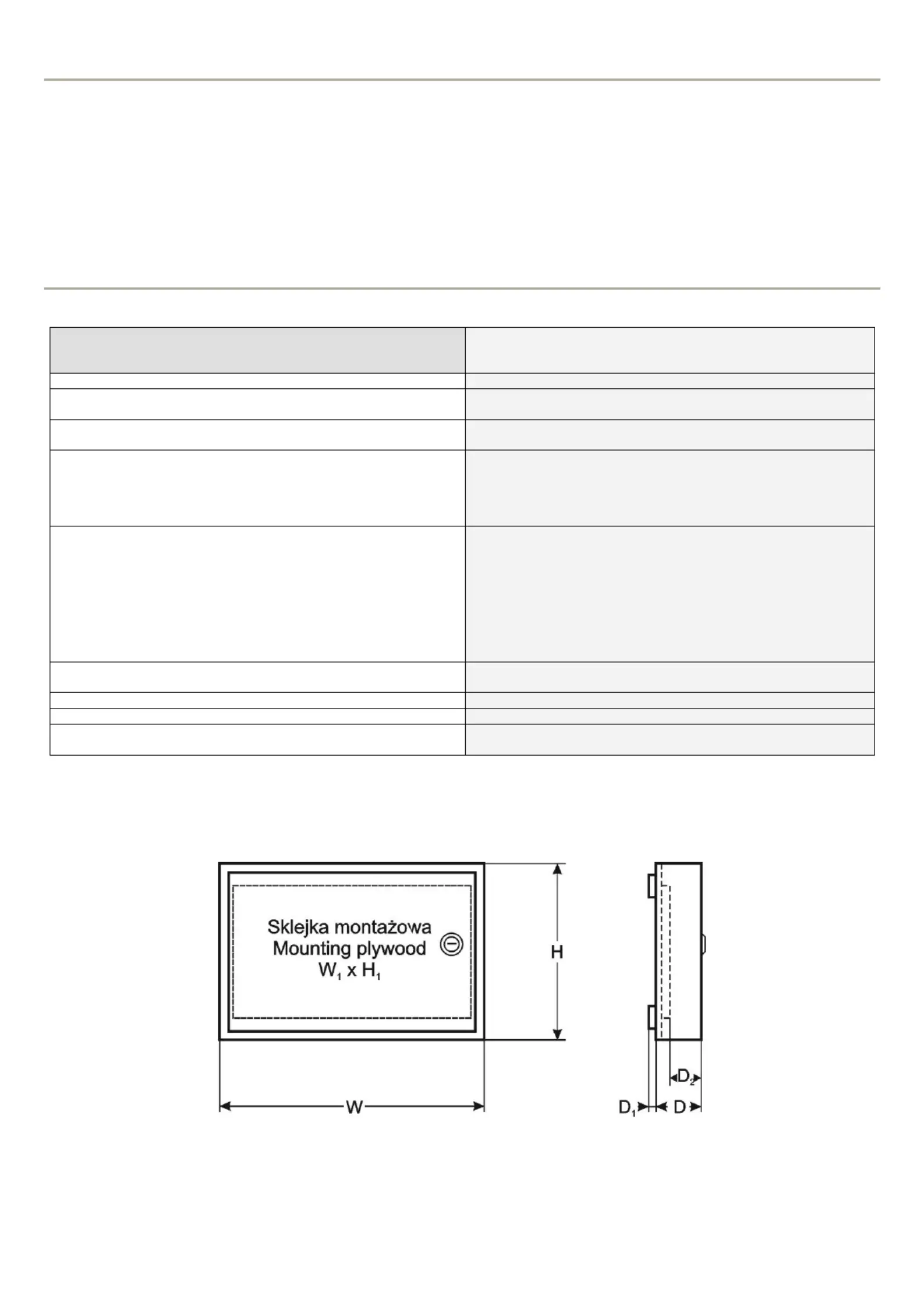

Wymiary zewnętrzne obudowy /
External dimensions of the enclosure
Wymiary zewnętrzne czołówki /
External dimensions of the front panel
Głębokość robocza / Working depth
W=485, H=365, D+D =145+14 [+/-2 mm] 1
W H =260 [+/-2 mm] 1=470 1
D =120 [+/-2 mm] 2
Wykonanie /
Finish
Blacha DC01,
Zabezpieczenie antykorozyjne: farba poliestrowa,
zastosowanie przemysłowe, kolor RAL9003 (biały)
Sklejka montażowa grubość 6mm (wodoodporna)
/
Sheet metal DC01
Corrosion protection: polyester paint, industrial use,
color RAL9003 (white)
Assembly plywood 6mm thick (waterproof)
Zastosowanie /
Application
Do wewnątrz / natynkowa
Indoor / surface-mounted
Waga netto / Net weight
~4.7 [kg] 0
Waga brutto / Gross weight
~5.00 [kg]
Deklaracje, gwarancje /
Declarations, warranty
CE, 3 lata od daty produkcji /
CE, 3 years from production date

3

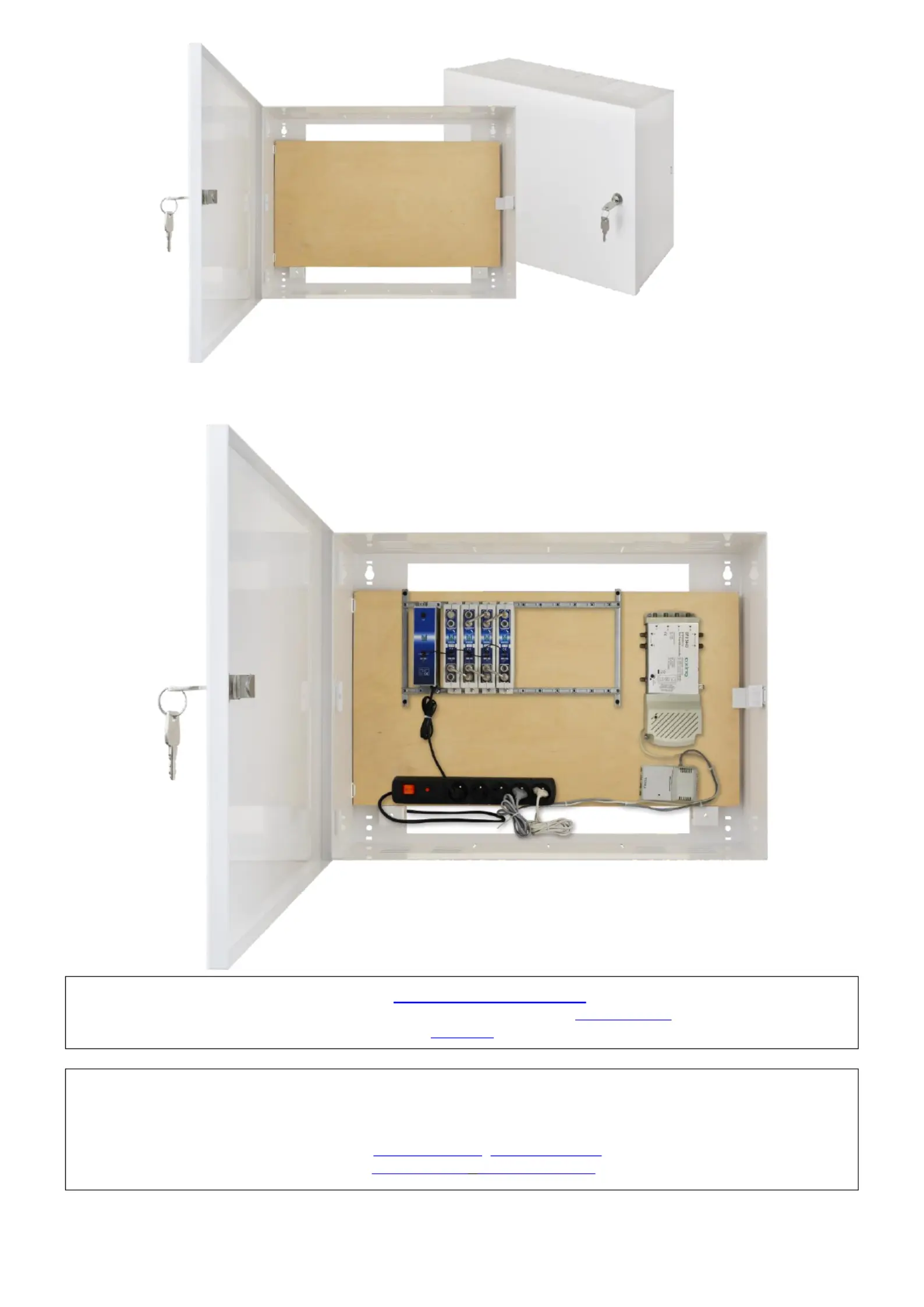

Przykładowe zastosowanie dla obudów serii TUN Sample applications for enclosures of the TUN series. /
Ogólne warunki gwarancji
Ogólne warunki gwarancji dostępne na stronie www.pulsar.pl
ZOBACZ
Pulsar sp. j.
Siedlec 150, 32- 744 Łapczyca, Poland
Tel. (+48) 14-610- -40, Fax. (+48) 14-610- - 19 19 50
e-mail: biuro@pulsar.pl, sales@pulsar.pl
http:// www.pulsar.pl, www.zasilacze.pl
