Single Chamber Toaster
Model 464-B
464-501revB_EN Printed in USA 01/12 © 2012
Operation
Manual
DIsplay
Product Buttons
Crumb Tray
Spatula
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation, not to
exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts and labor. This equipment is portable;
charges for on-location service (e.g., trip charges, mileage) are only
included in the first 30 days of this warranty.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion to
correct voltage is the customer’s responsibility.
This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty period.
TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Programming Toast Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Programming Alarm Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exploded View and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
P
R
I
NC
E
C
A
STL
E
LLC
W O R L D W I D E
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Printed in USA 01/12 © 2012 2 464-501revB_EN

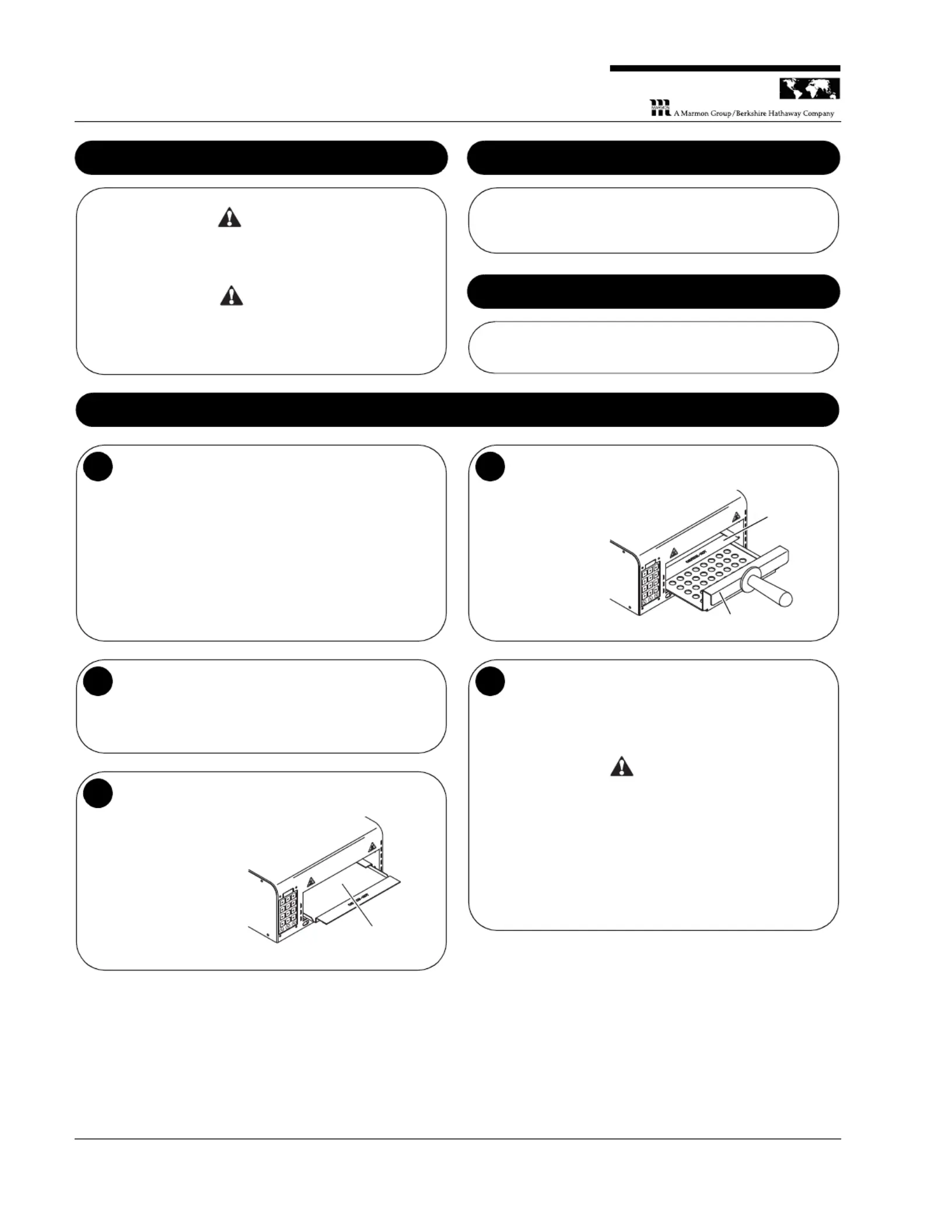

Single Chamber Toaster
464-B
P
R
I
NC
E
C
A
STL
E
LLC
W O R L D W I D E
Safety Information
Indicates information important to the proper operation of the
unit. Failure to observe may result in severe bodily injury or
death.
Indicates information important to the proper operation of the
unit. Failure to observe may result in damage to the equipment.
NOTE: Damage resulting from any misuse may result in a voided
Warranty at the sole discretion of the manufacturer.
WARNING
CAUTION
Important
Prince Castle reserves the right to change specifications and
product design without notice. Such revisions do not entitle the
buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Electrical Specifications
Model No. Volts Watts Hz Phase Plug
464-B 208 – 240 3030 – 4030 50/60 Single L6-30P
Installation
1
Remove the unit from the carton and inspect for signs of damage. If
there is damage to the unit:
• Notify the carrier within 24 hours of delivery.
• Save carton and packaging materials for inspection purposes.
• Contact your local dealer, or if purchased directly, the Prince Castle
Sales Department at 1-800-722-7853 or 630-462-8800 to arrange
for a replacement unit.
NOTE: A special packing foam is provided between the heating
elements and the protective wire. Be sure to remove this foam prior to
operating toaster.
2
Position the Single Chamber Toaster in a well-ventilated area.
NOTE: When installing this unit, the ambient temperature at the site
should not exceed 100°F (37.8°C).
3
Unwrap crumb tray and
spatula. Install crumb tray
on toaster by sliding it into
the brackets located on
both sides of the heating
compartment.
Crumb Tray
4
Wash, rinse and sanitize
spatula prior to use.
Install spatula by sliding
it in beneath crumb tray.
Spatula to be located in
this slot when not
toasting product.
Spatula
Crumb
Tray
5
Insert the three-pin power cord plug into a 208 – 240 VAC 50 – 60 Hz
30A single phase circuit. Once inserted, twist plug to the right and lock
into position.
All electrical connections must be in accordance with local
electrical codes and any other applicable codes.
Plug the unit into an applicable electrical receptacle.
The power cord on this product is rated for a maximum surface
temperature of 194°F (90°C). If the cord comes into contact with
any heated surface, it may be damaged and/or cause damage to
the product and/or injury to the user.
If supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons in
order to avoid a hazard.
WARNING
464-501revB_EN 3 Printed in USA 01/12 © 2012
Single Chamber Toaster
464-B
P
R
I
NC
E
C
A
STL
E
LLC
W O R L D W I D E
Operation
The following toast times were preset at the factory prior to shipment.
Adjustments may be necessary due to variable cut or moisture content
of the product (see Programming to adjust).
Recommended Toast Times
This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or lack of experience and knowledge unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Button Product Toast
Time
(sec.)
Button Product Toast
Time
(sec.)
#1 Bakery Style :55 #6 Jumbo :55
#2 Roll :60 #7 Regular :45
#3 Tortilla :20 #8 Wheat :50
#4 Croissant :30 #9-12 Unassigned :35
#5 Biscuit :55
WARNING
1
While the toaster is OFF (the display is off), press the ON/OFF button
once to turn it ON. The display will show the software version for
3 seconds.
NOTE: While the toaster is ON (but not being programmed), pressing
the UP Arrow button will display the current temperature of the heater
probe.
2
Wait approximately 10 minutes while
the toaster warms up. The toaster
will display LLL while it is warming
up. After warming, the display will
show RDY to indicate it is ready for
use.
464-007
464-007
464-007
464-007464-007 REV C
REV C
REV C
REV CREV C
ON
OFF
REGULAR
7
BAKERY
STYLE
1
JUMBO
6
BISCUIT
5
CROISSANT
4
TORTILLA
3
ROLL
2
WHEAT
8 9
10 11 12
rdy
3
Load the spatula with
product above the
crumb tray and slide
the spatula into the
toasting chamber. Max
3 buns.
4
To begin a toast cycle,
press the desired product
button.
The LED associated with
this product will light up
green, and the toaster’s
display will change from
RDY to the product toast
time and begin to count
down.
NOTE: To cancel an active
toast cycle, press the
product button three times
within 3 seconds. The LED
will go out and the display
will stop counting down.
464-007
464-007
464-007
464-007464-007 REV C
REV C
REV C
REV CREV C
ON
OFF
REGULAR
7
BAKERY
STYLE
1
JUMBO
6
BISCUIT
5
SSANT
4
TORTILLA
3
ROLL
2
WHEAT
8 9
10 11 12
3 0
:
5
At the end of the toast cycle, the product
LED will flash green, an audible alarm
will sound and the display will read END.
The alarm will stop after pressing any
product button, the UP Arrow button or
the DOWN Arrow button. The display will
revert back to RDY and the LED will turn
off.
464-007
464-007
464-007
464-007464-007
CROISSANT
REV C
REV C
REV C
REV CREV C
ON
OFF
REGULAR
7
BAKERY
STYLE
1
JUMBO
6
BISCUIT
5
4
TORTILLA
3
ROLL
2
WHEAT
8 9
10 11 12
e n d
6
To turn the toaster OFF, when
no toast cycle is active, press
and hold (for 2 seconds) the
ON/OFF button.
464-007
464-007
464-007
464-007464-007 REV C
REV C
REV C
REV CREV C
ON
OFF
REGULAR
7
BAKERY
STYLE
1
JUMBO
6
BISCUIT
5
CROISSANT
4
TORTILLA
3
ROLL
2
WHEAT
8 9
10 11 12
rdy
