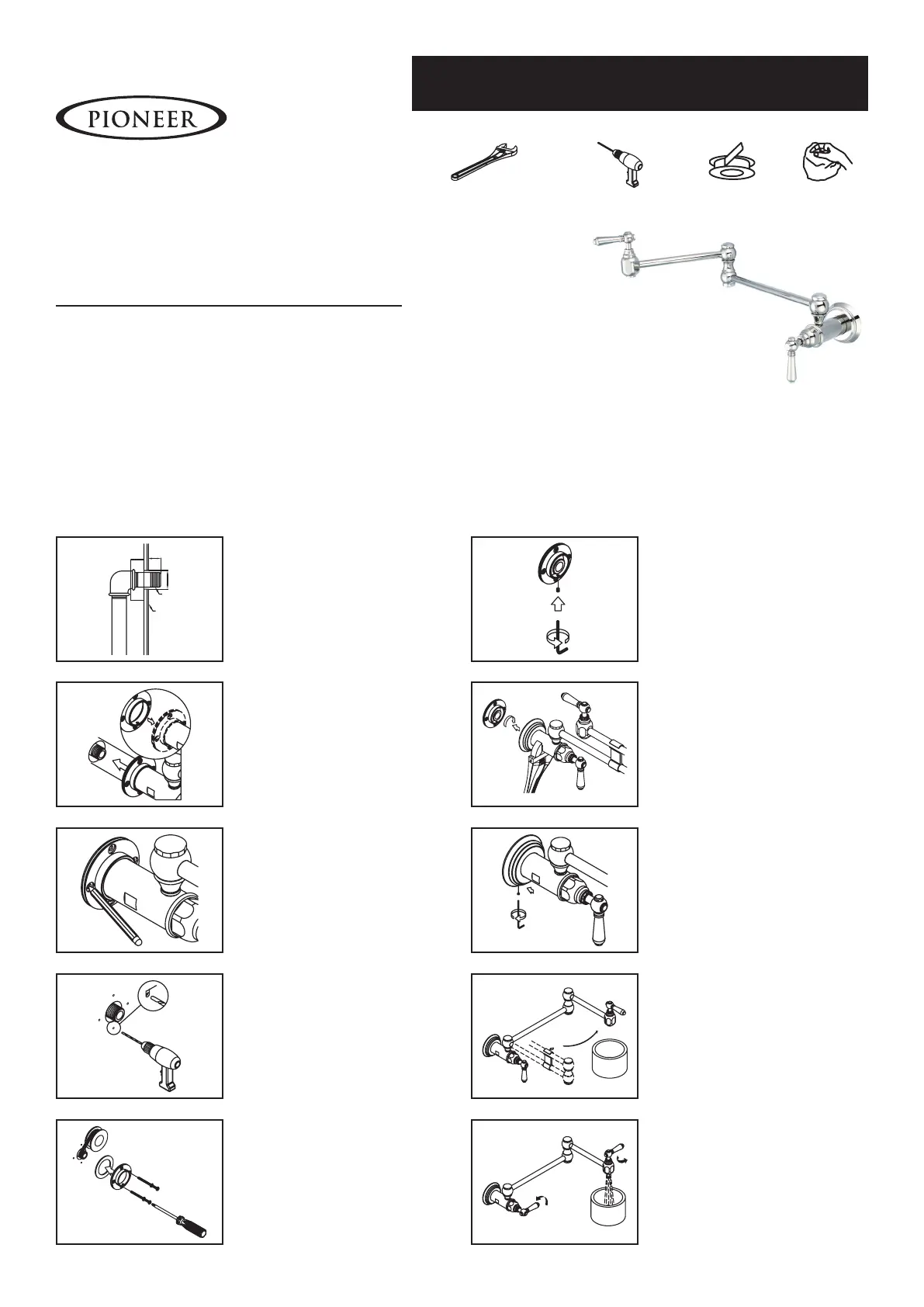

INSTALLATION

Tools:

Adjustable WrenchPower DrillTeon TapeRags

Model Number: 2AM600, 2MT600

Warnings and Notes:

Check with local plumbing code requirements before installation.

This product should be installed by a local listed plumber.

Do not use plumbers putty on threads.

Installation Steps:

Wallmount Pot Filler

32mm

[1 1/4"]

1/2" IPS

Finish Wall

13mm

[ 1/2"]

(1)Conrm the 1/2” IPS/NPT threaded inlet

pipe nipple must be kept with a length of 1/2”

from the nished wall.

PIONEER INDUSTRIES, INC.

3325 S. Gareld Ave

Commerce, CA 90040

(800) 338-9468

www.pioneerind.com

(7) Carefully screw the pot-ller into inlet pipe

nipple using adjustable wrench to fully tighten

the pot ller. Ensure the notches on the faucet

align with the 3/32” Allen screw.Level the pot

ller. Tighten the 3/32” Allen screw.

(2) After wall is nished install the pot ller to

the 1/2” IPS/NPT threaded inlet pipe nipple.

Do not fully tighten.

(3) Level the pot-ller. Mark the drilling hole

location on the nished wall. Space remove

the pot ller.

2.4mm

[3/32"]

(4) Drill the four 3/32” holes on the premarked

location

(6) Remove the 3/32” Allen screw

(5) Apply Teon tape to thread end of inlet

pipe nipple before installing the mounting

bracket. Put the mounting washer on the

wall and drill the 3/32” hole on the same

location as wall. Ensure the mounting washer

is behind the mounting bracket to form the

watertight seal. Install the mounting bracket

with the mounting screws supplied with faucet.

Tighten the mounting screws.

(8) Place the escutcheon in correct position.

Tighten the 1/16” Allen screw

(9) Make sure the pot ller spout swivels

smoothly. Place a bucket underneath of the

pot-ller. Remove the aerator.

(10) Turn on inlet water supply. Make sure

all the connections are secure. Open both

handles. Flush and allow water to run at full

ow for at least one minute. Turn off water and

replace the aerator.
