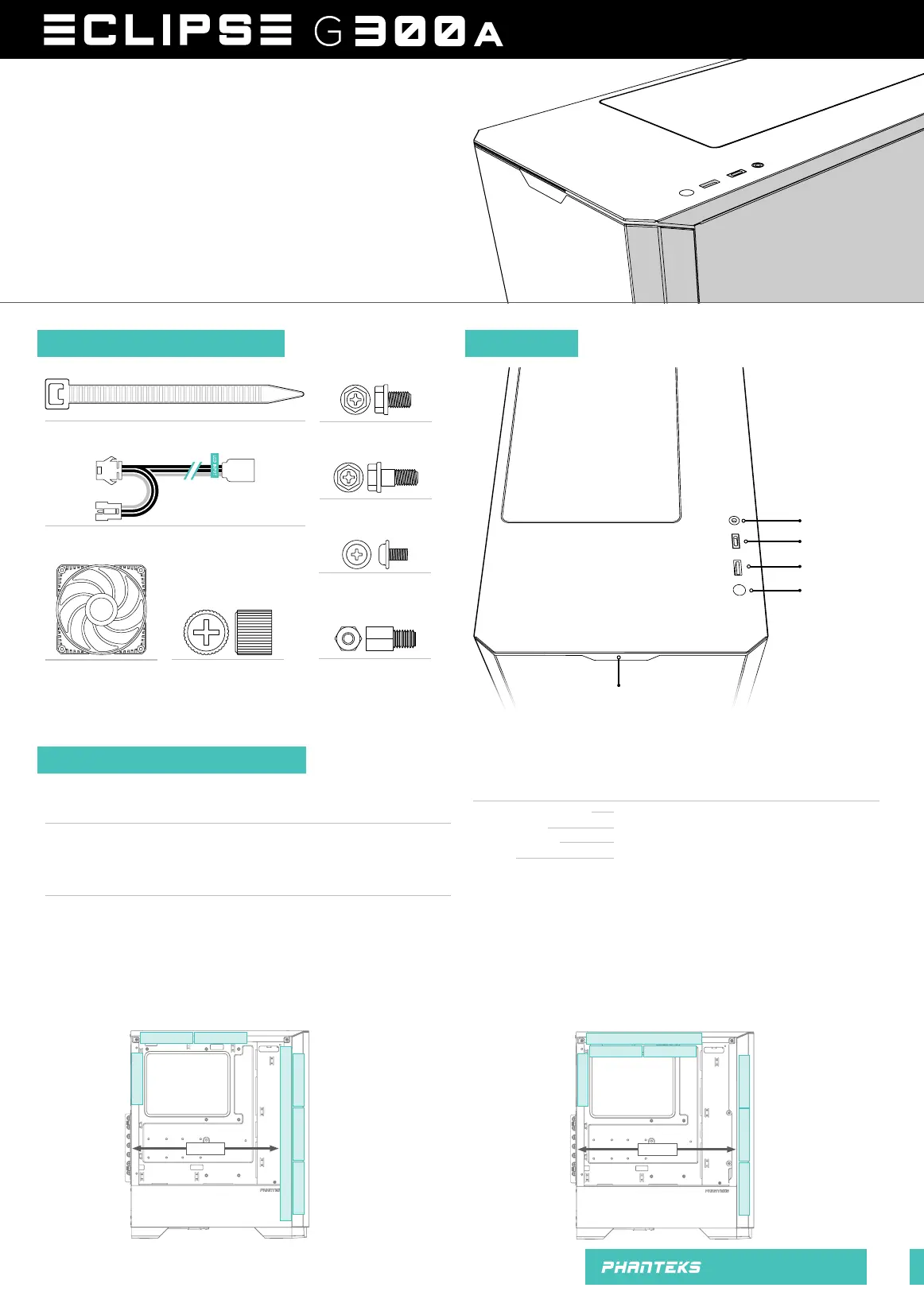

Pagina 1/4

up to 360 up to 240

INSTALLATION GUIDE

INSTRUCTIONS

Thank you for choosing Phanteks. Please take a moment to

carefully go through the manual. This manual will walk you

through all of the features the Eclipse G300A has to offer and

installation steps to build a full system.

Phanteks will not take responsibility for any damages incurred due to incorrect

installation or usage of this product.

VERSION 1.0

| www.phanteks.com

USB 3.0 TYPE-A

USB 3.0 TYPE-C

AUDIO/MIC

RESET BUTTON

POWER BUTTON

SSD + MOTHERBOARD

SCREW

18x

MB STAND-OFF

PSU SCREW

HDD SCREW

STAND-OFF TOOL

D-RGB 120MM FAN

1x pre-installed DBK01

3x pre-installed DBK02

ZIP TIE

360 FRONT AIO COOLER 240 TOP AIO COOLER

FRONT TOP REAR

CLEARANCE

FANS

RADIATOR

120mm

3x 2x 1x

up to 120

140mm

CPU cooler height

GPU length

Powersupply

E-ATX

160 mm

365 mm with front fans

210 mm

up to 260 mm width

AIO 240

AIO 360

Because of the special front bracket, the front supports a radiator

up to 360. When using this option, the maximum GPU length is

335mm.

The top supports a radiator up to 240. When using this option,

the maximum GPU length is 365mm with 3 front 120mm fans.

120MM

This manual is for the following models:

PH-EC300GA_DBK01

PH-EC300GA_DBK02

Satin Black | 1x D-RGB Fan Back

Satin Black | 3x D-RGB Fans Front

INCLUDED ACCESSORIES FRONT I/O

FAN & RADIATOR SUPPORT

335mm

365mm

D-RGB MOTHERBOARD ADAPTER

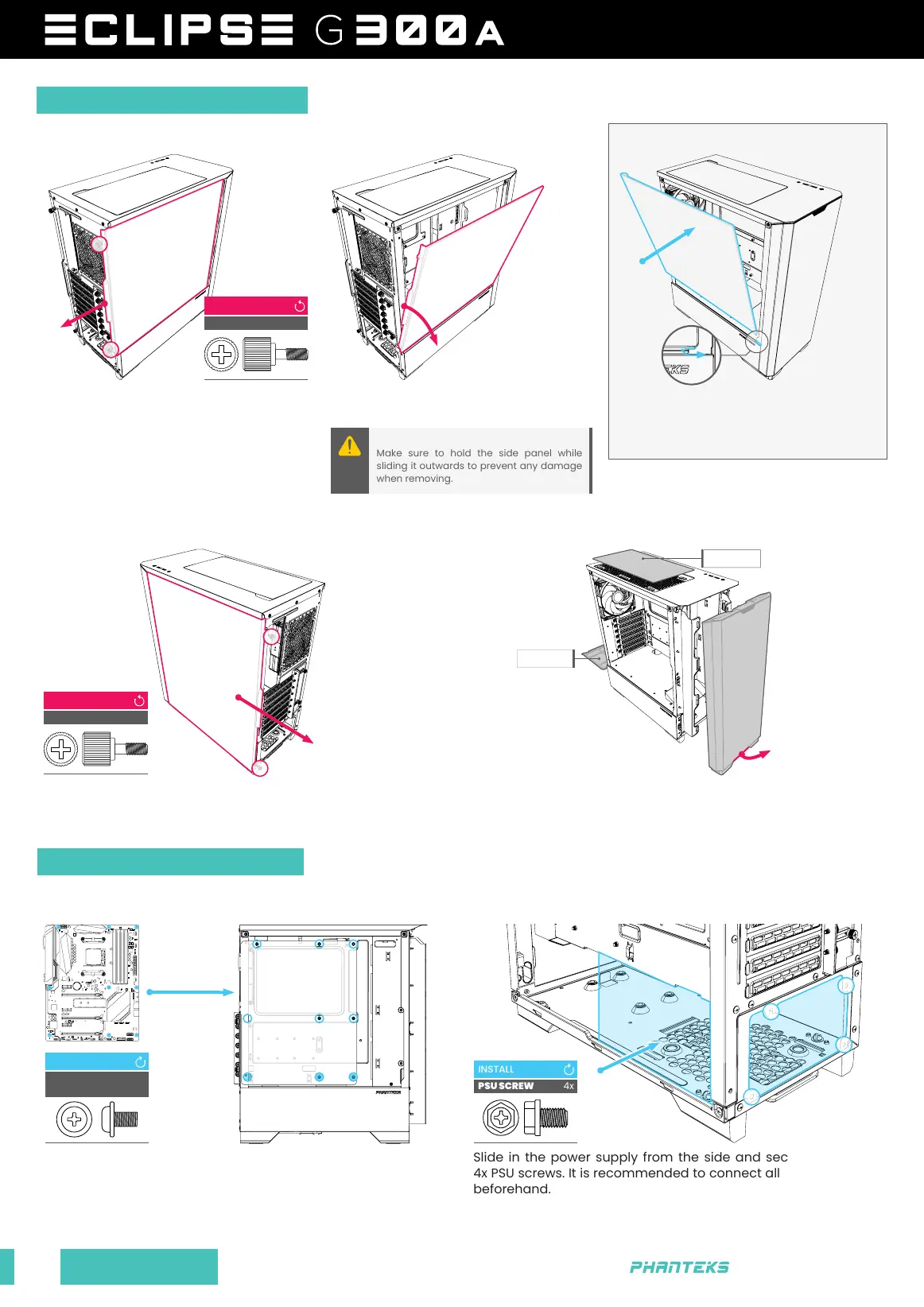

INSTALLATION GUIDE

LEFT SIDE PANEL REINSTALL SIDE PANEL

MOTHERBOARD POWERSUPPLY

RIGHT SIDE PANEL FRONT PANEL & DUST FILTERS

Loosen the 2 thumb screws and slide to

remove the tempered glass side panel.

Remove the glass panel, set it aside in a

safe location to prevent damage.

When returning the left side panel, align

the bottom right with the slit in the chassis.

Slide the panel forward and secure with 2

thumb screws at the back.

Remove front panel by pulling the panel from below.

Install the ATX motherboard using 9x motherboard screws.

For M-ATX Motherboards follow the motherboard instructions to

move the stand-offs to the correct position.

Slide in the power supply from the side and secure it with the

4x PSU screws. It is recommended to connect all needed cables

beforehand.

Loosen the 2 captive thumb screws and slide to remove the right

side panel.

| www.phanteks.com

THUMBSCREW

REMOVE

THUMBSCREW

REMOVE

MOTHERBOARD

SCREWS

INSTALL

PSU SCREW

INSTALL

REMOVE EXTERNAL PANELS

HARDWARE INSTALLATION

Make sure to hold the side panel while

sliding it outwards to prevent any damage

when removing.

CAUTION

PSU FILTER

TOP FILTER

PSU

Product specificaties

Merk:	Phanteks
Categorie:	Computerbehuizing
Model:	Eclipse G300A
Kleur van het product:	Zwart
Gewicht:	5560 g
Breedte:	200 mm
Diepte:	400 mm
Hoogte:	465 mm
Gewicht verpakking:	6820 g
Breedte verpakking:	280 mm
Diepte verpakking:	513 mm
Hoogte verpakking:	480 mm
Soort:	PC
Vormfactor:	Midi Tower
Aan-/uitknop:	Ja
Verlichtingslocatie:	Back, Case fans
Materiaal:	Steel, Tempered glass
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	1
Kleur van de verlichting:	Blue, Green, Red
Combo koptelefoon/microfoon port:	Ja
Reset button:	Ja
Vermogenstoevoer inclusief:	Nee
Aantal 2.5" bays:	3
Aantal 3.5" bays:	1
Ondersteunde HDD-groottes:	2.5, 3.5 "
Aantal uitbreidingssleuven:	7
Aantal USB-Type-C-poorten:	1
Belichting:	Ja
Vermogenstoevoer locatie:	Bodem
Supported motherboard form factors:	ATX, Micro ATX, Mini-ITX
Zijraam:	Ja
Geharde glaspla(a)t(en):	Ja
Maximum CPU cooler hoogte:	162 mm
Maximum grafische kaart lengte:	390 mm
Maximum PSU lengte:	220 mm
Maximale aantal ventilators voorkant:	3
Voorste ventilators ondersteunende diameters:	120 mm
Maximaal aantal ventilators bovenkant:	2
Bovenste ventilators ondersteunende diameters:	120 mm
Maximaal aantal ventilators achterkant:	1
Achterkant ventilators ondersteunende diameters:	120 mm
Geïnstalleerde ventilators achterkant:	1x 120 mm
Garantieperiode:	5 jaar
Ondersteunde afmetingen voorste radiator:	360 mm
Ondersteunde afmetingen achterste radiator:	120 mm
Ondersteunde afmetingen bovenste radiator:	240 mm
