Pagina 1/2

INSTALL:

CLEARANCE REAR

TOPFRONT

Thank you for choosing Phanteks. Please take a

moment to carefully go through the manual.

Phanteks will not take responsibility for any

damages incurred due to incorrect installation or

usage of this product.

This manual supports the following models:

PH-EC500ATG_BK (2x 140 mm Black Fans)

PH-EC500ATG_DBK (3x 140 mm D-RGB Fans)

PH-EC500ATG_DWT (3x 140 mm D-RGB Fans)

COLO RS

2 SEC

MODE S

SOLID

BREATHING

RADA R

SPARKL E

RAINBOW

PRESS AND HOLD THE MODE BUT TO N TO TURN OFF LED S

PRESS AGAIN TO TURN ON

Digital-RGB CONTROLS (P500A_D MODEL)

INTRODUCTION INCLUDED ACCESSORIES

P500A INCLUDED ACCESSORIES:

PRODUCT OVERVIEW

ECLIPSE P500A

INSTALLATION GUIDE V1.0

OPTIONAL UPGRADES

ECLIPSE P500A

a. INSTALL 4X DUAL SYSTEM STAND-OFFS ON

THE BOTTOM SIDE OF THE ITX BRACKET

c. CONNECT THE POWER SWITCH & POWER LED

CONNECTOR TO THE MOTHERBOARD

e. INSTALL THE ITX BRACKET

WITH 4x ITX BRACKET SCREWS

d. REMOVE THE DUAL SYSTEM

COVER FROM THE CHASSIS

English

1. Headphone / Microphone

2. USB 3.0

3. USB-C Gen 2

4. D-RGB Color

(P500A-D only)

5. D-RGB Mode

(P500A-D Only)

6. Reset Button

(P500A Only)

7. Power Button

Francais

1. Casque / Microphone

2. USB 3.0

3. USB-C Gen 2

4. D-RGB Color

(P500A-D Only)

5. D-RGB Mode

(P500A-D Only)

6. Bouton de réinitialisation

(P500A Only)

7. Bouton d’alimentation

Deutch

1. Kopfhörer / Mikrofon

2. USB 3.0

3. USB-C Gen 2

4. D-RGB Color

(P500A-D Only)

5. D-RGB Mode

(P500A-D Only)

6. Reset-Knopf

(P500A Only)

7. Ein-/Aus Schalter

Espanol

1. Auricular / Micrófono

2. USB 3.0

3. USB-C Gen 2

4. D-RGB Color

(P500A-D Only)

5. D-RGB Mode

(P500A-D Only)

6. Botón de reinicio

(P500A Only)

7. Botón de encendido

ECLIPSE P500A BLACK ECLIPSE P500A DIGITAL-RGB

FRONT I/O FEATURES

a. INSTALL RISER CABLE WITH 2x

RISER CABLE SCREWS.

b. INSTALL VERTICAL GPU MOUNT

WITH 2x HEX SCREWS

f. (OPTIONAL) IF USING THE X16 RISER CABLE TO INSTALL A VERTICAL

GPU TO SECOND SYSTEM, MOVE THE VELCRO TIE FOR EASY

RISER CABLE ROUTING

STEP 9.

VERTICAL GPU MOUNT - OPTIONAL

STEP 10.

INSTALLING A DUAL SYSTEM - OPTIONAL

2x 140 mm Black or

3x 140 mm D-RGB

3x 2.5” SSD Brackets

(Pre-Installed)

2x 3.5” HDD Brackets

LOOSEN:

STEP 1.

REMOVING CHASSIS PANELS

a. OPEN THE LEFT SIDE PANEL,

THEN LIFT UP THE PANEL

TO REMOVE IT.

b. LOOSEN THE THUMB SCREWS ON

THE RIGHT SIDE PANEL THEN

SLIDE THE PANEL OFF.

c. REMOVE FRONT PANEL BY

PULLING ON THE PANEL

FROM BELOW

(RISER CABLE SOLD SEPERATELY PH-CBRS_FL22)

(REQUIRES ITX UPGRADE KIT PH-ITXKT_R01 AND THE REVOLT X POWER SUPPLY PH-P1#00PS)

b. INSTALL ITX MOTHERBOARD

ON BRACKET USING INCLUDED

MOTHERBOARD SCREWS

INSTALL:

120

FAN

140

FAN

120

RAD

140

RAD

120

FAN

140

FAN

120

RAD

140

RAD

120

FAN

140

FAN

120

RAD

140

RAD

CPU Cooler Height 190 mm

GPU Clearance 435 mm

Front Radiator Clearance 95 mm

Top Radiator Clearance 65 mm

INSTALL:

MOVE:

The GPU Mount has two

mounting positions. Position A

allows for better air cooling and

3-slot GPU cards.

(RISER CABLE SOLD SEPERATELY PH-CBRS_PR60)

REMOVE:

12x Thumb Screw

7x PSU Screw

8x Fan Screw

6x Case Screw 3x Riser Cable

Screw

4x Dual-

System Stando

8x HDD Screw Stando

Removal Tool

6x Zip Ties1x Vertical GPU Mount1x Anti-Sag Bracket

22x Motherboard

+ SSD Screw

1x Motherboard

Stando

CABLE CONNECTION

Diagram is a general overview.

For a more accurate overview of

your motherboard, please consult

that motherboards’ manual.

POWER LED

POWER SWITCH

NOT USED

HDD LED

RESET SWITCH

Power LED

a. CONNECT THE HD-AUDIO &

USB 3.0 CABLES

a. PLACE THE GPU ANTI-SAG BRACKET,

MAKE SURE TO INSTALL ALL GPU

& PCI CARDS BEFOREHAND

b. INSERT THE THUMBSCREWS

WITHOUT TIGHTENING THEM.

c. PRESS DOWN AND LOCK THE

THUMBSCREWS IN POSITION.

b. CONNECT THE FRONT I/O CABLES TO THE FRONT I/O HEADER ON THE

MOTHERBOARD SEE FRONT I/O HEADER DIAGRAM FOR GENERAL REFERENCE

ALL MODELS:

MOTHERBOARD FRONT I/O HEADER DIAGRAM

P500ATG_BK MODEL ONLY:

SATA

a. CONNECT THE SATA CABLE TO THE POWER SUPPLY

CONNECT MORE DRGB PRODUCTS

b. CONNECT DRGB CONNECTOR TO DRGB PRODUCTS c. CONNECT MOTHERBOARD DRGB ADAPTER TO THE

MOTHERBOARD

SYNC YOUR CASE LIGHTING TO THE MOTHERBOARD OPTIONAL

To DIGITAL-RGB Products

RAINBOW

ADDRESSABLE ADDRESSABLE

MOTHERBOARD

D-RGB H EADER

To D-RGB M otherboard (optional)

Compatible with:

HARDWARE INSTALLATION

INSTALL:

INSTALL THE MOTHERBOARD WITH 9x MOTHERBOARD SCREWS

MOUNTING POSITIONS

FOR M-ATX MOTHERBOARDS.

Plug in all cables you need for

your build into the power

supply rst before installing it

for easier installation

ECLIPSE P500A

REMOVE:

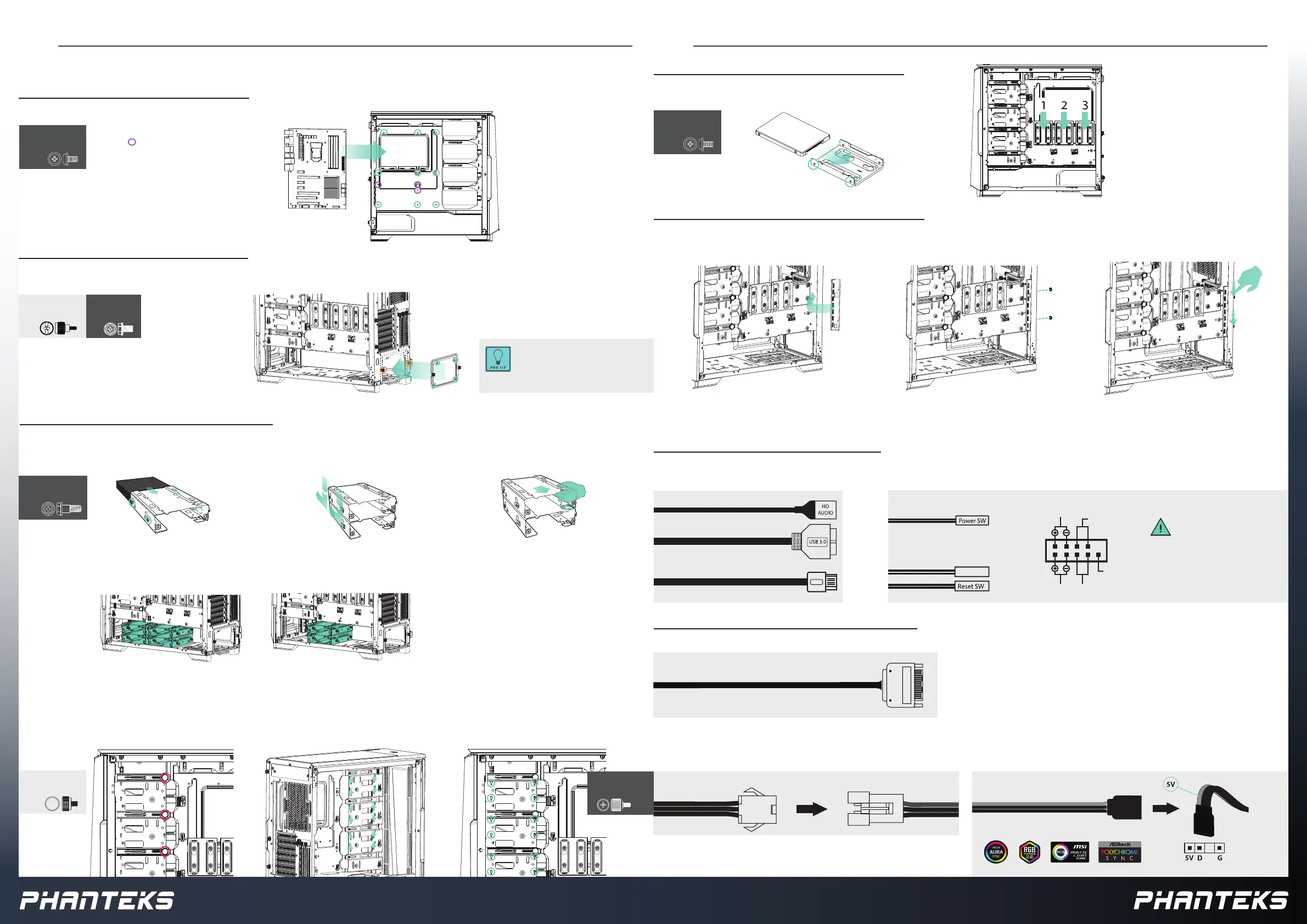

STEP 2.

MOTHERBOARD INSTALLATION

THE POWER SUPPLY IS INSTALLED IN THE REAR OF THE CHASSIS. LOOSEN THUMBSCREWS TO REMOVE PSU BRACKET. INSTALL PSU

TO BRACKET WITH 4x PSU SCREWS.

STEP 3.

POWER SUPPLY INSTALLATION

INSTALL THE SSD DRIVE WITH 4x SSD SCREWS

AND MOUNT INTO THE CHASSIS.

STEP 5.

STORAGE INSTALLATION - 2.5” SSD

STEP 6.

GPU ANTI-SAG BRACKET INSTALLATION

INSTALL:

POSITION “B” WON’T LIMIT PSU/FRONT RADIATOR CLEARANCE, POSITION “A” ALLOWS FOR FRONT FANS ONLY.

a. REMOVE THE CABLE COVER(S) TO

REVEAL THE HDD MOUNTS

a. INSTALL THE HDD DRIVE INTO ONE

PHANTEKS STACKABLE 3.5” HDD

BRACKET (2x INCLUDED)

b. STACK THE BRACKETS IF USING

MORE THAN ONE. IF NOT,

SKIP THIS STEP

c. TO REMOVE A TRAY FROM A

STACK, LIFT UP LATCH AND

PULL OUT

b. MOUNT THE (SINGLE/STACKED)

HDD BRACKETS IN POSITION.

c. SECURE WITH 2 THUMBSCREWS

STEP 4.

STORAGE INSTALLATION - 3.5” HDD

THE BOTTOM COMPARTMENT CAN HOUSE 4X STACKABLE HDD TRAYS. *2x Stackable HDD Trays are included.

THE MAIN COMPARTMENT CAN HOUSE 6X STACKABLE HDD TRAYS.

STEP 7.

POSITION A+C

195mm PSU Clearance

POSITION B

250mm PSU Clearance

Max Front Radiator Clearance

MOTHERBOARD CONNECTIONS

STEP 8.

DRGB LIGHTING  P500A DRGB ONLY

HDD

LOOSEN:

INSTALL:

USB-C

Product specificaties

Merk:	Phanteks
Categorie:	Computerbehuizing
Model:	Eclipse P500A
Kleur van het product:	Grijs
Gewicht:	8000 g
Breedte:	240 mm
Diepte:	505 mm
Hoogte:	510 mm
Gewicht verpakking:	10000 g
Breedte verpakking:	325 mm
Diepte verpakking:	610 mm
Hoogte verpakking:	610 mm
Soort:	PC
Vormfactor:	Midi Tower
Aan-/uitknop:	Ja
Geschikt voor:	Gamen
Verlichtingslocatie:	Voorkant
Audio-ingangen:	Ja
Audio-uitgang:	Ja
Materiaal:	Staal
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	2
Kleur van de verlichting:	Blue, Green, Red
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C:	1
SSD-vormfactor:	2.5"
Vermogenstoevoer inclusief:	Nee
Aantal 2.5" bays:	3
Aantal 3.5" bays:	10
Maximum aantal HDD's per behuizing:	10
Ondersteunde HDD-groottes:	3.5 "
Aantal uitbreidingssleuven:	10
Verbeterd kabelbeheer:	Ja
Belichting:	Ja
Transport wielen:	Nee
Anti-stof filter:	Ja
Supported motherboard form factors:	ATX, Micro ATX, Mini-ITX
Zijraam:	Ja
Geharde glaspla(a)t(en):	Ja
Maximum CPU cooler hoogte:	190 mm
Maximum grafische kaart lengte:	435 mm
Maximum PSU lengte:	250 mm
Maximale aantal ventilators voorkant:	3
Voorste ventilators ondersteunende diameters:	120,140 mm
Maximaal aantal ventilators bovenkant:	3
Bovenste ventilators ondersteunende diameters:	120,140 mm
Maximaal aantal ventilators achterkant:	1
Achterkant ventilators ondersteunende diameters:	120,140 mm
Aantal geïntstalleerde ventilators voorkant:	3x 140 mm
RGB-regelknop:	Ja
Ledcontroller:	Ja
Ondersteunde afmetingen voorste radiator:	360,420 mm
Ondersteunde afmetingen achterste radiator:	120,140 mm
Ondersteunde afmetingen bovenste radiator:	360,420 mm
