Pagina 1/16

For Technical Support: www.panduit.com

INSTALLATION INSTRUCTIONS

V00029TB_06

Page 1 of 16

Vertical Wall Mount Enclosure

Part Numbers: WME3BL, WME3WH, WME6BL, WME6WH, WME9BL, WME9WH

List of Components:

WME3**, WME6**, & WME9**

(1) Pair of Horizontal active E-rails

(1) Pair of Passive E-rails

(4) #12-24 screws

(4) M5 thread forming bonding screws

(1) Roll of TAK Y-T hook & loop cable tie

(2) Keys

(1) Roll of grommet edging

MAXIMUM LOAD RATING.

WME3** - 200 LB [91 kG]

WME6** - 300 LB [136 kG]

WME9** - 400 LB [181 kG]

TABLE OF CONTENTS

Enclosure dimensions and accessories…………………………………..2

Explanation of Enclosure components……………………………………3

Mounting Enclosure and Electrical box installation……………………4-5

Door and Handle reversal…………………………………………………..6

Grounding…………………………………………………………………….7

Termination of backbone cable…………………………………………….8

PZAEFAN Fan kit installation………………………………………………8

Switch configuration……………………………………………………..9-10

Server & Switch configuration…………………………………………11-12

Max capacity Server configuration……………………………………13-14

Filter cover installation…..…………………………………………………15

WMEBR Brushed Entry kit installation…………………………………...16

INSTALLATION INSTRUCTIONS

V00029TB_06INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com

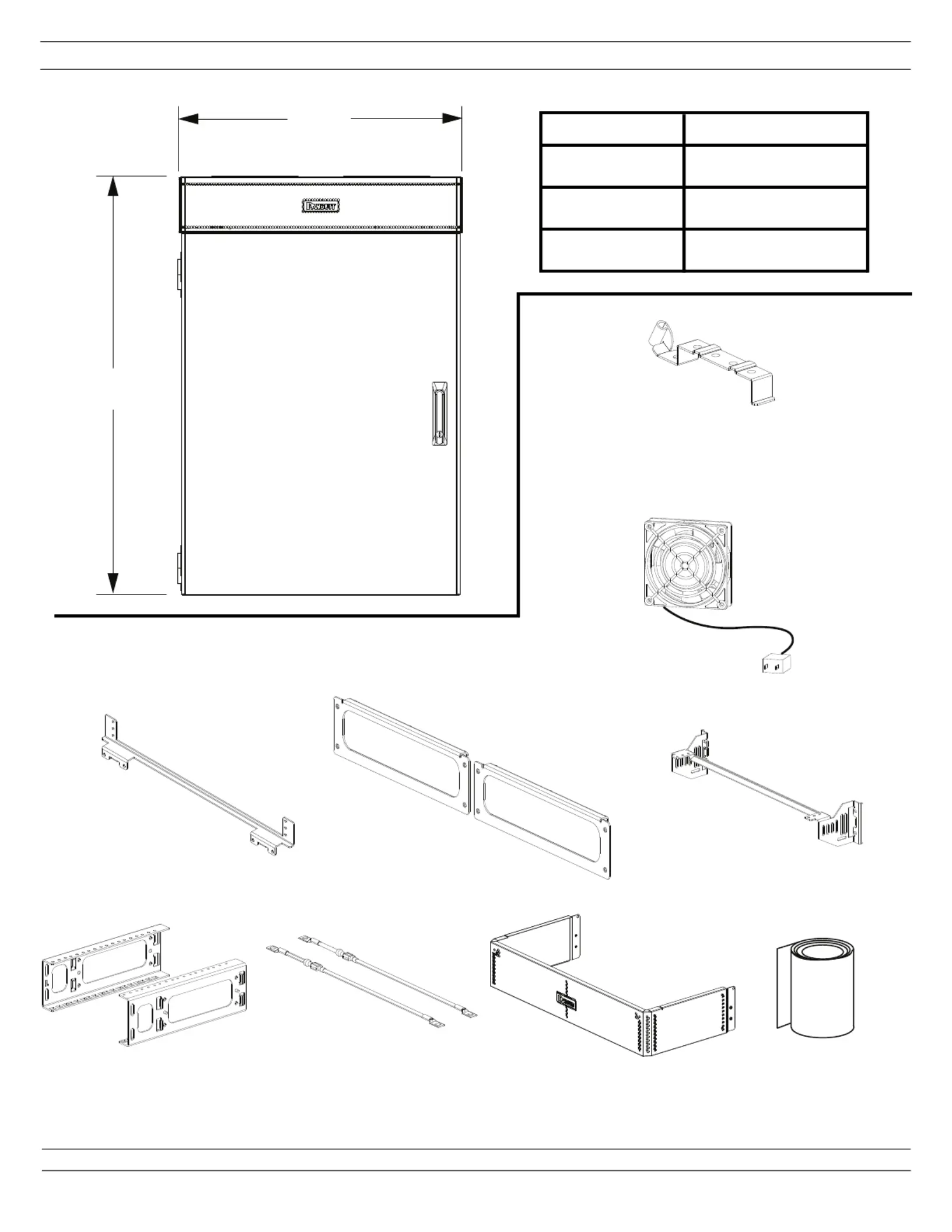

28.5”

[724mm]

42.0”

[1068mm]

ENCLOSURE DEPTH

WME3** 9.5" [240mm]

WME6** 14.7" [374mm]

WME9** 19.9" [506mm]

Optional Accessories

WME0UB

Zero RU Bracket

WMEBR

Brushed Entry Kit

WME*1RU

Bonus 1 RU Bracket

WME*ERAIL

Additional Active

Equipment Rails

WMEGK

Door and Lid

Grounding Kit

PZAEGK

Equipment

Grounding

Bracket Kit

Page 2 of 16

PZAEFAN

Fan Kit

WME*BL-FKIT,

WME*WH-FKIT

Air Filter Kit

WME*-FR

Air Filter Media

Replacement Kit

INSTALLATION INSTRUCTIONS

V00029TB_06INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com

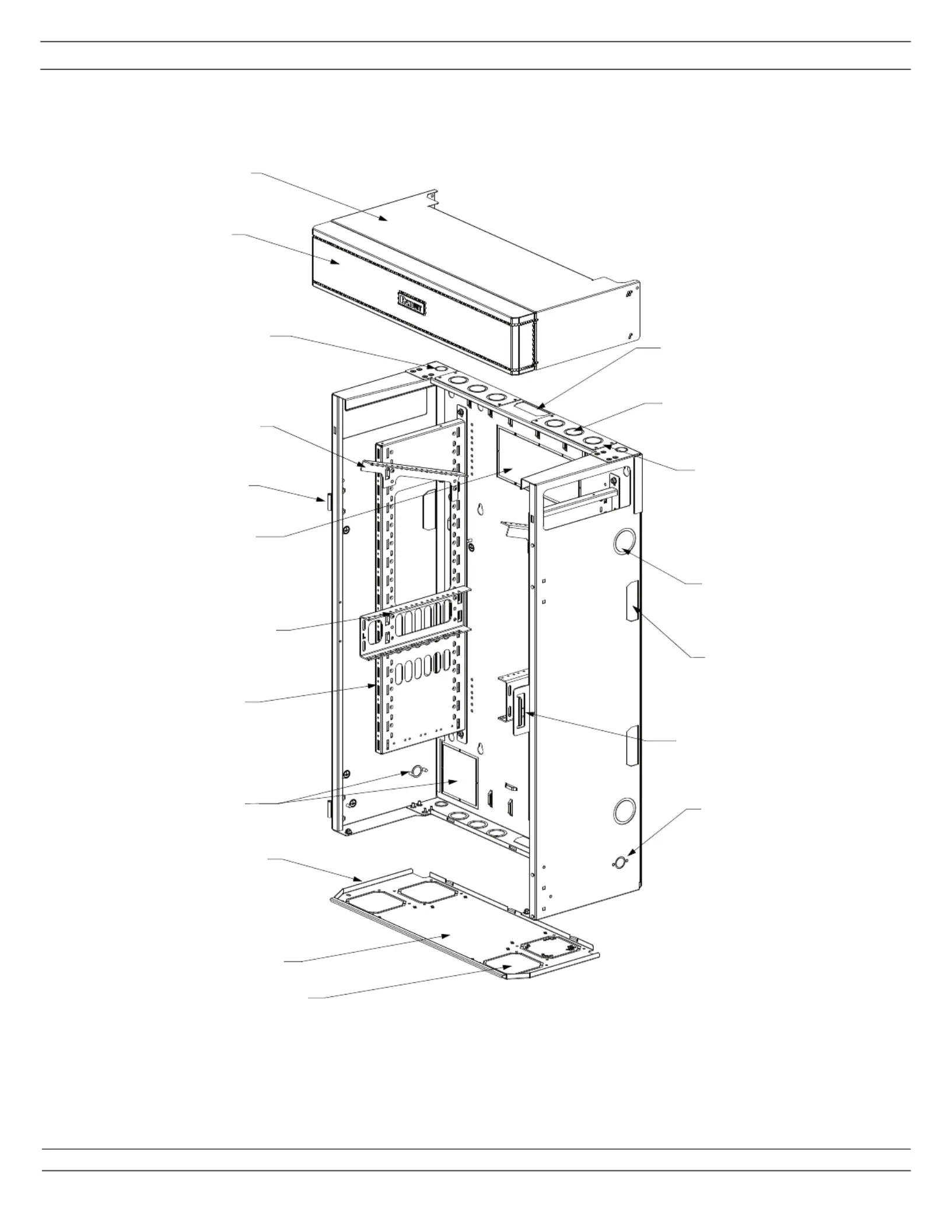

T70 Raceway knock-out

(top & bottom)

Rack Units for Patch Panels

(view shown with door removed)

Combination 1/2" or 3/4"

knock-out (2 plcs. top & bottom)

Combination 1" or 1 1/4"

knock-outs (6 plcs. top & bottom)

Removable Top Lid

Reversible door hinges

Wall pass-thru knock-out

Multiple conduit box

mounting locations

Removable bottom plate

Removable plates for

additional cable capacity

(2 plcs.)

Perforated for airflow

Combination 1 1/2" or 2"

knock-outs (2 plcs. both sides)

T70 Raceway knock-out

(2 plcs. both sides)

Combination 1/2" or 3/4"

knock-out (1 plc, both sides)

Reversible door latch

Adjustable Horizontal active E-rails

(#12-24 & cage nut)

Perforated fan knock-outs

Side Brackets for

mounting E-rails

Page 3 of 16
