Technical Data
Input Power
5-5.5V DC 0.6A
Output Protocol
DMX512
Programmability
Windows, Mac OS, iOS,
Android
Connections
Type C USB, XLR3,
Ethernet, 20-Pin (2x10)
Male IDC Socket, battery
Memory
microSD SD & SDHC
(32Gb Max)
Environment
IP20. 0°C - 50°C
Buttons
10 buttons for direct access
2 buttons to change scene
+ 1 button to change zone
Dimensions
160x90x45mm 268g
OS Requirements
Mac OS X 10.13 onwards
Windows 8.1 64bit onwards
Standards
EC, EMC, ROHS
Optional Accessories
POWER1_EU/UK/US
5V ACDC PSU with EU/UK/US plug
© Nicolaudie Group 1989-2023. All rights reserved. We reserve the right without notice to amend the technical information and specications.
SLESA-U11
Smart DMX Interface (USB & Ethernet)
http://www.nicolaudie.com/slesa-u11.htm
Overview
The new SLESA-U11 is built on the latest
generation of lighting controllers from
Nicolaudie Architectural and combines all our
recent innovations.
Programmable with ESA Pro 2 software or
with Arcolis, the SLESA-U11 features the new
Nicolaudie Stand Alone engine (NSA) oering
incredible power with multi-zone, extended
triggers and 16-bit channels management.
Intuitive backlit keyboard with 10 presets and
zone selection. With an Ethernet connection
and Wi, the SLESA-U11 can be controlled
using Arcolis Remote Pro or Arcolis Remote
apps from a smartphone or tablet.
Key Features
• 2x DMX512 universes in live mode (computer/tablet)
• 2x DMX512 universes in stand alone mode
• Expandable from 2 to 4 DMX512 universes
• Intuitive backlit keyboard with 10 presets
• 99 scenes (total) across 5 zones
• USB & Ethernet for programming/control
• Multi-zone microSD memory
• 16 dry contact trigger ports via 20-Pin IDC Socket
• Clock and calendar with Sunrise/Sunset triggering
• Network communication. Control lighting remotely
• OEM customization
• Windows/Mac software to set dynamic colors/eects
• Phone/iPad/Android remote and programming apps
• Metal bracket, mount to a wall or under a desk
• DMX in or out. RDM ready.
• Extended triggering possibilities (TCA)
• Smart Upgrade Technology (SUT)
Page 2
V 1.05
OR
Ethernet
DMX
USB Type-C
AC/DC ADAPTOR
5V-5.5V
POWER1 PSU
USB Type-C
Ethernet
DMX
1
3
2
Technical datasheet Revision date 19 May 2023

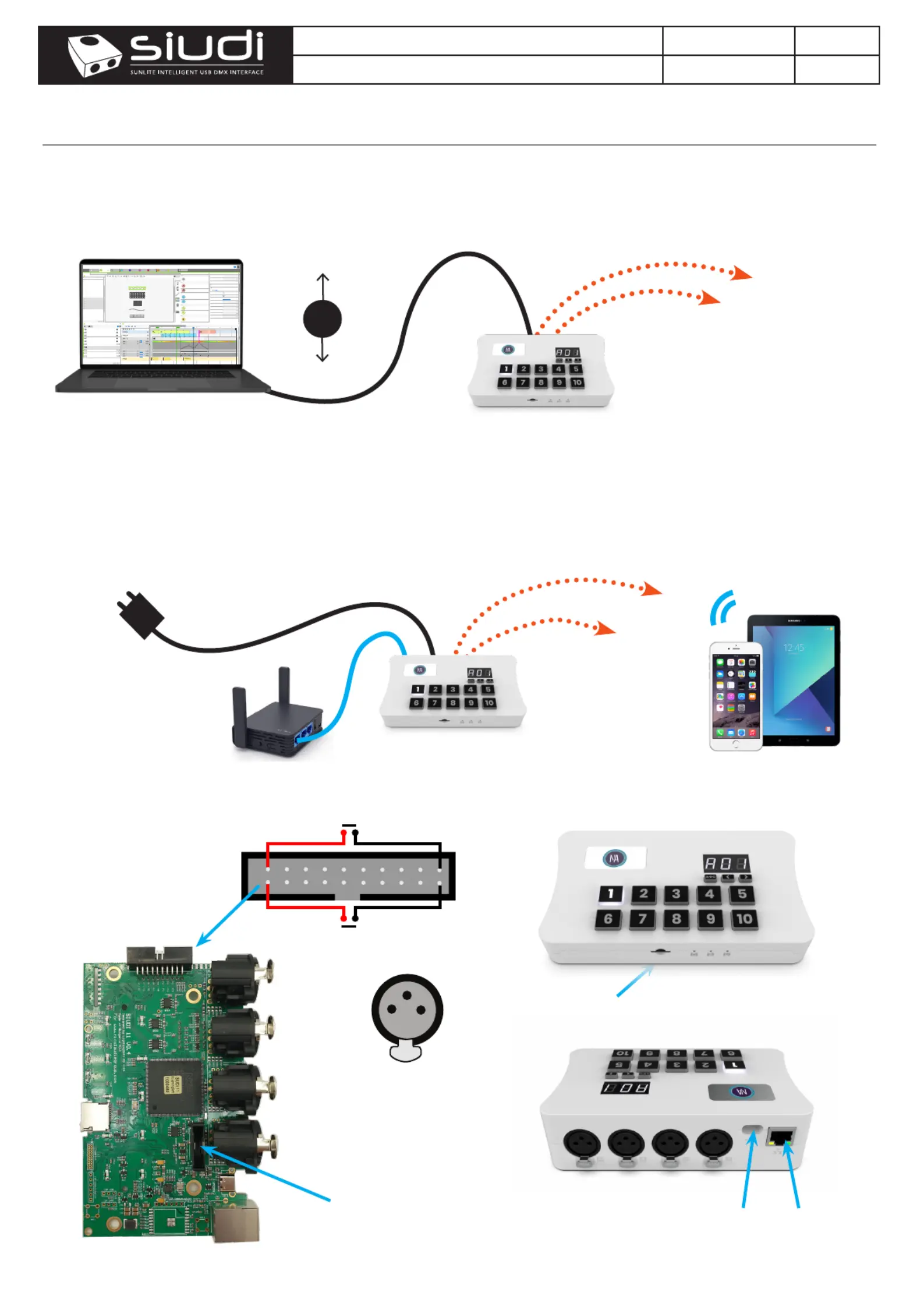

CONNECTIVITY
Live use with a computer
Stand Alone or live use with a smartphone/tablet
PC or Mac running the software
iPhone, iPad, Android
Wi Router / Access Point
When connected to software the controller will output DMX directly from the software and will display LI on the screen.
The controller will start in Stand Alone Mode when powered on. It will look for a project stored on the microSD card and then begin playing
scenes. A01 indicates Scene 1 from zone A is playing.
FRONT
REAR
SD CARD
P3P1
GND
P2
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
PORT 1
PORT 2
16 dry contact ports
Rechargeable
battery holder
(LIR 2032)
www.nicolaudie.com
SLESA-U11
© Nicolaudie Group 1989-2022. All rights reserved. We reserve the right without notice to amend the technical information and specications.
Easy Stand Alone USB-DMX Interface
PropertiesBuilder Selections Mappings
Rainbow
00:02:41:58
00:02:41:58 00:02:41 0 8 00:02:41:58 00:02:41:58 00:02:41:58
00:02:41:58
Val…Gobos
Val…Shutter
Sinus
6
Basic block
Circle
Master
Bar Moving he…
Moving heads
ESA PRO 2018 /BAR
Scenarios / Sequences
Chaser
00:00:03:56
SCE
Red purple
00:00:03:56
SCE
Waves
00:00:03:56
SCE
Animated GIF
00:00:03:56
SCE
Fire
00:00:03:56
SCE
Explosion
00:00:03:56
SEQ
Stars
00:00:03:56
SEQ
Water floating
00:00:03:56
SEQ
Back flip
00:00:03:56
SEQ
Lights
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Room.001
RGBW 1.155
Add
SCE SEQ
Rainbow
00:00:03:56
SCE
Name Basic block
/ Basic block
Looping
Duration
Fade in
Fade out
No loop
00 02 41 58:::
01s
04s
0s
60s
Checkbox
Parameters
Checkbox
Tune values…
Protperty No loop
Protperty No loop
Protperty No loop
Protperty No loop
Protperty No loop
Protperty No loop
RoomGlobal Lobby Pool Kitchen BBQ Garden Garage Back yardAreas
New area
Patch
Effects / blocks
Color effect
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Color effect
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Position
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Position
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Curve
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Curve
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
DALI Command
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Basic block
Lorem ipsum dolor sit amedipiscing elit.
ed nisi et vulputate.
Basic
Color
Position
Curve
DALI
Val…
77%
Sinus
DALI Selection
DALI
CMD 3652
DALI
CMD 3652
DA
C
15%
42%
15%
Sinus Rainbow
DALI
Color
Dimmer
Position
Menu Edit Display About
Cue 1 Cue 2
USB-C
Universe #1,2,3,4
1 DMX1 ground
2 DMX1 data-
3 DMX1 data+
ETHERNET
2 Universes,
expandable to
4U. See SUT
Licence Upgrades
on page 3.
2 Universes,
expandable
to 4U. See
SUT Licence
Upgrades on
page 3.
Page 3
V 1.05
P3P1
GND
P2
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
PORT 1
PORT 2
A metal bracket for mounting against a wall is available upon request.
Hardware Manager (Windows/Mac) - Firmware, clock
https://eu-tools.n-g.co/Release/HardwareManager.dmg
https://eu-tools.n-g.co/Release/HardwareManagerBeta.exe
Hardware Tools
Update rmware, set clock, settings, etc.
Technical datasheet Revision date 19 May 2023
Extra hardware features (e.g. extra DMX512 universes) and software
compatibility can be unlocked at :
store.nicolaudie.com/my_interfaces
- Click and download the SUT driver + Register a new Interface
software. Follow the on-screen prompts.
- Once registered, select your interface on the left. You can buy new
features and software compatibility, change the device name or
transfer the device to a new owner. 30 day software trials available.
Any licence changes will be synchronised the next time automatically
you connect your interface to almost any Nicolaudie Group software
while connected to the internet.
Note: The Artnet upgrade allows live output from software only
(Daslight, Sunlite etc). The SIUDI-11A cannot output Artnet when
operating in Standalone mode.

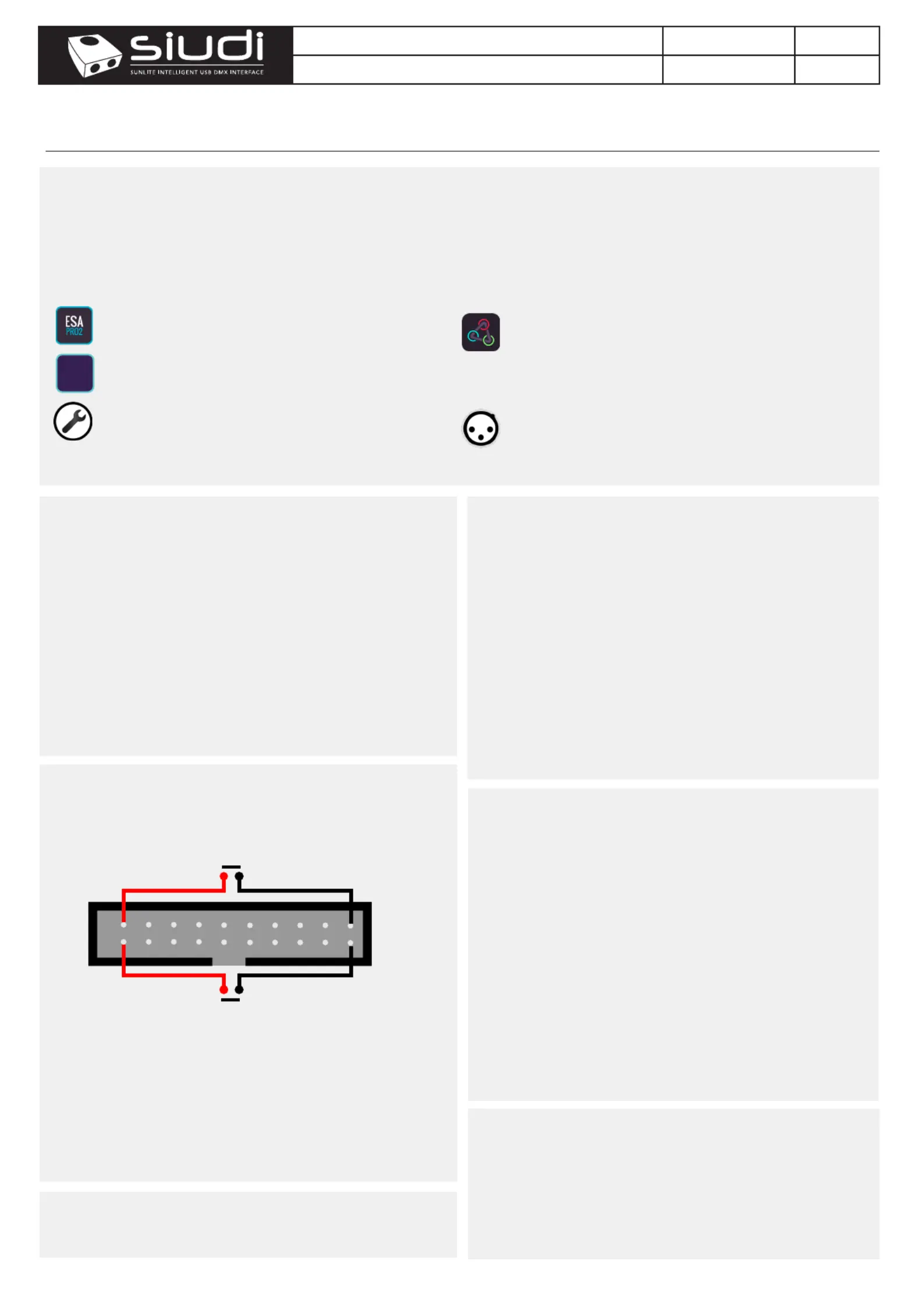

Dry Contact Port Triggering
Basic Operation
SUT Licence Upgrades
To activate a port, a brief contact of at least 1/25 second must be
established between the ports (1...16) and the ground (GND) using
the external HE20 connector.
A suitable IDC cable can be found by searching for ‘IDC 20 Pins
Connector Flat Ribbon Cable Female Connector 2.54mm Pitch’. If
making your own cable you will need ‘20 Way Flat Ribbon Cable,
Pitch 1.27mm’. To connect cable to a screw terminal breakout
board, search for ‘IDC20 2x10 Pins Male Header Breakout Board’.
The controller can be programmed from a PC, Mac, iOS (Apple) or Android device using the software listed below . Refer to the corresponding
software manual for more information. Firmware and settings be updated using Hardware Manager (installed with PC/Mac programming can
software) or with Hardware Tools (Android / iOS, compatibility). Refer to the SUT page in HardwareManager for a full list of software licences.
Programming the Controller
Setting up the Controller
Free apps are provided to allow remote control over a local area
network when running in stand alone mode. Connect the controller
to a Wi network. The apps will nd all compatible devices on the
network using multicast / broadcast messages. Use Hardware
Manager to congure the network settings for your controller.
Arcolis Remote - A simple interface provides the easiest way to
control your device (iOS / Android)
Arcolis Remote Pro Create a customized remote controller with
buttons, faders and color control (iOS / Android)
UDP Network Triggering
Refer to User Manuals > Siudi11 Dina1 & 2 Remote Control
document at nicolaudie.com/download.htm
Remote Control Over Local Network
Mount Controller
Port triggering is possible using the 20-Pin (2x10) Male IDC Socket
on the right hand side of the controller. You will need to remove a
plastic protective cover to access it.
Display Messages
000 022 at startup -> means serial number 1 000 022
A01 to E99 -> Stand Alone OK (Zone A-E + Scene No. displayed)
USB/Eth PC -> connected to a Windows software (live mode)
USB/Eth nAC -> connected to a MacOS software (live mode)
USB/Eth LI -> connected to a Linux software (live mode)
USB/Eth APP -> connected to another OS app (live mode)
See Trouble Shooting section for other messages.
Your controller comes pre-programmed with a demo RGB show with
8 scenes (A01-08). This demo show can be rewritten at any time
using HardareManager. In most cases you will want to create your
own show for your specic xtures using our software.
www.nicolaudie.com
SLESA-U11
© Nicolaudie Group 1989-2022. All rights reserved. We reserve the right without notice to amend the technical information and specications.
Easy Stand Alone USB-DMX Interface
Windows / Mac Programming Software
ESA Pro 2 Software (Windows/Mac) - Multi-zone
nicolaudie.com/esapro2.htm
ESA2 Software (Windows/Mac) - Single Zone
nicolaudie.com/esa2.htm
Apple iOS and Android Apps
Arcolis Designer
Multi-zone programming from a tablet or smartphone
• Download ESA Pro 2 or ESA2 from nicolaudie.com/download.htm
or Arcolis Designer from the Android Playstore or iOS App Store.
• Connect the controller with USB or ETHERNET to a network.
Arcolis can connect with Wi or with USB (Android only)
• Connect your lights to the DMX1 or DMX2 connectors
• Use app to program your controller (refer to manual / tutorials)
• Use the controller in stand alone mode with USB power
• Trigger the scenes with the remote apps, dry contacts,
internal clock/calendar, UDP messages or the 10 buttons keypad
ESA2
