A

B

C

D

A

B

C

D

E

1

3-

2-

1+

1-

2+

3+

4+

4-

R

E

[0.32"]

8 mm

[1.00”]

25 mm

[]

0.32” - 0.79”

Cable O.D. 8 - 20 mm

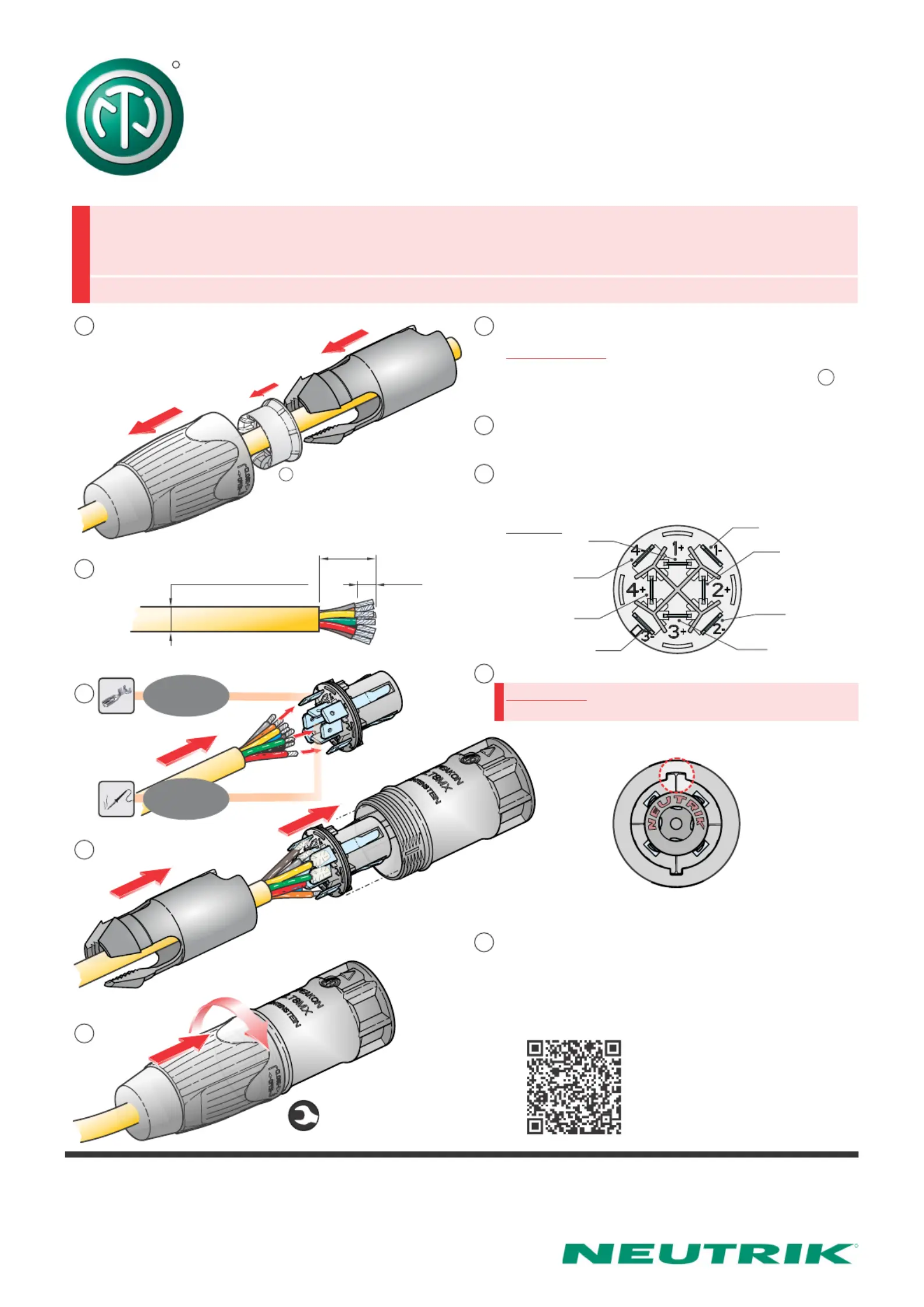

Place bushing and chuck over the cable.

If cable O.D.:

Less 16 mm please use reducing piece ( ).

Prepare cable as shown.

Use 1/4" flat tabs or soldering to fix the wire

ends to contacts of insert.

Wiring:

Slide insert and chuck into housing.

Important: Align the insert by positioning

the Neutrik to the top of the housing.

Front view:

Slide the bushing up the cable and tighten it

(flat wrench SW 27 mm).

1

®

speakON STXX SeriesNLT8MXX

|

Lockable 8 pole Loudspeaker Cable Connector with metal housing

ASSEMBLY INSTRUCTION

Find more details of speak onCON

www.neutrik.com.

IMPORTANT SAFETY INSTRUCTION

Wrench Size = 27

SOLDER

1/4" FLAT

TABS

®

Attention: speak is not to be used as an AC mains or power supply connector!ON

CAUTION: NOT FOR INTERRUPTING CURRENT

ATTENTION: NE PAS UTILISER POUR COUPER LE COURANT

Draft. Nr.: BDA 616 V2 Update: 2021-07-06

II

www.neutrik.com

NeutrikAG LI T: +423/2372424 F:+423/232 53 93

NeutrikUSA Inc. USA T:+1704/972 3050 F:+1704/438 9202

()

Neutrik UK Ltd. UK T:+441983/811441 F:+441983/811439

Neutrik VertriebsGmbHDE/NL/AT/DK T:+498131/280890 F:+498131/280830

Neutrik France FR T:+33 1/4131 6750 F:+33 1/4131 0511

Neutrik Tokyo Ltd. JP T:+81 3/3663 4733 F:+81 3/3663 4796

Neutrik Hong KongLtd.HK T:+852/2687 6055 F:+852/2687 6052

R

Data subject to change without prior notice. 2021 NEUTRIK. NEUTRIK are registered trademark of Neutrik AG. ALL RIGHTS RESERVED.

®®

©
