For answers to your Monogram,
®
GE Profile
™
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
130452
Specification Created 7/08
ZGU486NRPSS (Natural Gas)
ZGU486LRPSS (Liquid Propane)
GE Monogram
®
48" Professional Gas Rangetop with 6 Burners and Grill

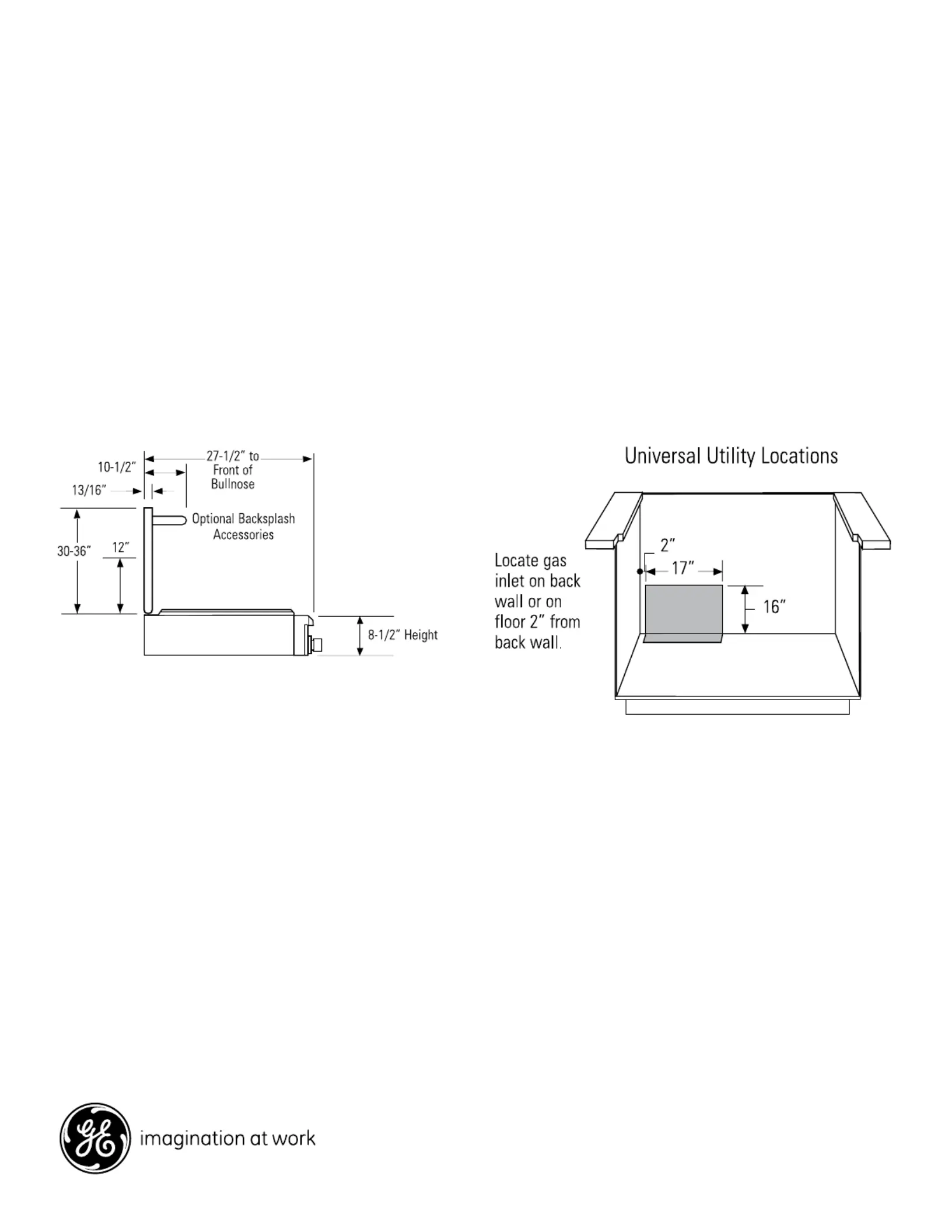

Dimensions and Installation Information
Professional rangetops offer a number of choices in size
and rangetop configurations.

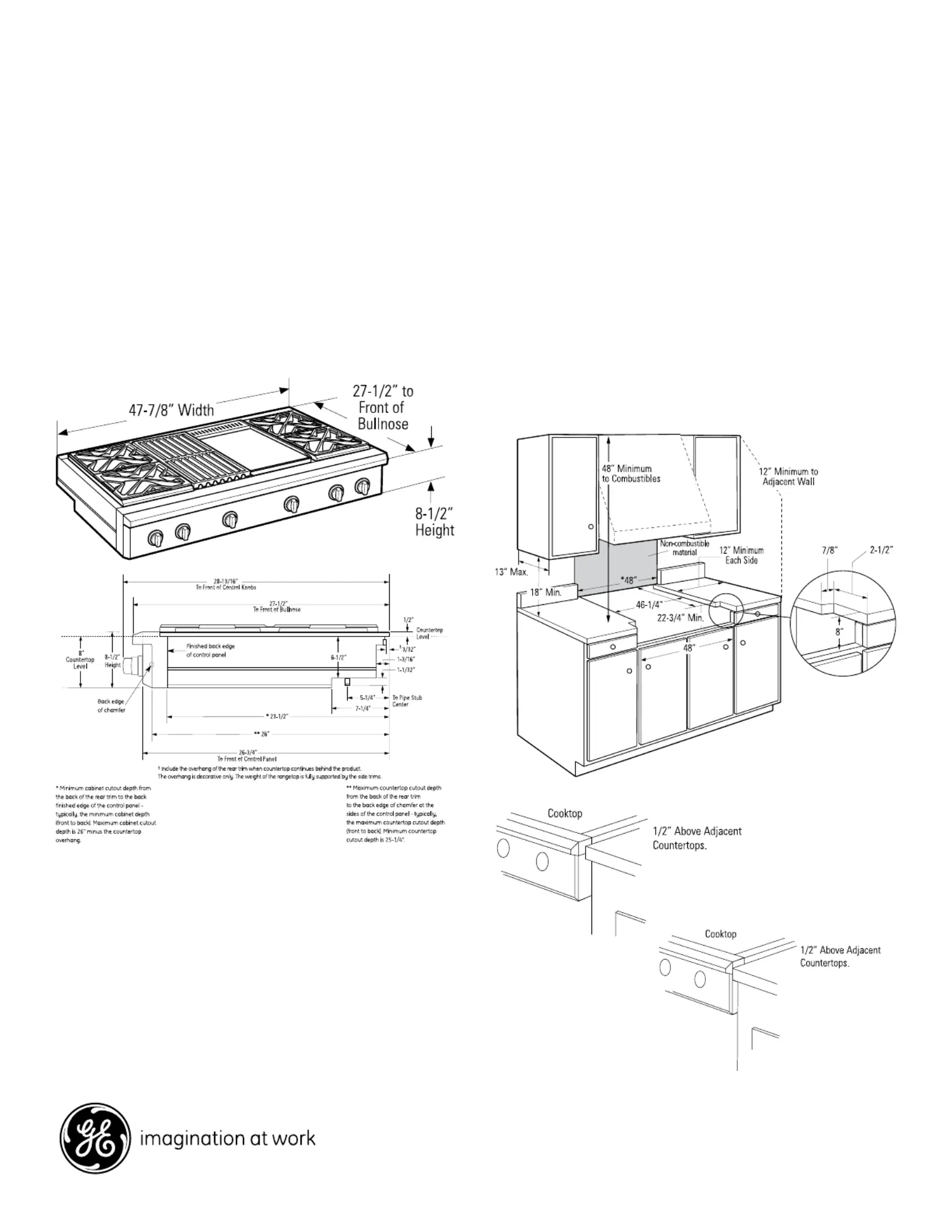

Product Dimensions and Clearance
A 48"- or 54"-wide professional vent hood with a minimum
1200 CFM is recommended for installation over this rangetop.
* The opening between a 4" high backsplash must be 36" to
allow the rangetop to slide back against the wall.
WARNING: Installations without a hood require 48" mini-
mum to combustibles above the rangetop. A custom hood
installation with exposed horizontal combustible surfaces
must have an "auto-on" feature. Refer to hood installation
instructions for specific hood clearances. The surface of the
entire back wall above the countertop and below the hood
must be covered with a non-combustible material such as
metal, ceramic tile, brick, marble or other stone.
Clearances between rangetop and side wall or combustible material
must be at least 12" on each side.
Allow 8" free space below the top surface of countertop. Allow
additional clearances below the burner box to install the
regulator and make house gas supply connections. Use a 90°
elbow to route the gas connections and limit interference with
drawers or other cabinetry.
Controll panel projects forward
from standard depth cabinets.
Front of deep cabinets can align
with control panel beveled edge.
