ZGU36N4RHSS (Natural Gas)
ZGU36L4RHSS – GE Monogram 36" Professional Gas Cooktop with (Liquid Propane)
4 Burners and Grill
Specification Revised 10/05
130444

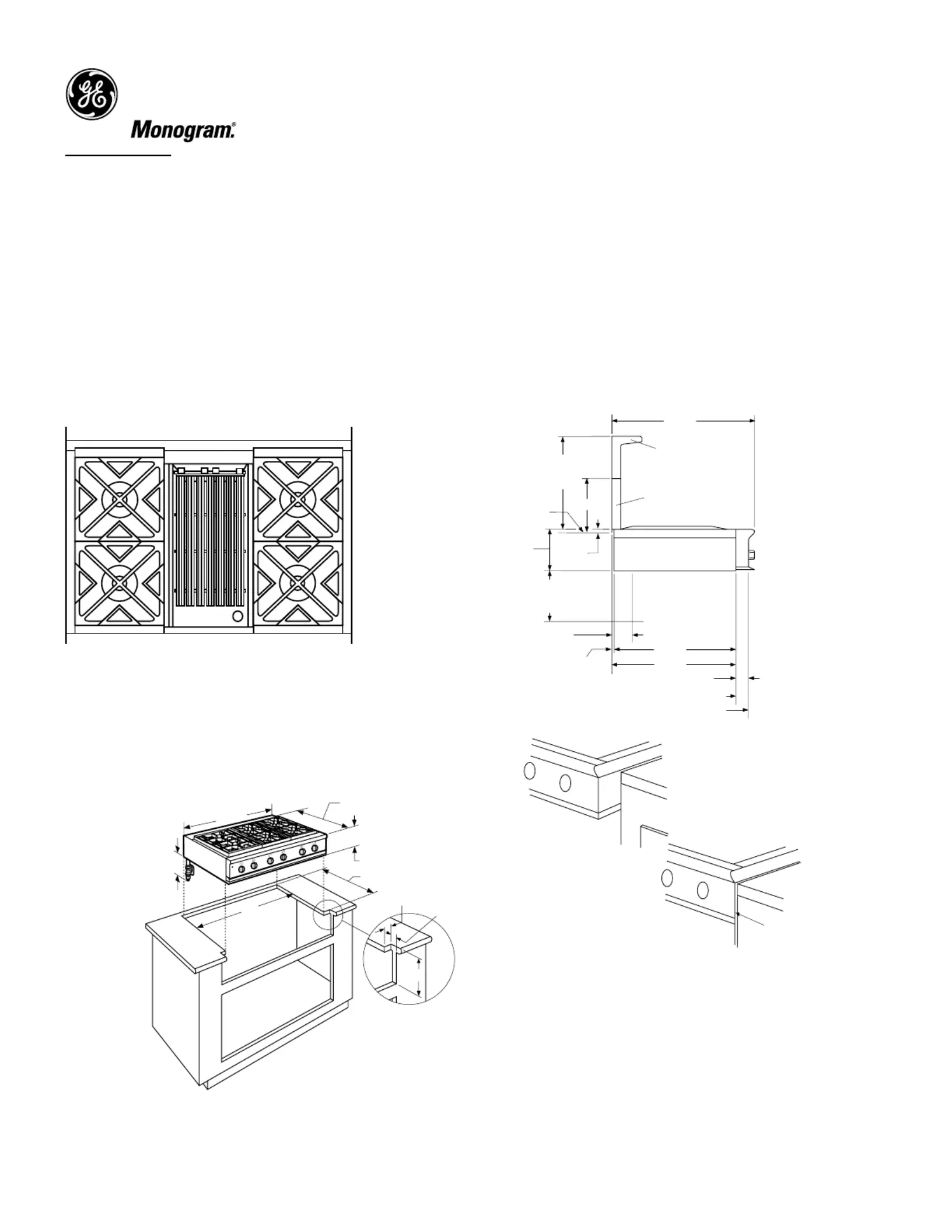

Dimensions and Specifications (in inches)
Professional cooktops offer a number of choices in size and
cooktop configurations.
For answers to your Monogram,
®
GE Profile
™
or
GE
®
appliance questions, visit our website at
GEAppliances.com or call GE Answer Center
®
service, 800.626.2000.

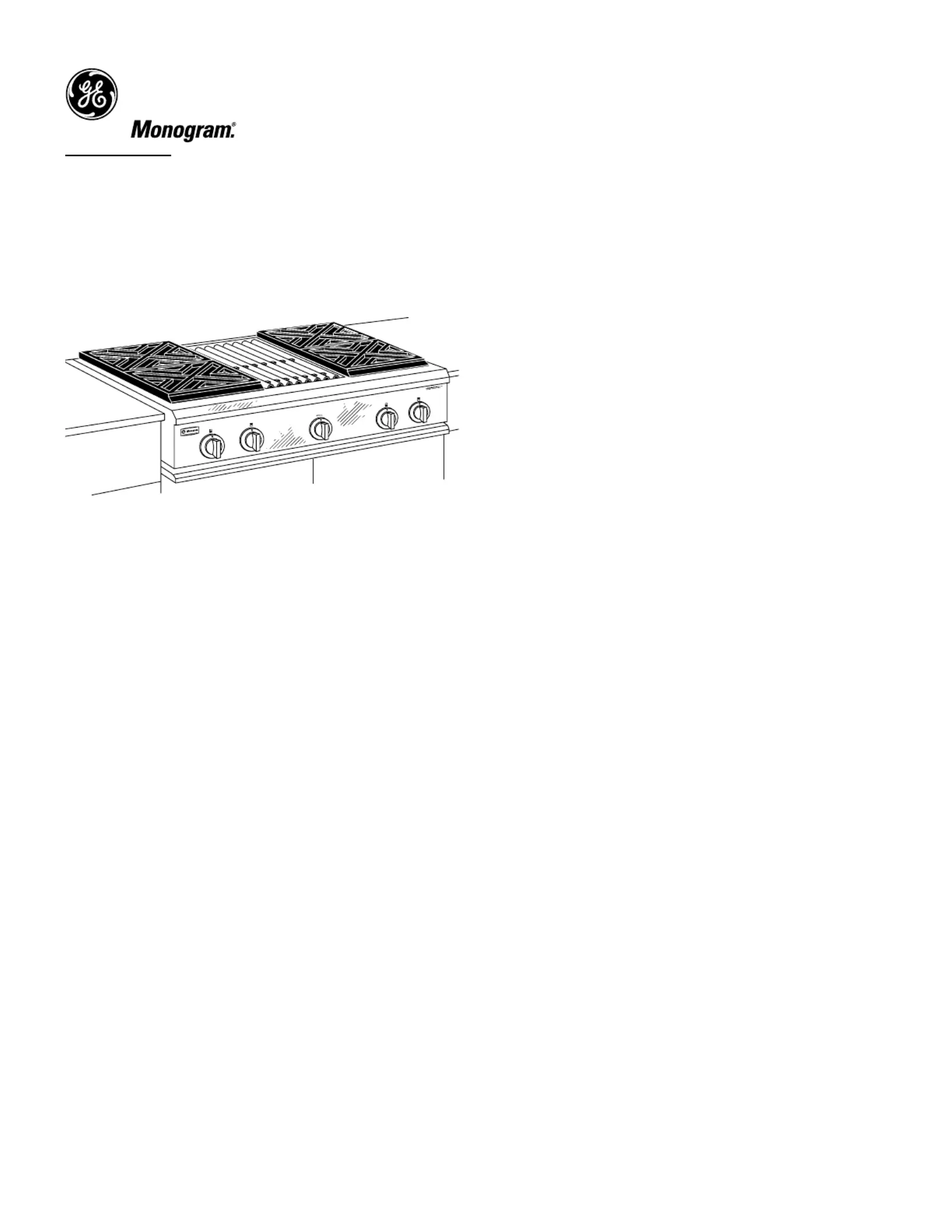

ZGU36N4RHSS
with 4 burners and grill (Order ZGU36L4RHSS for LP gas)

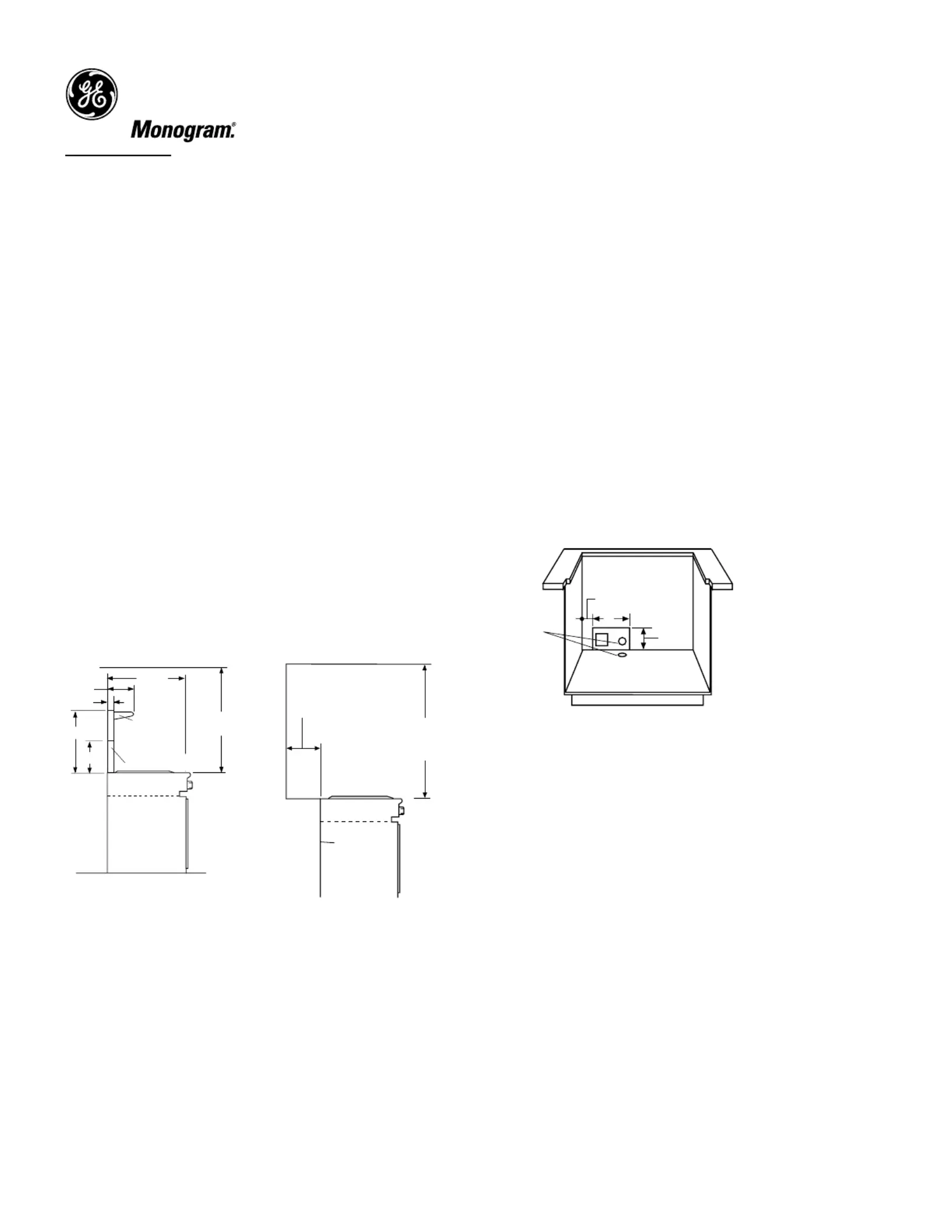

Product Dimensions and Clearance
A 36"- or 42"-wide professional vent hood with a minimum 600 CFM
is recommended for installation over this cooktop.
Install Options
• The cooktop stainless steel surface will be 1/2" higher than
adjacent countertops.
• In 24"-deep cabinets, the front of the cooktop will be
approximately 1-7/8" beyond the front of the countertop.
26-5/8"
12"
1/2"
8-7/16"
Countertop
Level
22-3/4"
23-1/4"
4" to Center Line
of Gas Inlet
on the Left
Allow Additional Clearance
Below the Burner Box for
Gas Connections
2-1/2"
Cabinet Face - Projecting Control Panel
Cabinet Face - Flush Control Panel
1/2"
12" High
Backsplash
22"
High
Back
22" High
Backsplash
with Shelf
8"
2-1/2"
1/2"
35"
22-3/4"
Mo
n
ogra
m
F
R
O
NTR
E
A
RF
R
O
NTR
E
A
RF
R
O
NTR
E
A
R
26-5/8"
8-7/16"
35-7/8"
Allow Clearance
Below the Burner Box
for the Regulator and
Gas Connections
Clearances between cooktop and side
wall or combustible material must be
at least 12" on each side.
1/2" Above Adjacent
Countertops.
Front Projects Outward as Shown
From Standard Depth Cabinets.
Cooktop
NOTE: These cooktops require 8" free space below the countertop
to house the cooktop burner box. Allow additional clearances below
the burner box to install the regulator and make house gas supply
connections. Use a 90° elbow to route the gas connections and limit
interference with drawers or other cabinetry features.
1/2" Above Adjacent
Countertops.
Front Flush With Cabinets - a Minimum
of 25-3/4" Cabinet Depth Required
Flush With Cabinet Front
Cooktop
