GE Monogram
®
Installation
Instructions
36" Digital
Radiant Cooktop
Model
ZEU365ABG
ZEU36WMRABG
2
Before you begin—Read these instructions completely and carefully.
IMPORTANT: Save these instructions for local inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these instructions with the
Consumer.
NOTE TO CONSUMER: Keep these instructions with your Use and Care
Book for future reference.
This appliance must be properly grounded. See “Electrical Supply”, page 4.
WARNING
If you have questions concerning the
installation of this product, call the GE
Answer Center
®
Consumer Information
Service at 800.626.2000, 24 hours a day,
7 days a week.
If you received a damaged cooktop, you
should contact your dealer.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the GE
Appliance Warranty. See the Use & Care
Guide for warranty information.
For Monogram local service in your area,
1-800-444-1845.
For Monogram Service in Canada
1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
CAUTION:
• This cooktop should be installed by a
qualified installer or service technician.
• Do not store items of interest to
children in cabinets above the
cooktop. They could be seriously
burned climbing on the cooktop to
reach them.
• Never use your cooktop for warming or
heating the room. Prolonged use of the
cooktop without adequate ventilation
can be hazardous.
• The cooktop should be easy to reach
and lighted by natural light during the
day.
• Always disconnect the electrical service to
the unit before repairing or servicing the
cooktop. Disconnect the fuse or circuit
breaker. Failure to do so could result in a
dangerous or fatal shock. Know where your
main disconnect switch is located.
Check local building codes for the proper
method of cooktop installation. Local codes
vary. Installation, electrical connections and
grounding must comply with applicable
codes. In the absence of local codes, the
cooktop should be installed in accordance
with National Electrical Code ANSI/NFPA
70-1990.
Contents
Design Information
Models Available................................................................................................................................. 3
Dimensions and Clearances ..............................................................................................................3
Advance Planning ..............................................................................................................................3
Installation Preparation
Tools & Materials Required ...............................................................................................................4
Electrical Location .............................................................................................................................4
Base Cabinet Heat Clearances ..........................................................................................................4
Step 1: Cut the Opening .................................................................................................................... 5
Installation
Step 2: Install Cooktop ...................................................................................................................... 6
Step 3: Install Hold-down Brackets ...................................................................................................6
Step 4: Connect Electrical .................................................................................................................7
Models
Available
ZEU365ABG
Digital Radiant Cooktop
ZEU36WMRABG
Digital Radiant Cooktop with
warming burner
Design Information
Digital Radiant Cooktop
3
These Monogram cooktops offer a smooth
glass surface with bridgeburner to form an
elongated heating area. A beveled glass edge
provides a trimless appearance.

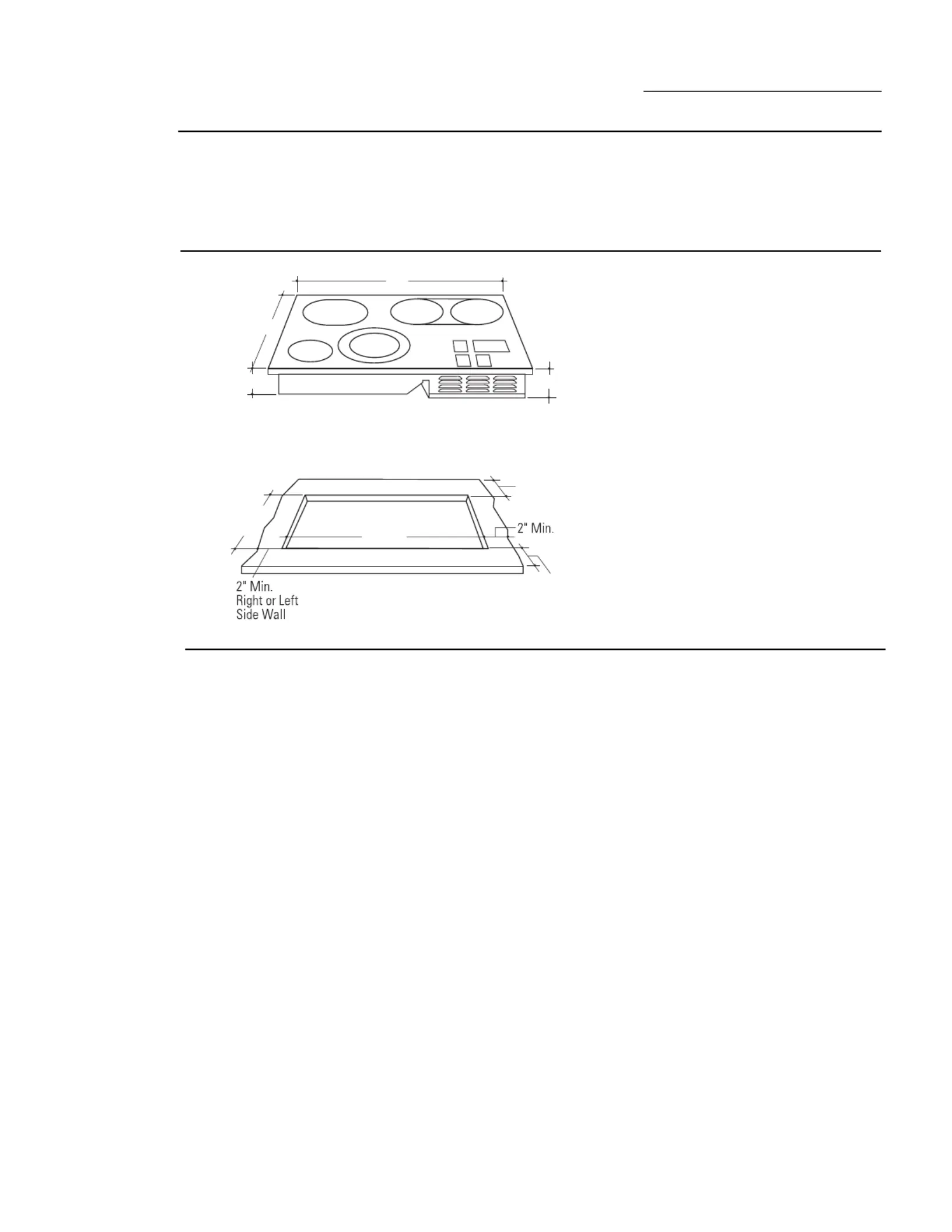

Dimensions
& Clearances
•The underside (recessed) dimensions are:
– 34-1/8" wide (including spacers),
– 3-5/8" high,
– 19" front to back (including spacers).
Advance
Planning
This cooktop has a control system that is fan
cooled during heavy usage conditions. This
requires a minimum of 15" free-space below
the cooktop bottom to an internal enclosure;
such as a full depth cabinet shelf; to provide
this air circulation.
–Do not block vents on the underside and at
the right front and right sides.
–Do not block exhaust fan outlet located on
the bottom of the cooktop.
See “Base Cabinet Heat Clearances” for fan
and vent locations.
•Use this cooktop with any exhaust hood;
no special overhead ventilation is required.
•Refer to “Dimensions and Clearances” for
appropriate placement and clearances when
planning installation.
•Avoid placing cabinetry directly above the
cooktop when possible.
•If cabinetry is used above the cooking
surface:
–Use cabinets no more than 13" deep.
– Maintain 30" minimum clearance between
cooktop and unprotected cabinets directly
above cooktop.
–Maintain 24" minimum clearance when
bottom of wood or metal cabinet is pro-
tected by not less than 1/4" thick flame-
retardant millboard covered with not less
than no. 28 MSG sheet steel, 0.015 inch
thick stainless steel, 0.024 inch thick
aluminum, or 0.020 inch thick copper.
–A 36" wide exhaust hood that projects at
least 5" beyond the front of the upper
cabinets can also reduce risks.
•Working areas adjacent to the cooktop
should have 18" minimum clearance
between countertop and cabinet bottom.
1-1/2" Min.
19-1/4"
Max.
36"
20-1/2"
2-3/4"
2" Min.
Required
34-3/8"
3-3/4"
