I-00623 Rev B
Installation Instructions
L5 Series Clock Timer 4”
L5-Clocktimer4
HARDWARE KIT INCLUDES
THANK YOU
Thank you for purchasing the L5 Series Clock Timer 4”. Please read these instructions
thoroughly before installing/operating this product. Refer to I-00627 L5 Series AV Ready Lectern
Instruction Sheet for additional information.
6-32 Flange Nuts
6-32 x 3/8” Pan Head Phillips Screws
QTY
DESCRIPTION
4
4
INSTALLATION

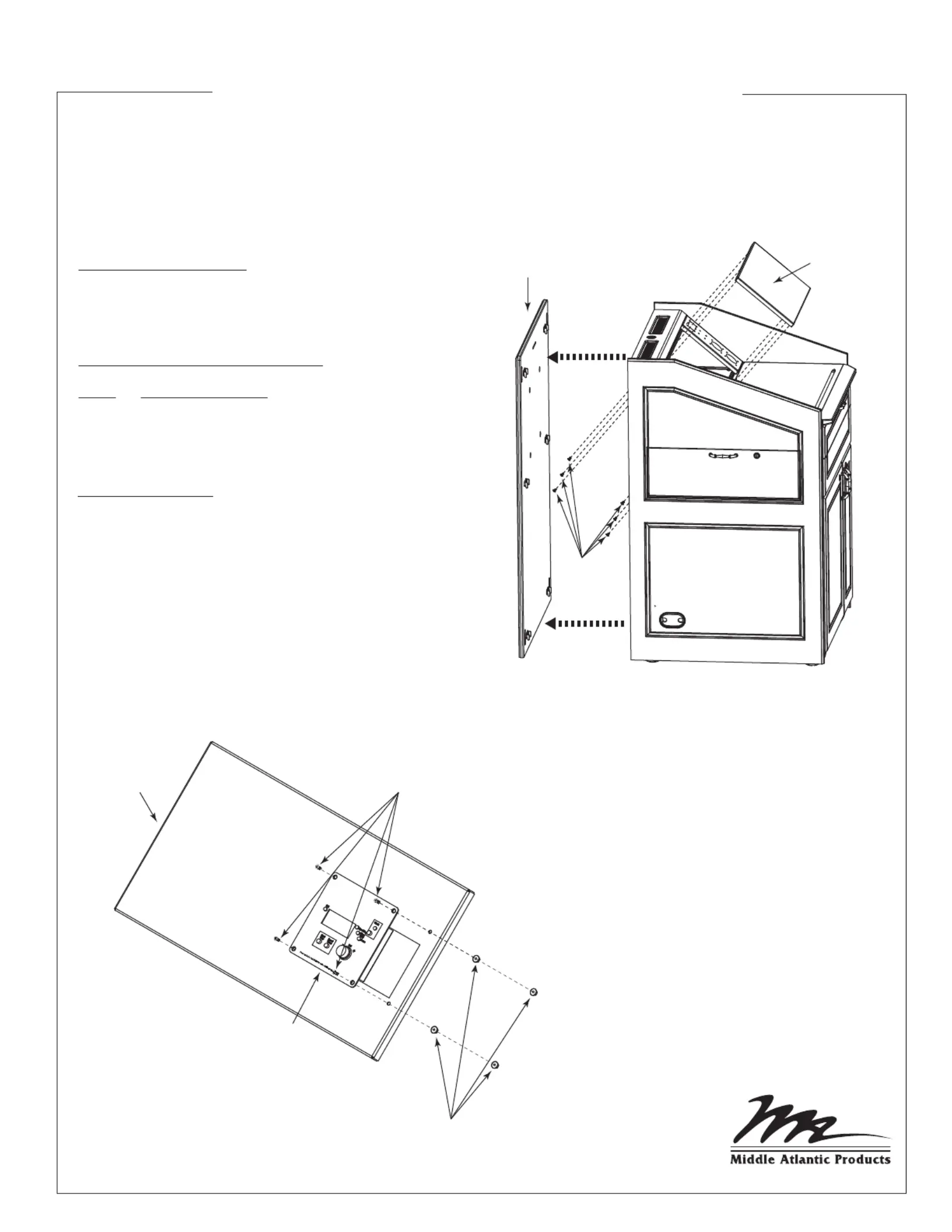

1) Remove rear panel. (FIGURE A)
2) For ease of installation, remove (6) screws
securing presenter’s panel to frame and
remove from frame. (FIGURE A)
3) If necessary, refer to manufacturer’s
instructions for additional hookup and operation details.
TOOLS REQUIRED
Phillips Screwdriver
5/16” Socket Wrench
Presenter’s
Panel
Screws
(6)
Rear Panel
Pan Head Phillips
Screws 6-32 x 3/8” (4)
4) Remove knockouts in presenter’s panel
as needed.
5) Install clock timer using (4) 6-32
flange nuts and (4) 6-32 x 3/8” pan head
Phillips screws. (FIGURE B)
6) Re-install presenter’s panel in reverse
manner.
7) Re-install rear panel.
FIGURE A
FIGURE B
Presenter’s
Panel
Flange Nuts
6-32 (4)
Clock
Timer
