Organize patch cords and maintain the required bend radius
with a variety of rackmount cable managers
HCM Horizontal 19 ” Cable M anagers
EIA/TIA compliant rackmount cable manager shall be Middle Atlantic Products model
# HCM-__. Horizontal cable manager shall use __ cable rings (refer to chart). Cable rings
shall be filled using a recommended 50% fill rate, accommodating up to __ CAT5e cables
(refer to c
hart). Horizontal cable manager shall be constructed with 16-gauge steel panel
and finished in a durable flat black powder coat. Horizontal cable managers shall be
GREENGUARD Indoor Air Quality Certified for Children and Schools. Horizontal cable
managers
shall be manufactured by an ISO 9001 and ISO 14001 registered company.
Horizontal
cable managers shall be warrantied to be free from defects in mater
ial or
workmanship
under normal use and conditions for the lifetime of the product.
D-RING Cable M anagement Ring
Wall mount and rackrail mount cable management ring shall be Middle Atlantic Products
model # D-RING. D-RING shall provide an interior dimension of 7.5 square inches. D-RING
shall be filled using a recommended 50% fill rate, accommodating up to 120 CAT5e cables.
D-RING shall be constructed of
11-gauge steel and finished in a durable flat black powder
coat. D-RING shall be GREENGUARD Indoor Air Quality Certified for Children and Schools.
D-RING shall be manufactured
by an ISO 9001 and ISO 14001 registered company. D-RING
shall be warrantied to be free
from defects in material or workmanship under normal use
and conditions for the lifetime
of the product.

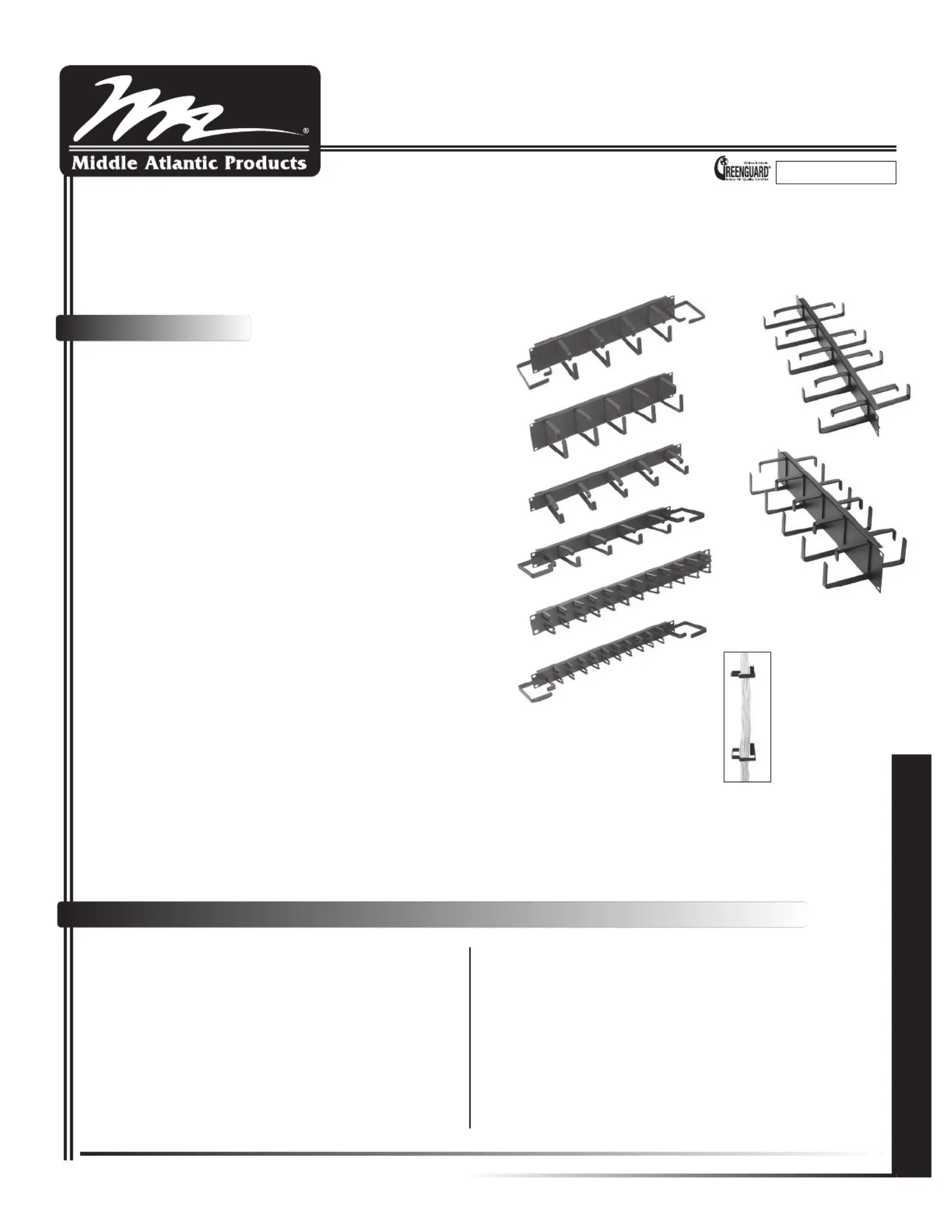

HCM-2DV
HCM Series
Horizontal Cable Management
• Variety of sizes and styles to suit any application
• D-RING cable manager can mount to both rackrail
or a wall
• Accommodate up to 240 CAT5e cables using the
recommended 50% fill rate, depending on model
• Durable flat black powder coat finish
* For more cable management solutions, see the
Middle Atlantic Produtcs Master Catalog or visit
middleatlantic.com
HCM-2D
HCM-1D
HCM-1DV
HCM-1
HCM-1V
HCM-1DR
HCM-2DR
D-RING
mounts to both
rackrail & wall
EXCEPTIONAL SUPPORT & PROTECTION
™
C U S TO M I ZA BL E S P E C I F I C AT I O N CL I P S AVA I LA BL E AT MI D D L E AT L A N T I C
.
C O M
Features
C U S TO M I ZA BL E S P E C I F I C AT I O N CL I P S AVA I LA BL E AT MI D D L E AT L A N T I C
.
C O M
US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca
Architects’ and Engineers’ Specifications
96-337 / rev c / 5-11-20 / HCM Series
EIA/TIA Compliant
US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

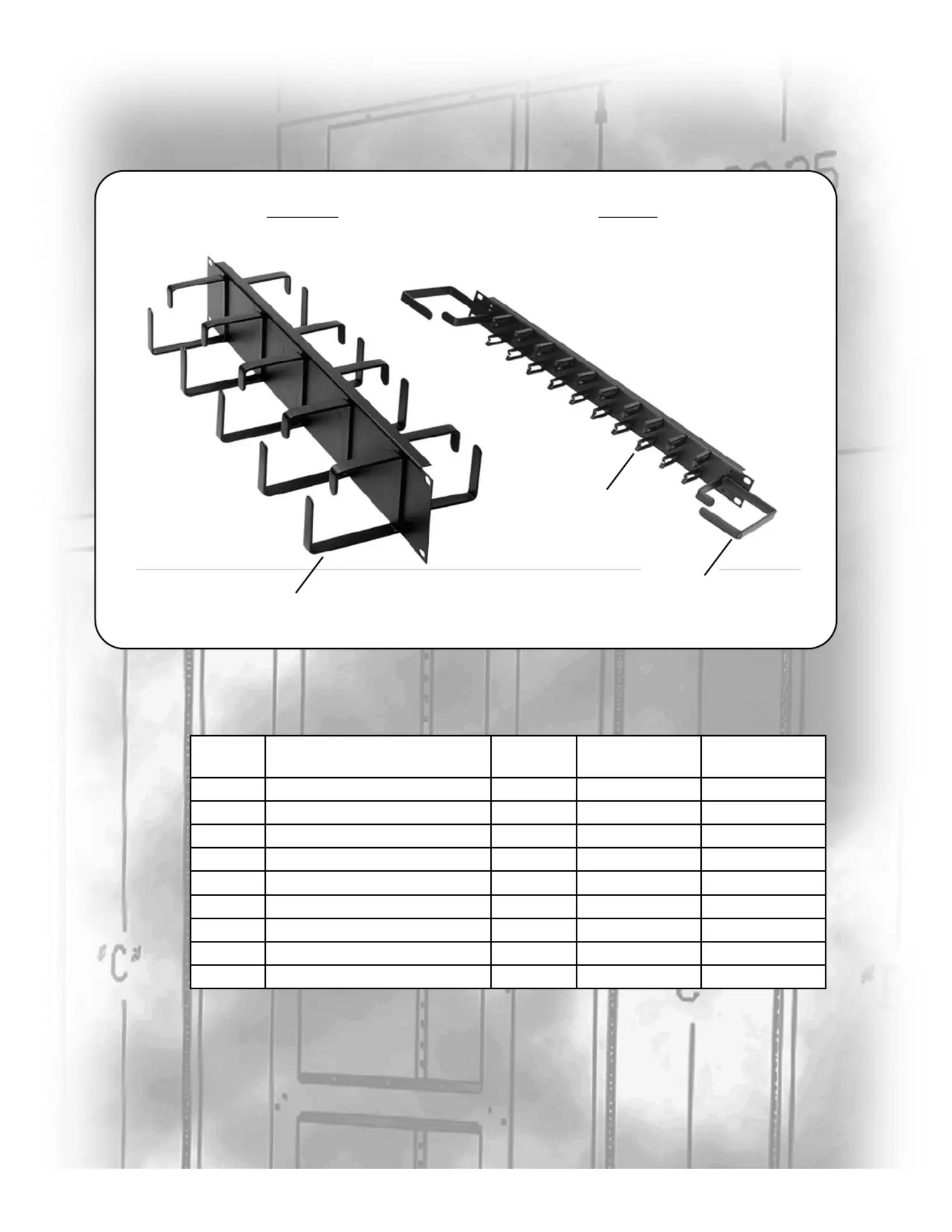

Part # Description Panel Width
Cable Rings*
(see reference guide)
End Rings*
(see reference guide)
HCM-1 1-3/4" (1 sp.) "micro-clip" style 19” A -
HCM-1V 1-3/4" (1 sp.) "micro-clip" style w/ end rings 19” A D
HCM-1D 1-3/4" (1 sp.) D-RING style 19” B -
HCM-1DV 1-3/4" (1 sp.) D-RING style w/ end rings 19” B D
HCM-2D 3-1/2" (2 sp.) D-RING style 19” D -
HCM-2DV 3-1/2" (2 sp.) D-RING style w/ end rings 19” D D
HCM-1DR 1-3/4" (1 sp.) D-RING style, front and rear 19” C -
HCM-2DR 3-1/2" (2 sp.) D-RING style, front and rear 19” E -
D-RING wall mount / rackmount D-RING - D -
H
CM-2DR
HCM-1V
Cable Rings
(D shown)
Cable Rings
(A shown)
End Rings
(D shown)
US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca
A
B
C
D E

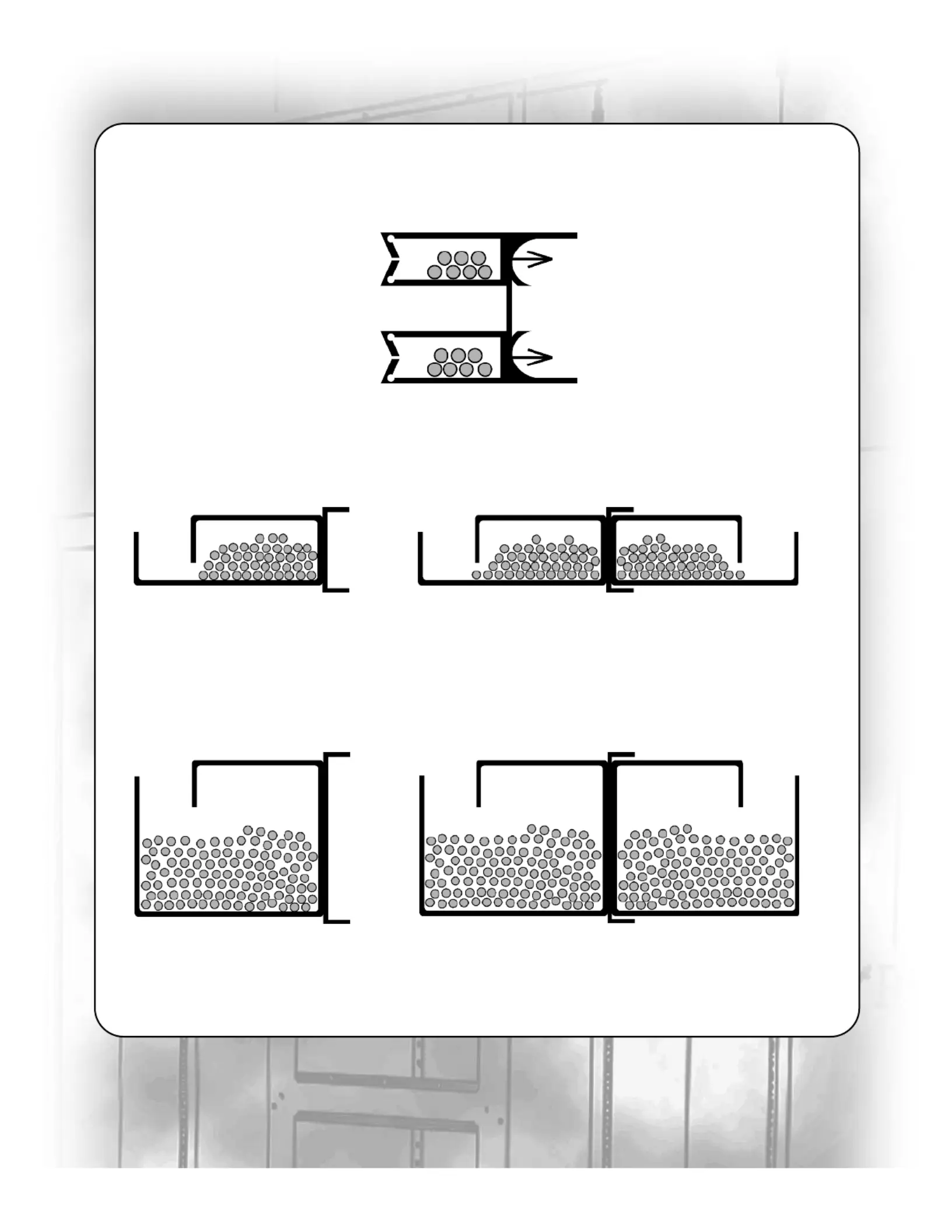

Cabling area: 0.90 in
2
#
of typical CAT5e cables at
recommended 50% fill rate: 14
Cabling area: 3.125 in
2
# of typical CAT5e cables at
recommended 50% fill rate: 50
Cabling area: 7.5 in
2
# of typical CAT5e cables at
recommended 50% fill rate: 120
* Cable Capacity Reference Guide
Cabling area: 6.25 in
2
# of typical CAT5e cables at
recommended 50% fill rate: 100
Cabling area: 15 in
2
# of typical CAT5e cables at
recommended 50% fill rate: 240
