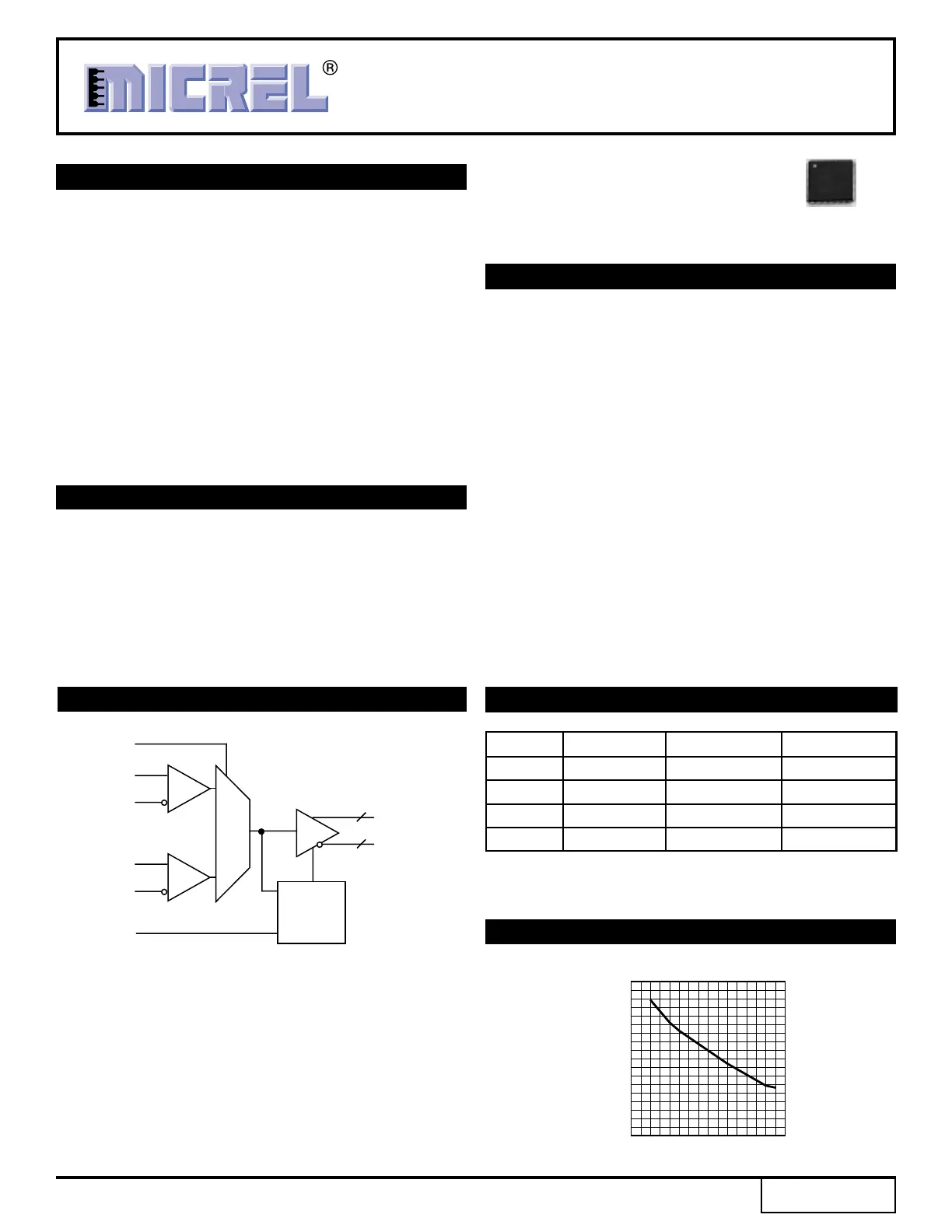

1
Precision Edge
®
SY89823L
Micrel, Inc.
M9999-091908
[email protected] or (408) 955-1690
FEATURES
■22 differential HSTL (low-voltage swing) output pairs
■HSTL outputs drive 50Ω to ground with no offset
voltage
■3.3V core supply, 1.8V output supply for reduced
power
■LVPECL and HSTL inputs
■Low part-to-part skew (200ps max.)
■Low pin-to-pin skew (50ps max.)
■Triple-buffered output enable (OE)
■–40°C to +85°C temperature range
■Available in a 64-pin EPAD-TQFP
The SY89823L is a high-performance bus clock driver with 22
differential High-Speed Transceiver Logic (HSTL), 1.5V compatible
output pairs. The device is designed for use in low-voltage (3.3V/
1.8V) applications that require a large number of outputs to drive
precisely aligned, ultra-low skew signals to their destination. The
input is multiplexed from either HSTL or Low-Voltage Positive-
Emitter-Coupled Logic (LVPECL) by the CLK_SEL pin.
The Output Enable (OE) is synchronous and triple-buffered so
that the outputs will only be enabled/disabled when they are already
in the LOW state. This avoids any potential of generating a runt clock
pulse when the device is enabled/disabled, as can occur with an
asynchronous control. The triple-buffering feature provides a three-
clock delay from the time the OE input is asserted/de-asserted to
when the clock appears at the outputs.
The SY89823L features low pin-to-pin skew (50ps max.) and low
part-to-part skew (200ps max.), performance previously unachievable
in a standard product having such a high number of outputs. The
SY89823L is available in a single, space-saving package, enabling
a lower overall cost solution.
All support documentation can be found on Micrel’s web site at:
www.micrel.com.
3.3V, 500MHz 1:22
DIFFERENTIAL HSTL (1.5V)
FANOUT BUFFER/TRANSLATOR
DESCRIPTION
Precision Edge
®
SY89823L
LOGIC SYMBOL
CLK_SEL
HSTL_CLK
/HSTL_CLK
LVPECL_CLK
/LVPECL_CLK
OE
0
1
22
22
Q0 - Q21
/Q0 - /Q21
EN
ENABLE
LOGIC
Rev.: DAmendment: /0
Issue Date:September 2008
Precision Edge
®
Precision Edge is a registered trademark of Micrel, Inc.
OE
(1)
CLK_SELQ
0
-Q
21
/Q
0
-/Q
21
00LOWHIGH
01LOWHIGH
10HSTL_CLK/HSTL_CLK
11LVPECL_CLK/LVPECL_CLK
Note:
1.The output enable (OE) signal is synchronized with the low level of the
HSTL_CLK and LVPECL_CLK signal.
TRUTH TABLE
APPLICATIONS
■High-performance PCs
■Workstations
■Parallel processor-based systems
■Other high-performance computing
■Communications
TYPICAL PERFORMANCE
0
100
200
300
400
500
600
700
800
900
00.20.40.60.811.21.41.6
OUTPUT AMPLITUDE (mV)
OUTPUT FREQUENCY (GHz)
Output Amplitude
vs. Frequency
