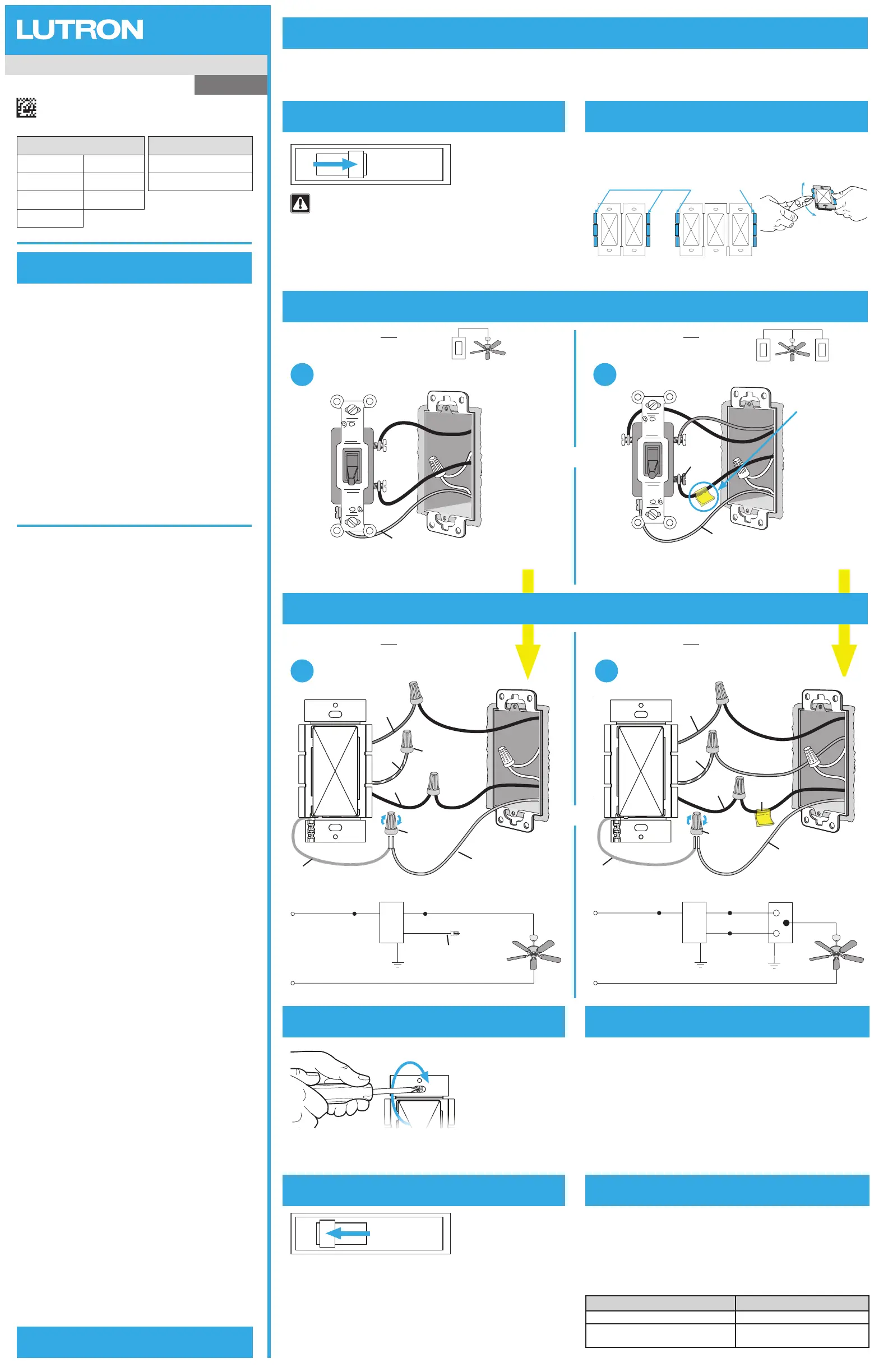

Single-Pole / 3-Way Quiet Fan-Speed Controls

®

Use our mobile friendly self-paced

installation tool:

www.lutron.com/wiringwizard

Find more product information:

www.lutron.com/support

- Videos

- Frequently Asked Questions

- Online Chat (8 am – 5 pm EST)

Call us:

U.S.A. | Canada | Caribbean

1.844.LUTRON1 (588.7661) (24/7)

Mexico

+1.888.235.2910

Others

+1.610.282.3800

Help

Ground wire

(bare or green)

For fans switched from one location:



Use wiring diagram 5A below





Use wiring diagram 5B below



For fans switched from one location:

For fans switched from two locations:

For fans switched from two locations:

5A

IMPORTANT

1. Do not use control with exhaust fans

2. CAUTION: To avoid overheating and possible damage

to other equipment, do not use to control receptacles,

lighting, fluorescent lighting fixtures, or transformer-

supplied appliances.

3. Do not use control with a fan and light that operate with

the same switch.

4. When no “grounding means” exists within the wallbox

for an existing switch or dimmer, the National Electrical

Code® (NEC®) allows a switch/dimmer to be installed as a

replacement as long as: 1) a nonmetallic, noncombustible

faceplate is used with nonmetallic attachment screws or

2) the circuit is protected by a ground fault circuit interrupter.

Lutron wallplates meet this requirement.

5. The use of ceiling fan controls on circuits protected by

a ground fault circuit interrupter (GFCI) may result in

nuisance tripping and is not recommended.

6. Use control with a ceiling paddle fan only. Use only one

ceiling paddle fan per control.

7. For new installations, wire a test switch before installing

the control.

8. Set multi-speed fans to their highest setting before

installing controls.

9. Use only one control in a 3-way circuit.

10. Install in accordance with all national and local

electrical codes.

11. Clean control with a soft damp cloth only. Do not use

any chemical cleaners.

12. Not for use with DC motor fans.

www.lutron.com/support

Different-

colored screw

IMPORTANT:

Tag or mark the

common wire.

This is usually

connected to

a darker (or

different) colored

screw than the

others. This does

NOT include the

ground screw.

Ground wire

(bare or green)

4A4B

Limited Warranty:

www.lutron.com/TechnicalDocumentLibrary/369-119_Wallbox_Warranty.pdf

Lutron is a trademark or registered trademark of Lutron Electronics Co., Inc. in the

US and/or other countries.

All other product names, logos, and brands are property of their respective owners.

©2017-2021 Lutron Electronics Co., Inc.

English

P/N 0301990 REV A

Please read before installing.

English

For additional Troubleshooting, please visit www.lutron.com/support

SymptomSolution

Toggle works in reverse (for single pole).• Verify Step 5A.

Fan doesn’t run at full speed.

• Verify that fan is set to highest

speed. See Step 1.

Troubleshooting

Models

120 V~ 60 Hz 1.5 A120 V~ 60 Hz 2 A

AYFSQ-FDVWFSQ-FDVFSQ-F-HO

CTFSQ-FLEFSQ-FDVSCFSQ-F-HO

DVFSQ-FTGFSQ-F

DVSCFSQ-F

When combining controls in one wallbox, remove all inner side sections

before wiring (see below). Use pliers to bend each side section back

and forth until it breaks off. No derating is required.

ON

OFF

WARNING: SHOCK HAZARD.

May result in serious injury or death. Turn off

power at circuit breaker or fuse before installing.

Bend back and forth

Each Control Has Inside

Sections Removed

Middle Control Has Two

Side Sections Removed

Do Not Remove

Outside Sections

120 V~

60 Hz

Line / Hot

Red

Red/White

Green

Ground

Neutral

Fan

Control

Ground wire

(bare or green)

Marked

wire

Red

Red /

White

Insert and

twist to

tighten

Green wire

120 V~

60 Hz

Line / Hot

Red

Red/

White

Green

Ground

Neutral

Fan

Control

3-Way

Switch

Ground

5B

Ground wire

(bare or green)

Insert and

twist to

tighten

Green wire

Red

Red /

White

No connection

(cap with wire nut)

Black

Black

BlackBlack

No connection

(cap with wire nut)

NOTE: For ceiling-mounted, paddle fans only

1

Set fan to highest speed

2

Turn power OFF at circuit breaker

4

Determine wiring type (ONLY ONE FAN CAN BE USED PER CONTROL)

5

Remove existing switch and connect the new fan control (appropriately choose ONE of the diagrams below)

6

Mount the control using the provided screws

8

Turn power ON at circuit breaker

3

Remove side sections (if ganging devices)

7

Install the faceplate (not included)

9

Installation is complete!

OR

OR

NOTE:Only one control can be used per circuit.
