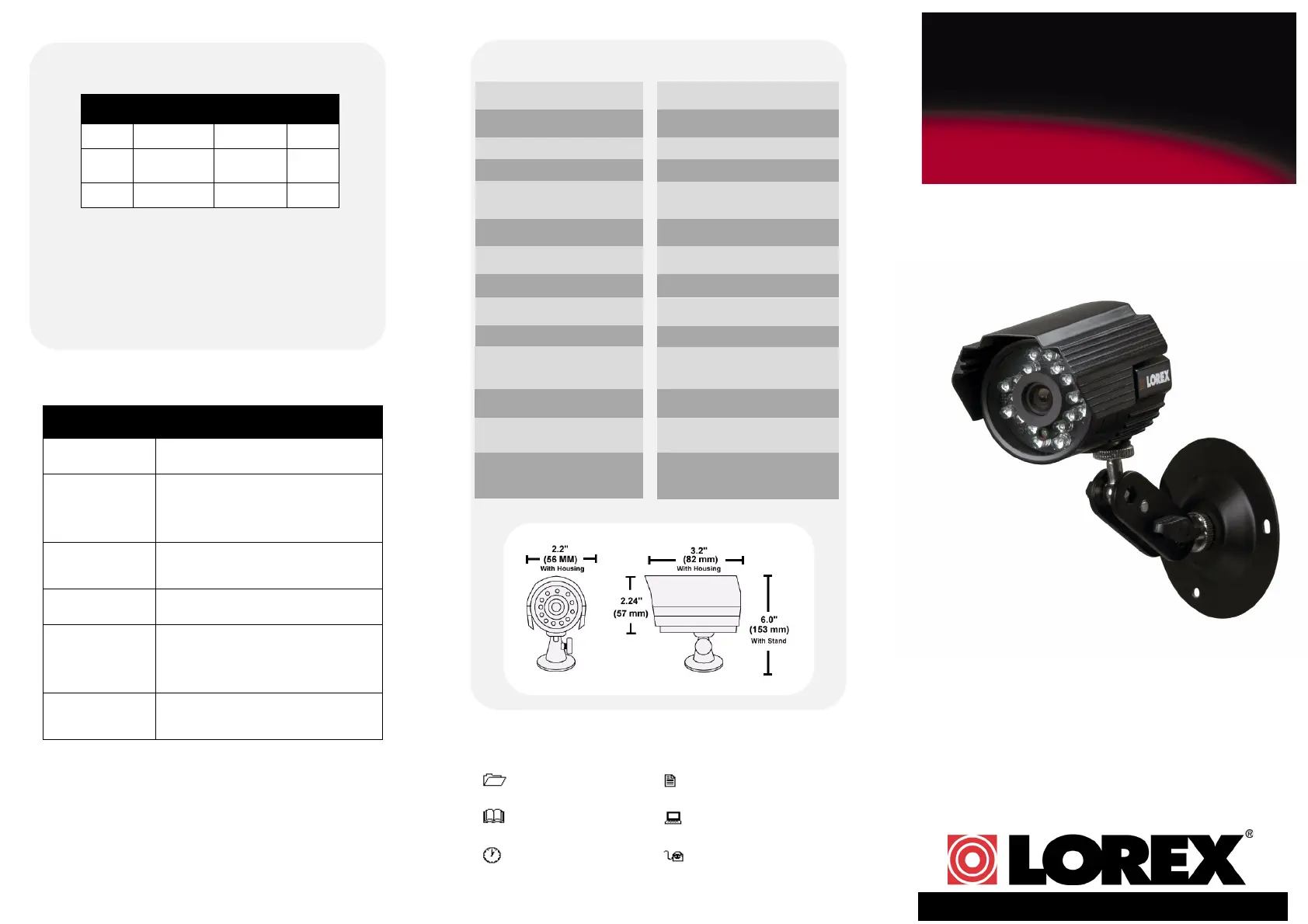

QUICK START GUIDE

www.lorextechnology.com

Lorex Technologies Inc.

Copyright © 2010 Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product

design, specifications and prices, without notice and without incurring any obligation. E&OE

Cable Extension Options

INDOOR / OUTDOOR

COLOR CAMERA

ProblemSolution

No Picture/Signal•Ensure connections are properly connected.

•Ensure the connector pins are not bent.

Picture is too bright•Ensure your camera isn’t pointed directly at a

source of light (e.g sun or spot light).

•Slide the sunshade (bullet cameras only)

forward to block excess light.

•Move your camera to a different location.

Picture is too dark•Check the brightness and contrast settings of

the device your camera connects to (TV/

Monitor/DVR).

Night Vision is not

working

•The night vision activates when light levels

drop. The area may have too much light.

Picture is not clear•Check the camera lens for dirt, dust or spider

webs. Clean the lens with a soft, clean cloth.

•Make sure that the cable run is within the

limitations specified in the section ' Cable

Extension Options'

Bright spot in video

when viewing camera

at night

•Night vision reflects when pointing a camera

to a window. Move the camera to a different

location.

Troubleshooting

OptionCable Type

1

60ft DIN

300ft / 92m5

2

100ft DIN/

Universal

300ft / 92m3

3

250ft DIN

250ft / 76m1

Max. Extension

Distance

Max. # of

Extensions

MODEL: SG7560B

English Version 1.0

Image Sensor1/4” Color

Video Format / Pixels

Horizontal Resolution

Environmental Rating

IR / Night Vision Range

Field of View (diagonal)

Minimum Illumination

Termination

NTSC: 656(H) x 492 (V)

480 TVL

IP 66

73 Degrees

0 LUX (IR LEDs on)

3 LUX @ F 1.2 (IR LEDs off)

6-Pin DIN

Lens / Lens Mount3.6 mm F1.8/ Fixed

Camera Specifications

Notes:

1.Cable run recommendation based on typical camera power consumption (up

to 500mA). For specialty cameras with higher current consumption,

maximum cable run may be reduced. Consider providing power to the camera

at the camera side rather then at the end of the extension cable.

2.Indicators that your cable run may be too long:

• Video is permanently Black & White (even during day time)

• Video is distorted

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

www.lorextechnology.com

IT’S ALL ON THE WEB!

Extend the cable run for your camera up to 300ft depending on

the cable type used. See table below:

Operating Temperature

14°F ~ 122°F

(-10°C ~ 50°C)

Power Requirement

12V DC ±10%

Power ConsumptionWith IR: Max 280mA

W/O IR: Max 90mA

18 IR LED/55 ft. (17 m)

Video Output

1.0 Vpp @ 75ohm

WITH NIGHT VISION AND AUDIO

Weight (with stand)

Weight (w/o stand)

0.75 lbs. / 0.34 kg

0.45 lbs. / 0.22 kg
