Lorex Technologies Inc.

Copyright © 2011 Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

specifications and prices, without notice and without incurring any obligation. E&OE

Cable Extension Options

ProblemSolution

No Picture/Signal•Ensure your TV is on the correct input channel.

Common terms of an input channel: INPUT,AV

CHANNEL, LINE1, LINE2, AUX.

•If your camera is connected to a VCR/DVR,

ensure it is properly connected to your TV/

Monitor.

•Ensure connections are properly connected.

•Ensure the camera power supply is plugged

in.

Picture is too bright•Ensure your camera isn’t pointed directly at a

source of light (e.g sun or spot light).

•Move your camera to a different location.

Picture is too dark•If using during the day, the camera may not

be getting enough light. Adjust position of

camera as needed. Check the brightness and

contrast settings of the device your camera

connects to (TV/Monitor/DVR).

Picture is not clear•Check the camera lens for dirt, dust,

spiderwebs. Clean the lens with a soft, clean

cloth.

•Make sure that the cable run is within the

limitations specified in the section ' Cable

Extension Options'

BNC connection does

not connect to my TV

•Use a BNC to RCA adapter at the end of the

extension cable.

Troubleshooting

OptionCable Type

1

Regular BNC (sup-

plied with cam-

era)

180ft / 55m3

2

Lorex 'RG59' or

'Coax' or ' Coax-

ial' BNC (sold

separately)

300ft / 92m5

3

Lorex Universal

Cable

(sold separately)

300ft / 92m3

Max. Cable

Run Distance

Notes:

1.For optimal performance, consider using option 2 or 3. Preference for using

the same cable type for the entire distance.

2.Cable run recommendation based on typical camera power consumption

(up to 500mA). For specialty cameras with higher current consumption,

maximum cable run may be reduced. Consider providing power to the

camera at the camera side rather then at the end of the extension cable.

3.Indicators that your cable run may be too long:

• Video is permanently Black & White (even during day time)

• Video is distorted

Max. # of

Extensions

Image SensorHigh Resolution 1/4" Sensor

Camera Specifications

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

www.lorextechnology.com

IT’S ALL ON THE WEB!

Extend the cable run for your camera up to 300ft or more

depending on the cable type used. See table below:

*Not for outdoor use.

SECURITY CAMERA

VQ1138H Series

English Version 1.0

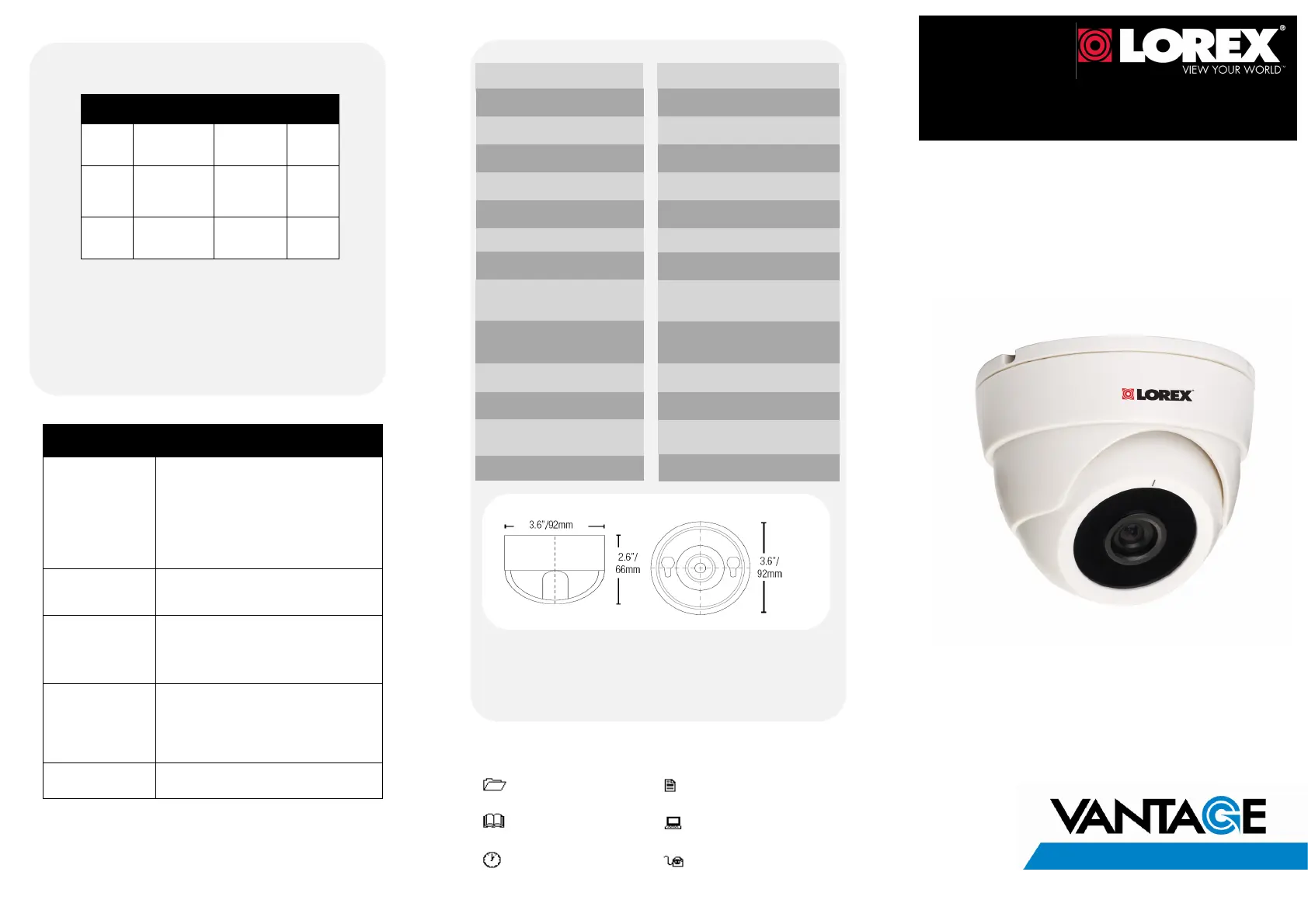

QUICK START GUIDE

Video Format / Pixels

Horizontal Resolution

Video Output

IR / Night Vision Range

Field of View (diagonal)

Minimum Illumination

Termination

NTSC:656(H)×492(V)

480 TVL

Comp. 1.0 Vpp @ 75ohm

70 Degrees

0.5 LUX

Video: BNC Female

Power: Barrel Female

Lens / Lens Mount3.6 mm F2.0 / Fixed

Operating Temperature

14°F ~ 122°F

(-10°C ~ 50°C)

Power Requirement

12V DC ±10%

Power Consumption75 mA

Weight

0.44lbs. / 0.2 kg

N/A**

Environmental Rating

Indoor only*

**This camera does not have IR LEDs. However, this camera supports low light viewing

with the help of external lighting.
