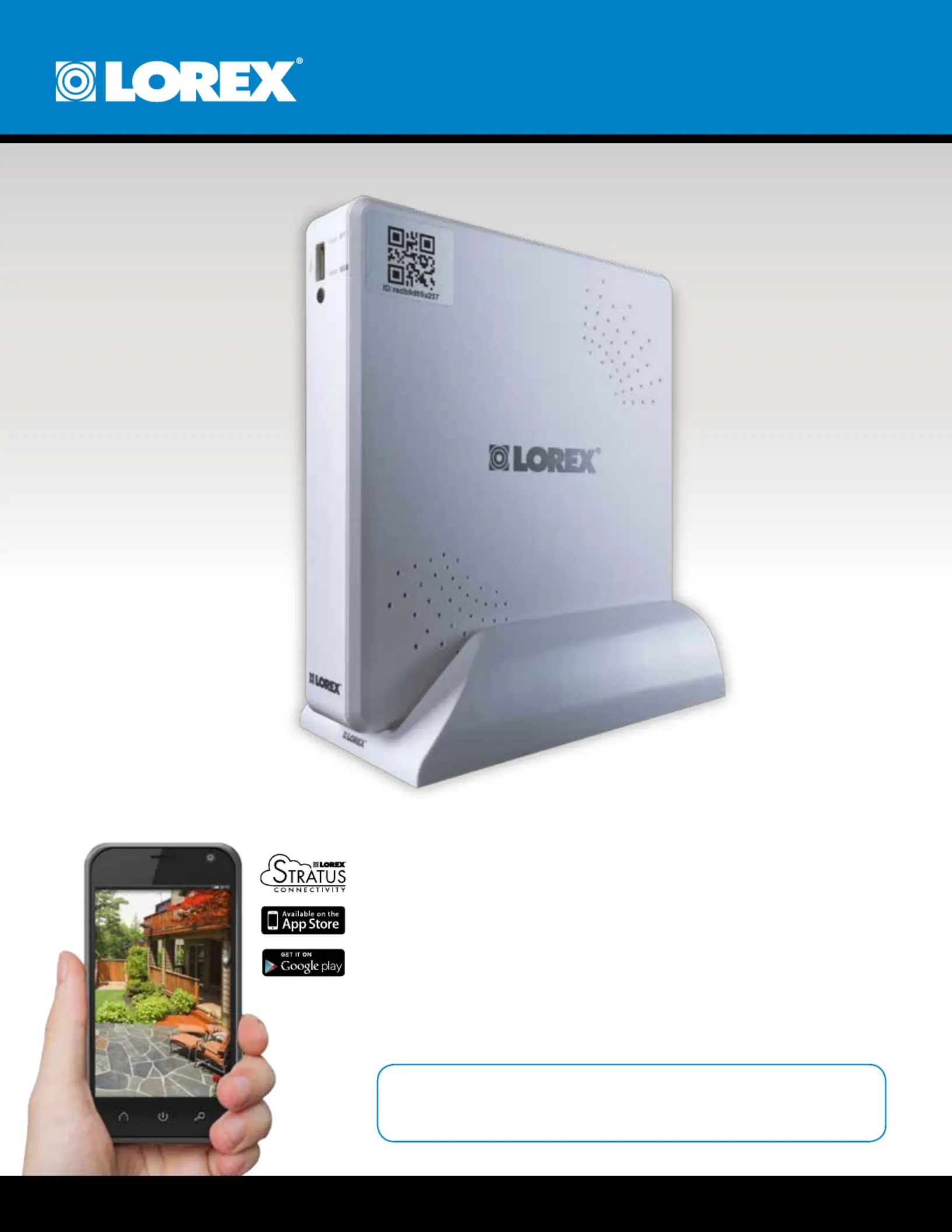

STAY CONNECTED FROM ANYWHERE IN THE WORLD
View your world with this high capacity DVR boasting a
compact vertical design and free apps for your smartphone
or tablet. Experience super resolution recording that offers
clear, true-to-life images.
www.lorextechnology.com
LH040 Series DVRs
4
500GB
Channels
HDD
SECURITY DIGITAL VIDEO RECORDER
960H
•Tablet / smartphone viewing and playback
1
•Lorex Stratus Connectivity - 3 step setup
•Superior 960H Resolution - 34% more detailed and true-to-
images
2
•HDMI cable included for simple connection to HDTVs
3
•Record to included security grade hard drive with no recurr
fees
•Instant email alerts with snap shot attachment
•Continuous, scheduled, and motion recording
•Advanced mobile apps with live viewing, playback, video
recording, and snap shot
•PC and Mac compatible
•H.264 video compression
4
•Flexible DVR positing (Horizontal or Vertical)
5
•Neat cable management
•3 video outputs (HDMI, VGA and BNC) to connect multiple
monitors
•Pentaplex operation - view, record, playback, back up &
remotely control the system simultaneously
•PTZ cameras supported (RS485) remotely control through
•Accurate time stamps with NTP & Daylight Savings Time
•Automatic firmware upgrade over the Internet ensures you
system is secure and up to date
5
FEATURES:
www.lorextechnology.com
LH040 Series DVRs
SECURITY DIGITAL VIDEO RECORDER
SYSTEM
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 4 ch
Inputs/Outputs
Video IN 4 x 1Vp-p, CVBS, 75ohms, BNC
Video OUT 1 x BNC
VGA OUT Yes
HDMI Yes
Audio IN 2 Line in(RCA), G.711
Audio OUT 1 line OUT (RCA), G.711
USB Port 1 at the for mouse, 1 at the front for firmware upgrade back
& USB backup
Alarm IN Without Alarm
Alarm OUT Without Alarm
Video Output Resolution 1920x1080 (HDMI), 1440x900, 1280x1024, 1024x768,
800x600
PTZ control RS-485 Pelco D & P Protocol
Display
Live Display 1, 4
Live Display Speed 120 NTSC, 100 PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Controller
Motion Area Setting Adjustable grid (30x44) NTSC
Adjustable grid (36x44) PAL
Sensitivity levels 8
Firmware Upgrade Automatic over the Internet & via USB device and Network
User Authority By user group
Time Synchronization Auto time sync by NTP server
RECORDING
Video Compression H.264
Audio Compression G.711
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 3 levels
Recording Schedule By hour, by day, by recording mode, by motion, by ch
Pre Recording Max. 10 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, Auto-recovery after power failure
Covert Video Yes
PLAYBACK
Playback Channel 1~4 Adjustable
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By time & event
Log Search Up to 100,000 lines for system, configuration changes,
motion/alarm detected, account, record and storage
Audio Play Yes
STORAGE & ARCHIVE
Storage Up to 1 HDD’s (SATA)
Maximum Capacity up to 4TB
Backup Media USB Flash Drive & HDD
Backup File Format H.264 file (AVI generator included)
CONNECTIVITY
Cloud Connection Lorex Stratus Connectivity
Supported Operating Systems Windows™
Mac OS
Remote Software Client Software (PC) & Safari (Mac)
Email notification Text with snapshot
Instant Smart Phone iPad
®
, iPhone
®
, Android™
& Tablet Support
†
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol TCP/IP / DHCP / UDP / DDNS / PPPoE
Network Interface 10/100-Base-TX, RJ-45
Network Speed Control 48Kb ~ 8MB/sec.
GENERAL
Power Consumption Approx. 10 watts (no HDD included)
Supply Voltage 100VAC-240VAC, 12VDC , 2A, 50/60Hz
Unit Dimensions DVR with Stand: 90mmm x193mm x 208mm
(W x D x H) (3.5”x7.6”x8.2”)
Unit Weight (KGs) DVR: 0.39 kg/0.86 lbs (No HDD Included)
DVR Stand: 0.12 kg/0.27 lbs
Operating temperature ° ~ 104° F / 32 0° ~ 40° C
Humidity 90 10 ~ % NC
SECURITY DIGITAL VIDEO RECORDER
DVR Specifications
www.lorextechnology.com
LH040 Series DVRs
RECORDING RESOLUTION (PIXELS) & SPEED (FPS - FRAMES PER SECOND)
FPS
960H Mode D1 Mode
960H ½ 960H ¼ 960H D1 ½ D1 ¼ D1 (CIF)
960 x 480 960 x 240 480 x 240 720 x 480 720 x 240 360 x 240
4ch
Total
120 120 120 120 120 120
Per channel
30 30 30 30 30 30
