Pagina 1/2

Port Fa

4 PoE Outputs, 802.3

Quick

IFP-0502

ast Ethernet Industrial PoE Switch

at PoE Plus, 1 Port SC Multi

Mod

Installation Guid

de Fiber, 2km

v1.0

IFP-0502 Page 1

Overview

The LevelOne IFP-0502 Industrial Fast Ethernet PoE+ Switch

provides 4 ports at 10/100M TX PSE to supply power and

internet to PoE+ compatible Powered Devices (PD) in a

network setting. The multi-modal bre IFP-0502 switch supplies

15.4 Watts for IEEE802.3af or 30 Watts (Max 36W) for

IEEE802.3at per port, and is congured for large industrial or

outdoor networks, with a maximum networking range of 2km.

With an industrial-standard DIN-rail mount for easy cabinet

deployment or wall mount for versatile network congurations,

the IFP-0502 comes in a sturdy metal casing rated to IP30 for

installation in industrial settings where humidity, dust, high or

low operating temperatures or vibrations could cause standard

devices to fail.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or congure required, truly

plug and play.

IFP-0502 Page 2

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully

complied with IEEE 802.3at PoE standard at maximum 30W

power budget per port. It helps to save infrastructure wiring

costs dramatically by eliminating electric wiring and less UPS

needed. Also, it is compatible with IEEE802.3af standard PD

devices.

IFP-0502 Page 3

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for trac control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buer

• Provides one Port SC Multi-Mode Fiber with a maximum networking range

of 2km.

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 44~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC full load

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFP-0502

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

IFP-0502 Page 4

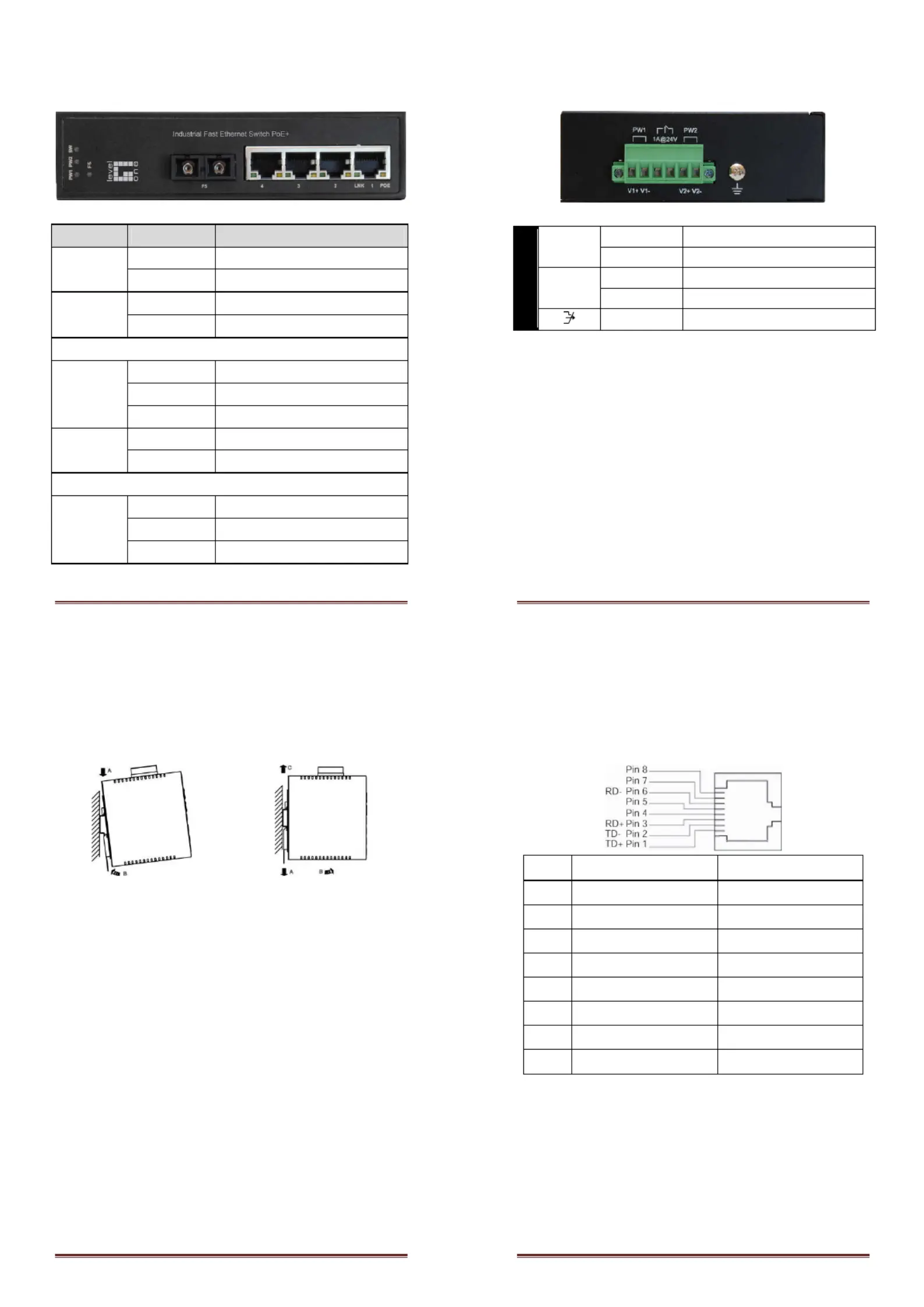

LED Status

LED

Status

Description

PWR 1, 2

ON Power On

OFF Power O

SW (relay)

ON both PW1 and PW2 are connected

OFF only PW1 or PW2 is connected

10/100

Base

LNK(1 ~ 4)

ON TX link is detected

OFF TX port is not detected

Flashing TX port is active

POE(1 ~ 4)

ON PD is connected

OFF No PD is connected

Fiber

ON FX ber is detected

OFF FX ber is not detected

Flashing FX ber is active

IFP-0502 Page 5

Power Input

Terminal Block

PW1

44–56VDC

–

Power Ground

PW2

44–56VDC

–

Power Ground

Relay Output

1A @ 24VDC

IFP-0502 Page 6

DIN Rail Mount

• Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the mounting

surface until it audibly snaps into place

• Start-up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

• Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

IFP-0502 Page 7

10/100Base-TX Connector

The following lists the pin-out of 10/100Base-TX ports.

Standard Port

Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

Product specificaties

Merk:	LevelOne
Categorie:	Schakelaar
Model:	IFP-0502
Kleur van het product:	Zwart
Gewicht:	470 g
Breedte:	36 mm
Diepte:	105 mm
Hoogte:	142 mm
Gewicht verpakking:	180 g
Breedte verpakking:	65 mm
Diepte verpakking:	165 mm
Hoogte verpakking:	215 mm
Materiaal behuizing:	Metaal
Internationale veiligheidscode (IP):	IP30
LED-indicatoren:	Link, Power
Type verpakking:	Doos
Snelstartgids:	Ja
Land van herkomst:	Taiwan
Certificering:	FCC, CE, RoHS, VCCI\nEN55022/24 \nEN55011\nEN50121-3-2\nEN60068-2-6\nEN60068-2-27\nEN60068-2-32
Intern geheugen:	1 MB
Netwerkstandaard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Temperatuur bij opslag:	-40 - 75 °C
Luchtvochtigheid bij opslag:	5 - 95 procent
Rack-montage:	Nee
Output current:	1 A
Spanning:	24 V
Veiligheid:	EN60950-1
Ophangsysteem voor aan de muur:	Ja
Auto MDI/MDI-X:	Ja
Power over Ethernet (PoE):	Ja
Switchingcapaciteit:	1 Gbit/s
MAC-adrestabel:	1024 entries
10G support:	Nee
Datastroombeheer:	Ja
Switch type:	Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten:	4
Type basis-switching RJ-45 Ethernet-poorten:	Fast Ethernet (10/100)
Packet buffergeheugen:	1 MB
Full duplex:	Ja
Koperen ethernetbekabelingstechnologie:	10BASE-T, 100BASE-TX
Wand montagekit:	Ja
Auto-negotiation:	Ja
Stroomverbruik (typisch):	3.76 W
Bedrijfstemperatuur (T-T):	-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 95 procent
Totaal Power over Ethernet (PoE)-budget:	126 W
Aantal Power over Ethernet plus (PoE +)-poorten:	4
Store-and-forward:	Ja
Klemmenblok inclusief:	Ja
Vezel-optische connector:	SC
Fibre channel-poorten:	1
Packet forwarding rate (10 Mbps):	14880 pps
Packet forwarding rate (100 Mbps):	148000 pps
Transmissie afstand (max):	2 km
Fiber type:	Multimode
