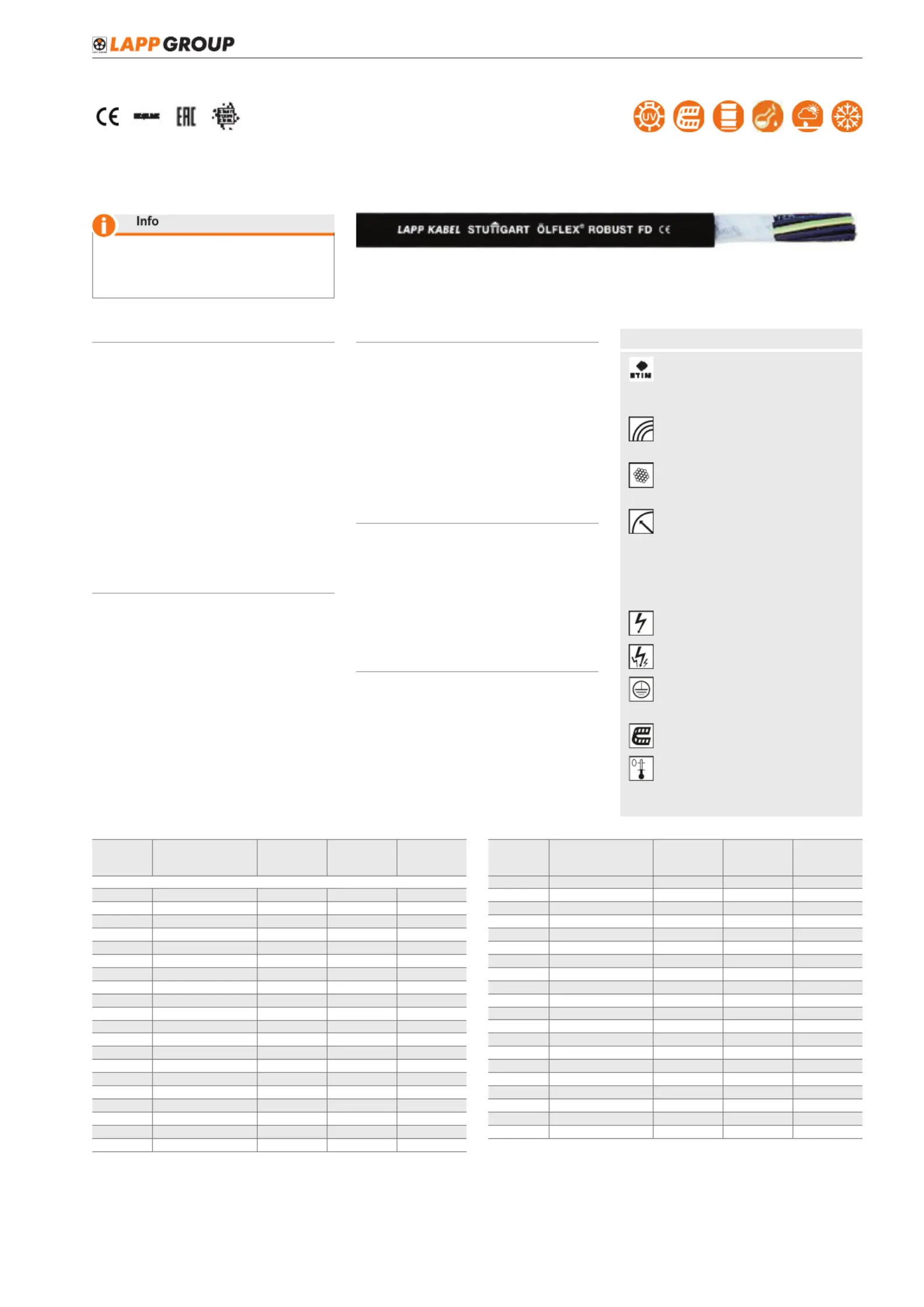

Power and control cables

Power chain applications Harsh conditions•

For current information see: www.lappgroup.com

ÖLFLEX

ROBUST FD

Highly ﬂexible, all-weather control cable with TPE sheath resistant to a wide range of chemical media

• Extended line for high loads in power

chains

• Good chemical resistance

Beneﬁts

• Outstanding weather, ozone and UV

resistance together with the wide

temperature range enable versatile use for

indoor and outdoor applications

• Resistant to contact with bio-oils, fats,

waxes and their emulsions with a plant,

animal or synthetic basis

• Good resistance to ammonia compounds

and biogases

• Good resistance to cold and hot water as

well as water-soluble cleaning and cooling

agents

• Suitable for frequent steam cleaning

• Low particle emission in ﬂexing chain

applications

Application range

• In power chains or mobile machine parts

• Machine tool building, medical technology,

laundries, car washing equipment,

chemical industry, composting plants,

sewage works

• Food and beverage industry, especially

for production and processing of milk and

meat products

• For indoor and outdoor use

Product features

• Designed for 10 million alternating bending

cycles and horizontal travel distances up

to 100 metres

• Highly resistant to oil and chemicals

• Ozone-, UV- and weather-resistant

according to EN 50396 and HD 605 S2

• Hydrolysis-resistant to warm and hot water

• Good chemical resistance to ester-based

hydraulic ﬂuids

• Flexible at temperatures down to -40 °C

Norm references / approvals

• Based on VDE 0250 / 0285

• Clean room classiﬁcation for individual

items on request

• Certiﬁed resistance to disinfectant and

cleaning solutions used in food and

beverage industry

• For use in power chains: Please comply

with assembly guideline appendix T3

Design

• Extra-ﬁne wire, tin-plated copper strands

• Core insulation made of TPE

• Cores twisted together in extremely short

lay lengths

• Fleece wrapping

• Robust sheath made of special halogen-

free TPE, black (RAL 9005)

Technical data

Classiﬁcation

ETIM 5.0 Class-ID: EC000104

ETIM 5.0 Class-Description: Control

cable

Core identiﬁcation code

black cores with printed white numbers

(VDE 0293-1)

Conductor design

Extra-ﬁne wire according to VDE 0295,

class 6/IEC 60228 class 6

Minimum bending radius

For ﬂexible use:

7.5 x cable diameter

(at temperatures < 70°C)

10 x cable diameter

(at a max. temperature of 105°C)

Fixed installation: 4 x outer diameter

Nominal voltage

/U: 300/500 V

Test voltage

4000 V

Protective conductor

G = with GN-YE protective conductor

X = without protective conductor

Alternating bending cycles

10 million cycles

Temperature range

Flexing: -40°C to +105°C

Fixed installation: -50°C to +110°C

short-term: up to +120°C

Article

number

Number of cores

and mm² per

conductor

Outer

diameter

[mm]

Copper index

(kg/km)

Weight (kg/

km)

ÖLFLEX

ROBUST FD

0026536 2 X 0.5 9.6 346.1

0026537 3 G 0.5 6.6 14.4 45

0026538 4 G 0.5 19.2 557.3

0026539 5 G 0.5 8 24.0 67

0026540 7 G 0.5 9.6 33.6 93

0026544 12 G 0.5 11.6 57.6 142

0026545 18 G 0.5 13.9 86.4 208

0026546 25 G 0.5 120.0 29817.3

0026547 2 X 0.75 6.4 14.4 41

0026501 3 G 0.75 6.9 21.6 51

0026502 4 G 0.75 28.8 697.7

0026503 5 G 0.75 8.6 36.0 87

0026504 7 G 0.75 10.4 50.4 127

0026505 12 G 0.75 12.2 86.4 182

0026506 18 G 0.75 14.9 129.6 277

0026507 25 G 0.75 18.5 180.0 421

0026508 2 X 1.0 6.8 28.8 49

0026509 3 G 1.0 28.8 637.4

0026510 4 G 1.0 8.2 38.4 82

0026511 5 G 1.0 9.2 48.0 105

Article

number

Number of cores

and mm² per

conductor

Outer

diameter

[mm]

Copper index

(kg/km)

Weight (kg/

km)

0026516 7 G 1.0 11.1 67.2 157

0026517 12 G 1.0 13.3 115.2 226

0026518 18 G 1.0 15.9 172.8 345

0026519 25 G 1.0 19.8 240.0 547

0026548 2 X 1.5 8 28.8 73

0026521 3 G 1.5 8.9 43.2 90

0026522 4 G 1.5 9.9 57.6 118

0026523 5 G 1.5 72.011 149

0026524 7 G 1.5 13.4 100.8 233

0026525 12 G 1.5 15.8 172.8 322

0026526 18 G 1.5 18.9 259.2 494

0026527 25 G 1.5 23.5 360.0 695

0026531 4 G 2.5 96.011.8 181

0026532 5 G 2.5 12.9 120.0 228

0026533 7 G 2.5 15.7 168.0 329

0026534 12 G 2.5 18.7 288.0 491

0026541 4 G 4.0 13.8 153.6 261

0026551 4 G 6.0 14.8 230.4 356

0026561 4 G 10.0 20.1 384.0 596

0026571 4 G 16.0 23.8 614.4 910

Unless speciﬁed otherwise, the shown product values are nominal values at room temperature. You can receive further values, such as tolerances, upon request if they available and have

been released for publication.

Copper price basis: EUR 150/100 kg; see catalogue appendix T17 for the application and deﬁnition of “Metal price basis” and “Metal index”

Please ﬁnd our standard lengths at: www.lappkabel.de/en/cable-standardlengths

Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum

Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)

Photographs are not to scale and do not represent detailed images of the respective products.

Power and control cables

Power chain applications Harsh conditions•

For current information see: www.lappgroup.com

Product specificaties

Merk:	Lapp
Categorie:	Kabels voor pc's en randapparatuur
Model:	ÖLFLEX ROBUST FD
Kleur van het product:	Zwart
Snoerlengte:	10 m
Diameter:	13.3 mm
Certificering:	CE, EAC
Ingangsspanning:	300/500 V
Bedrijfstemperatuur (T-T):	-50 - 110 °C
Aansluiting 1 type:	Nee
Aansluiting 2 type:	Nee
Materiaal buitenmantel:	Thermoplastic polyurethaan (TPU)
Kern afmeting:	1 mm²
Kabeladers aantal:	12
