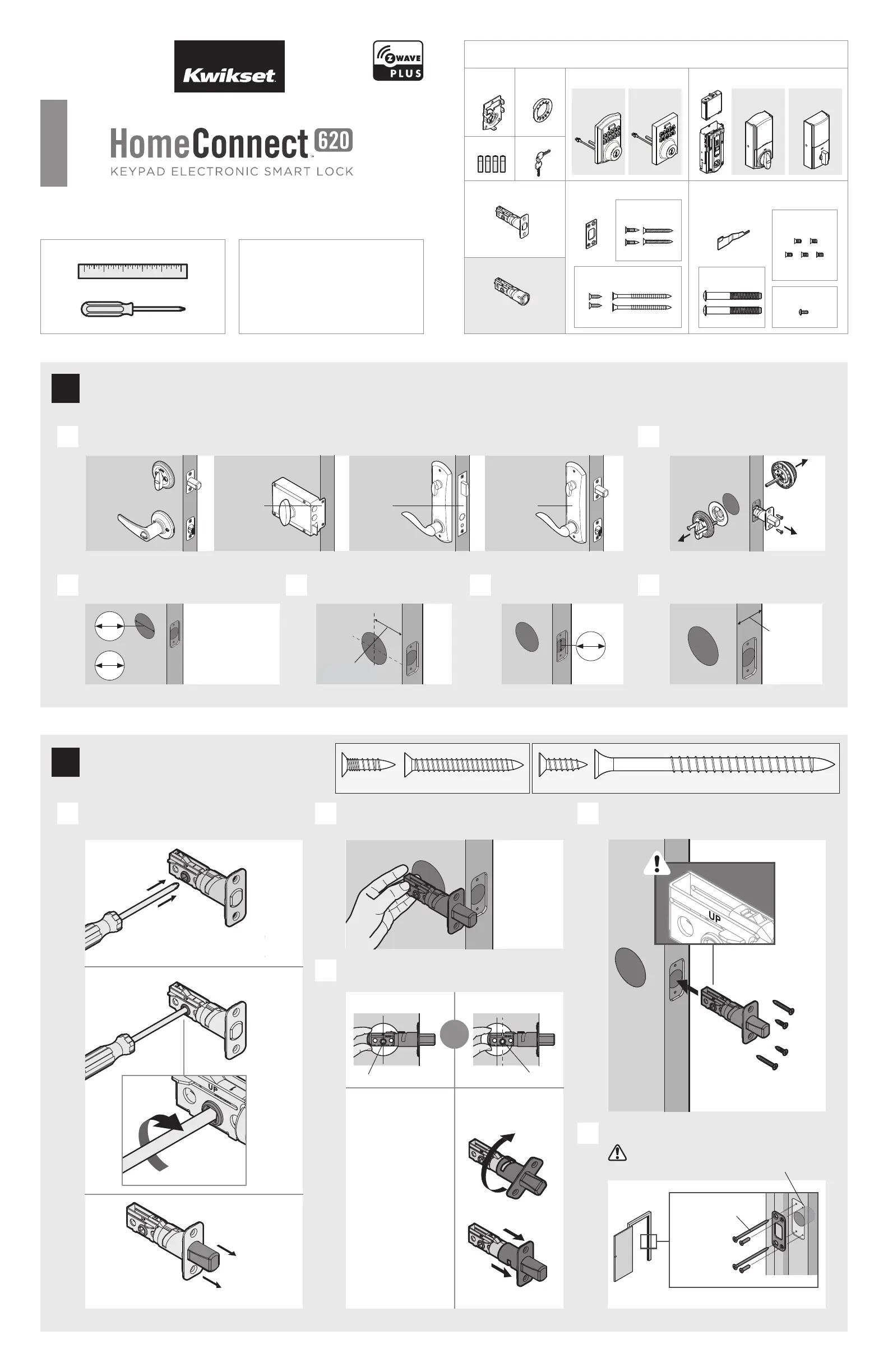

1 / 4

ContemporaryContemporaryTraditionalTraditional

03809* (2x)

(For Latch/

Strike Bag)

If drilling a new door, use the supplied template and the complete door drilling

instructions available at kwikset.com/doorprep

13/8" –2"

35 – 51 mm

AB

C

D

Extend the latch bolt.

Is the D-shaped hole centered in the door hole?

Install the latch.Hold the latch in front of the door hole, with the latch

face lush against the door edge.

1"

25 mm

YESNO

No adjustment is required.

Proceed to next step.

D-shaped holeD-shaped hole

Rotate latch face as

shown to extend latch.

UP is on top.

E

Install the strike on the door frame.

Make sure the hole in the door frame is drilled

a minimum of 1" (25 mm) deep.

1

2

Prepare the door and check dimensions

Install the latch and strike

or

23/8" or 23/4"

60 or 70 mm

backset

Measure to conirm that the backset is

either 23/8" or 23/4" (60 or 70 mm).

Measure to conirm that the hole in

the door edge is 1" (25 mm).

Measure to conirm that the door is between

13/8" and 2" (35 mm and 51 mm) thick.

Remove your existing deadbolt

from your door.

CDEF

B

Latch A

“B” is not included.

If needed, please contact Kwikset to

order a drive-in latch for your lock.

Keys

Exterior Assembly

Adapter

Ring

Batteries

Mounting

Plate

Parts List

For Latch / Strike

Interior Assembly

SmartKey

Tool

Measure to conirm that the hole in the door is either

21/8" (54 mm) or 11/2" (38 mm).

or

21/8"

54 mm

11/2"

38 mm

Note: Additional door

preparation may be required

for doors with 11/2" (38 mm)

holes. Consult the deadbolt

drilling instructions at

kwikset.com/doorprep

A

Make sure your door is compatible. If you have a standard deadbolt mounted

separately from the handle below it, your door is compatible.

Mortise

Lock

Not CompatibleNot Compatible

Rim

Lock

CompatibleNot Compatible

Integrated

Interior

door frame

46780* (4x)

(For Latch/

Strike Bag)

*Install the longer screws

closest to the door jamb.

actual size

Strike

03809

46780

68272

69316

Latch B

For Lock

03809

46780

or

or

*Use longer screws if

holes are worn out.

You will have two extra screws.

actual size

For Latch /

Strike Bag

(2x)(2x)

(2x)(2x)

68611

69940002

Rev 02

ZWave Plus™

Installation and User Guide

Kwikset

1-866-863-6584

www.kwikset.com

ENGLISH

Required tools

Ruler

Phillips head screwdriver
