INSTALLATION SHEET

LP16248

LED Linear Pendant

START FROM HERE

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required

• 120V input

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all times during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

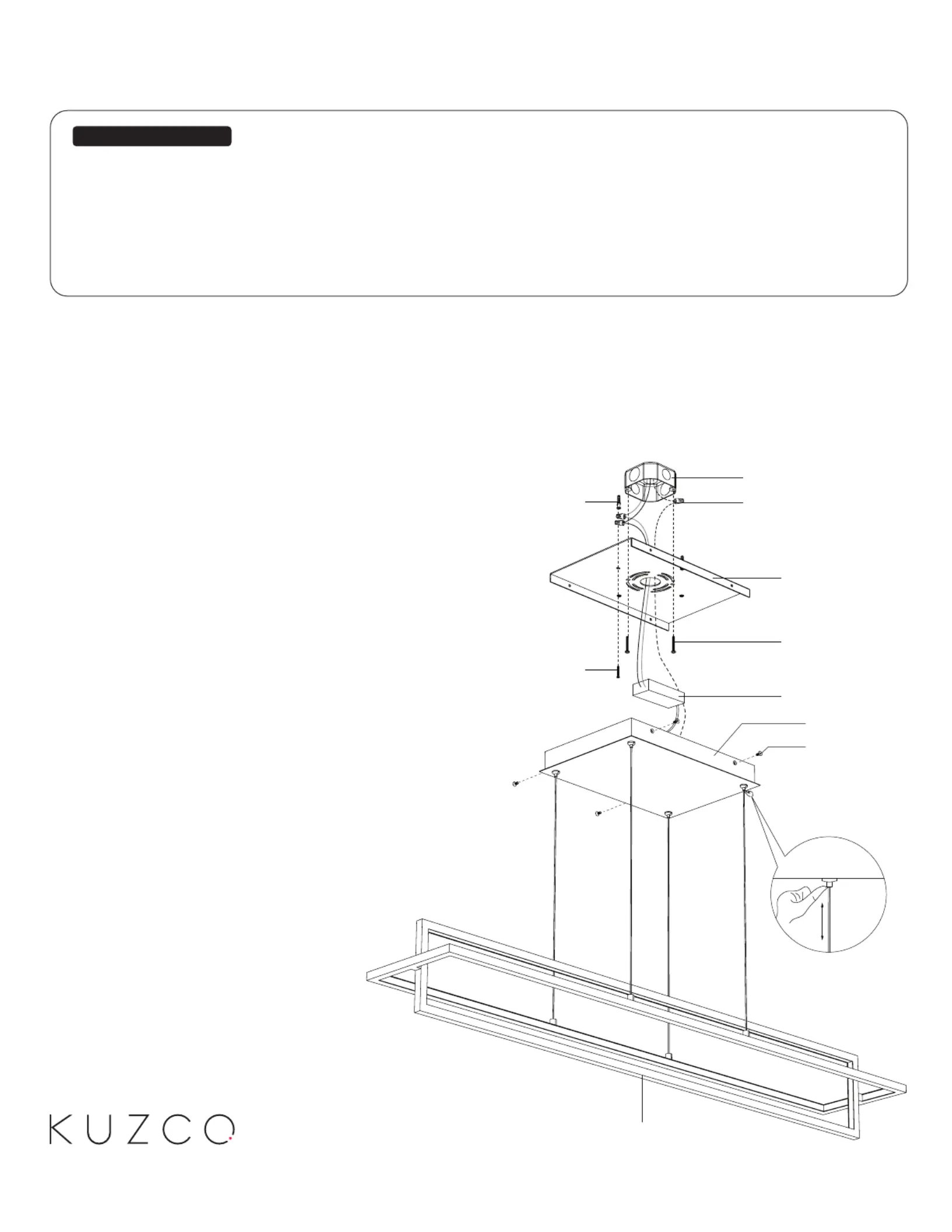

1a.

1b.

1f.

1g.

4a.

1c.

1e.

2a.

2f.

3a.

2g.

1.

2.

3.

4.

5.

6.

7.

8.

9.

Remove fixture from its original package

Separate mounting plate from canopy by (1c)(2a)

removing canopy screws (2f)

Attach mounting plate to electrical junction box (1c)

(1a)(1e) using junction box screws provided in

hardware package

Secure mounting plateto mounting surface with (1c)

screws (1g) and anchors (1f)

To change fixture height, push and hold wire gripper

(2g), slide wire to desired length and then release wire

gripper (2g) to secure

Make proper electrical connections ( to “L”, blackhot

whiteground“GND”) to “N”, neutral to with wire

nuts (1b) provided in hardware package and place

driver (4a) inside canopy (2a)

Attach canopy to mounting plate with canopy (2a)(1c)

screws (2f)

Fine tone wire length if necessary, by push and hold

wire gripper and then adjust wire to desired (2g)

length

Position inner light into desired position(3a)
