INSTALLATION SHEET

LED Exterior Flush Mount

START FROM HERE

EC19404

Please Note:

•This Kuzco LED fixtures come with pre-wired LED module(s)

•Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

•Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20190614

: kuzcolighting.com

1. Remove fixture from its original package

2. Separate canopy from fixture body by (2a)(3a)

loosening set screws (2b)

3. Separate mounting plate from canopy by (1c)(2a)

removing decorative nuts (2c)

4. Align mounting plate screws to desired (1d)

orientation, and then attach mounting plate to (1c)

electrical junction box using screws provided (1a)

(1e) in hardware package

5. Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”) with wire nuts

(1b) provided in hardware package

6. Align and insert mounting plate screws through (1d)

holes on canopy , secure with decorative nuts (2a)

(2c)

7. To prevent moisture from entering outlet box and

causing short, seal around perimeter between fixture

and mounting surface with weather resistant

caulking (see illustration 1)

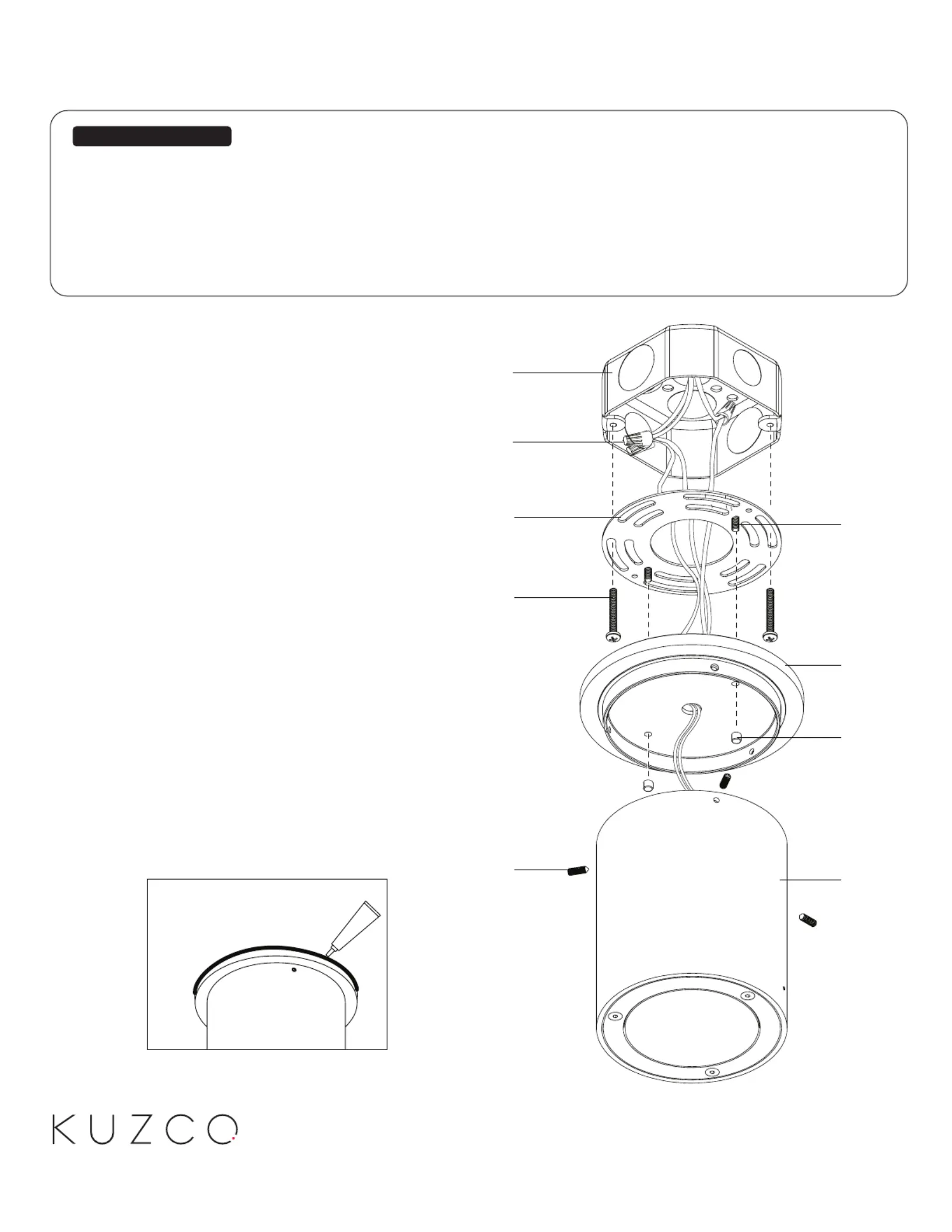

2a.

1b.

1a.

1e.

2b.

2c.

3a.

1d.

1c.

Illustration 1

Caulking
