INSTALLATION SHEET

MP14924

LED Multi-Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

Please Note:

• For dimming, a TRIAC or an ELV type of dimmer is required.

19054 28th Avenue Surrey, BC Canada V3Z 6M3

1c.

1e.

1g.

1f.

2a.

2c.

2b.

1.

2.

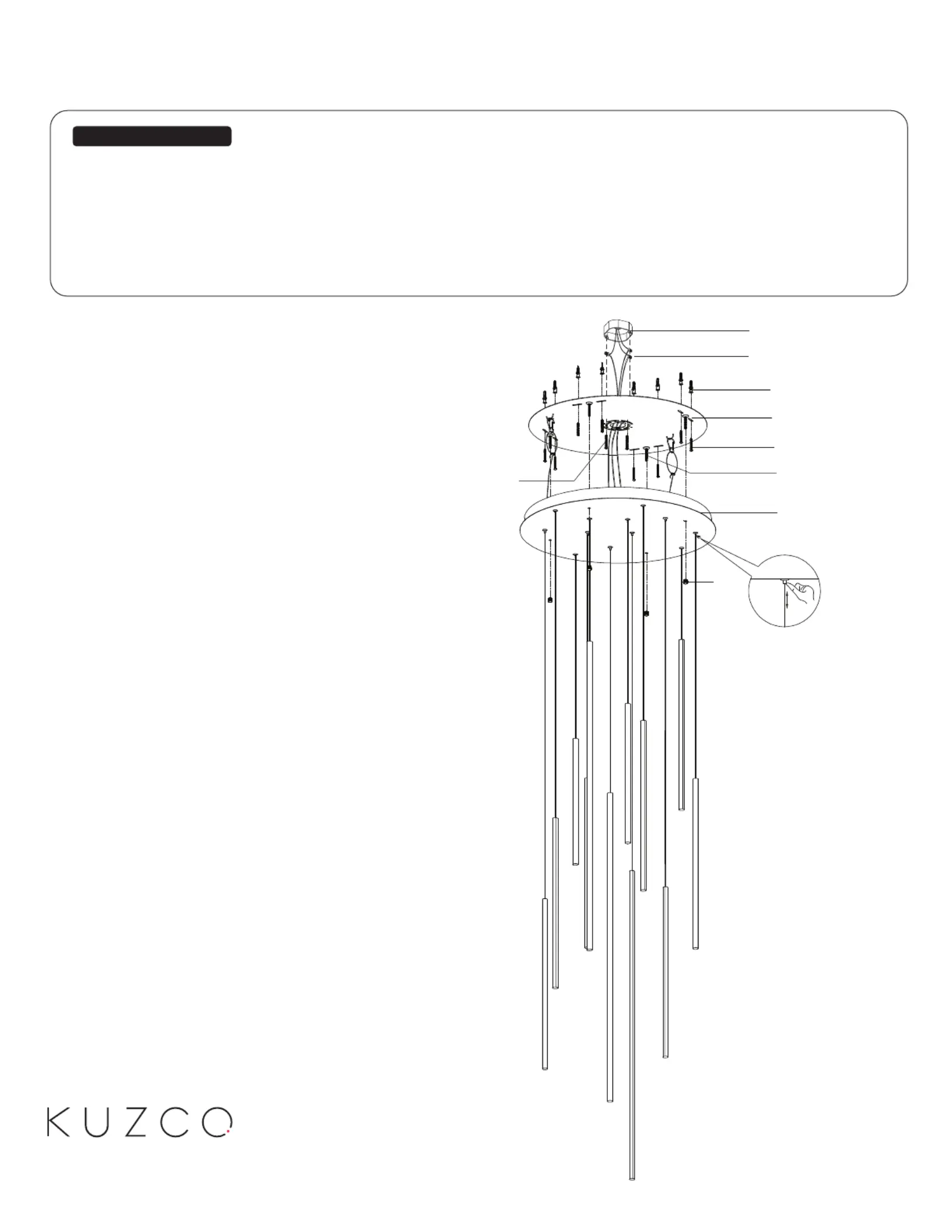

Remove the fixture from its original packaging. Next,

remove the mounting plate from the canopy (1c)

(2a) (2b)by un-threading the decorative nuts .

Attach the mounting plate to the junction box (1c)

(1a)(1d). using two set screws For additional

support, add wood screws to the plastic (1e)

anchors in the ceiling. (1f)

Before you mount the canopy to the mounting plate

select the desired length you wish the pendant to

hang. To set the fixture hanging height, simply push

in the sleeve at the canopy where the wire (2c)

comes out from. Push the wire up to shorten, or pull

the wire down to lengthen. Release the sleeve (2c)

and the wire will be held tightly in place.

You are now ready to mount the canopy. First

connect all wires correctly black to black “L”, white to

white “N” and the ground wire with provided

marrettes from the hardware package. Align the (1b)

threaded studs with the holes on the surface of (1g)

the canopy Next, push the canopy up (2a).(2a)

towards the mounting plate and thread on the (1c)

decorative nuts on to the threaded studs . (2b)(1g)

This will secure the canopy to the mounting plate.

You have now completed the installation of your

fixture, enjoy.

3.

4.

1d.

1a.

1b.
