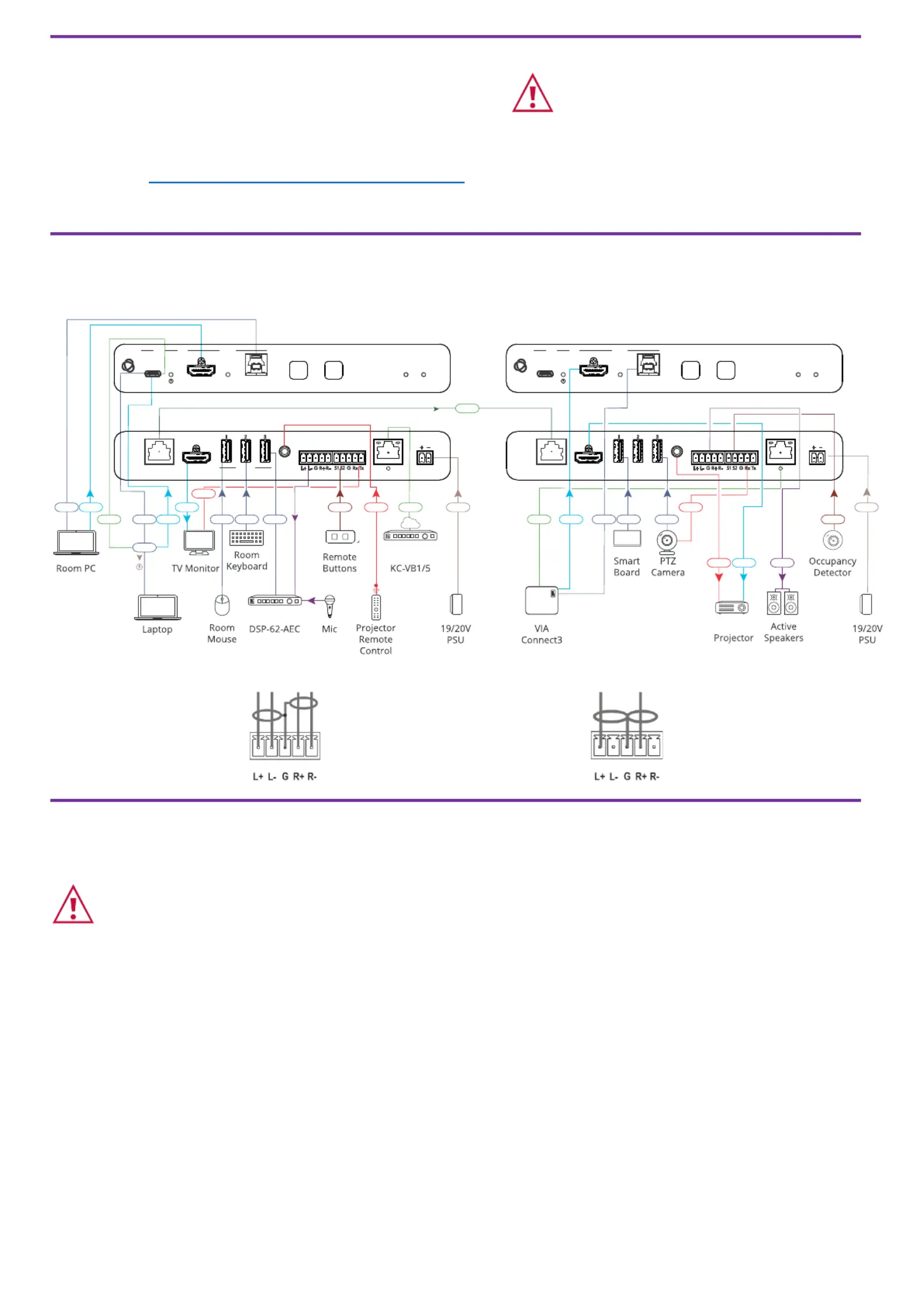

SWT3-21-HU-TR Quick Start Guide

This guide helps you install and use your SWT3-21-HU-TRfor the first time.

Go to link to the user manualto download the latest user manual and check if firmware upgrades are

available.

Keep your firmware up-to-date by going tolink to the Resources Tab. See the user manual for

firmware download and error recovery information.

Step 1:Check what’s in the box

SWT3-21-HU-TR2x1 4K60 HDMI Switcher

Extender

1 Multi signal USB-C cable (1m)

1 Quick start guide

2 Power cords and adapter

Set bracket & 4 Rubber feet

Step 2:Get to know your SWT3-21-HU-TR

Configuring the device as transmitter (Tx) or receiver (Rx, default) is done via the embedded webpages

settings.

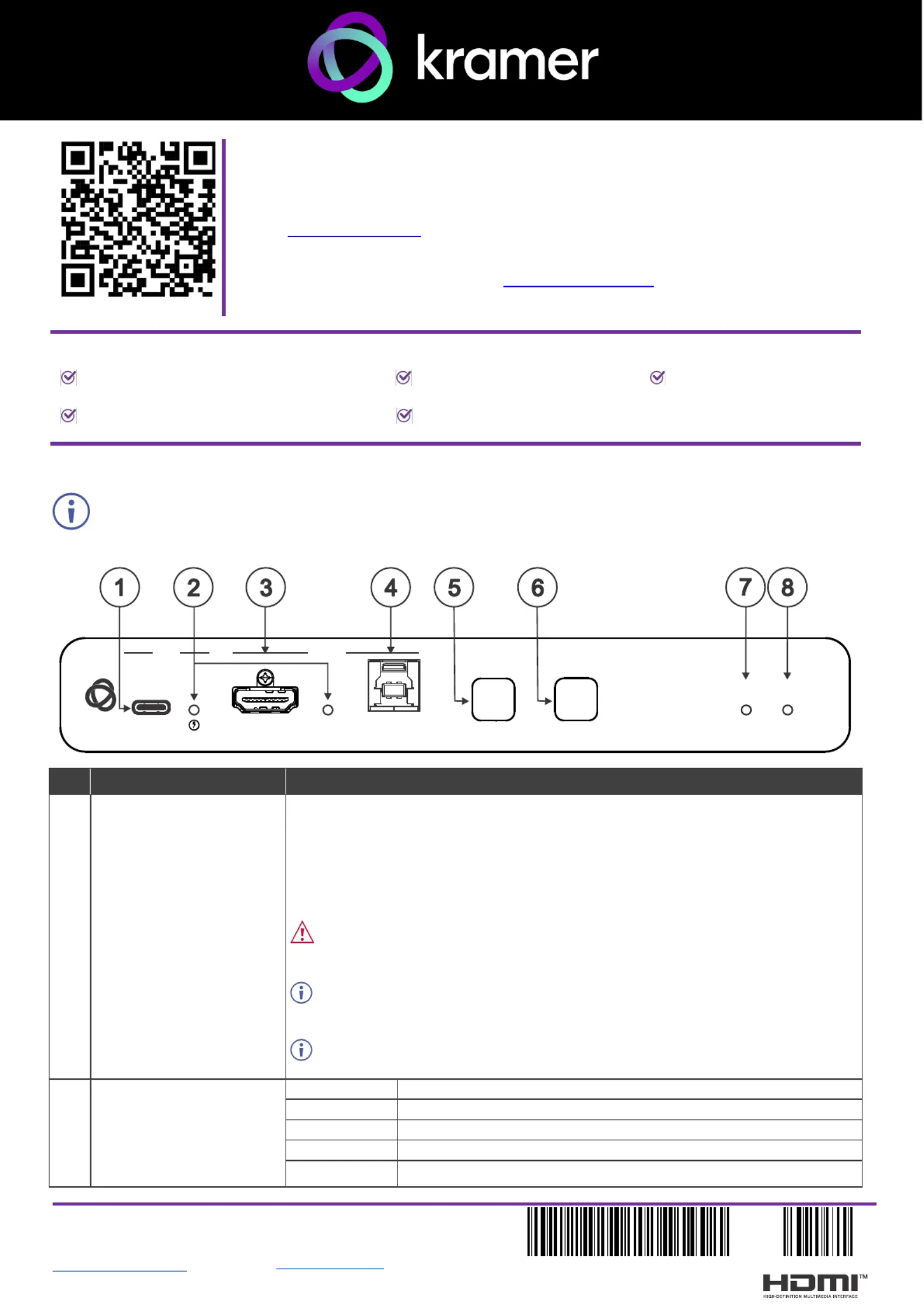

# Feature Function

1

USB-C IN 1 Port

Connect to a USB-C host (AV + USB + LAN):

•that supports DisplayPort Alternate Mode, (for example, a laptop) to share content.

•to communicate with the USB devices (for example, a PTZ camera) that are

connected to the unit,

•to connect to the LAN

•to charge the connected sources (that supports USB Power Delivery 2.0).

Make sure to disconnect the USB-C cable from your host device before modifying

the USB type, or before performing a factory reset.

After modifying the USB device type via the web, power cycle the unit after the

webpage indicates that the process is complete.

While charging, the charging icon (to the right of the connector) becomes visible

and lights orange.

2 IN 1 / IN 2 Status LED

(per input port)

LED Status

Indicates

Lights blue

An input is selected and connected with an active AV or AV+USB source.

Flashes blue

An input is selected and has no active AV signal.

Lightsmagenta

An input is selected and connected with an active USB host only (no AV).

Off

No input is selected.

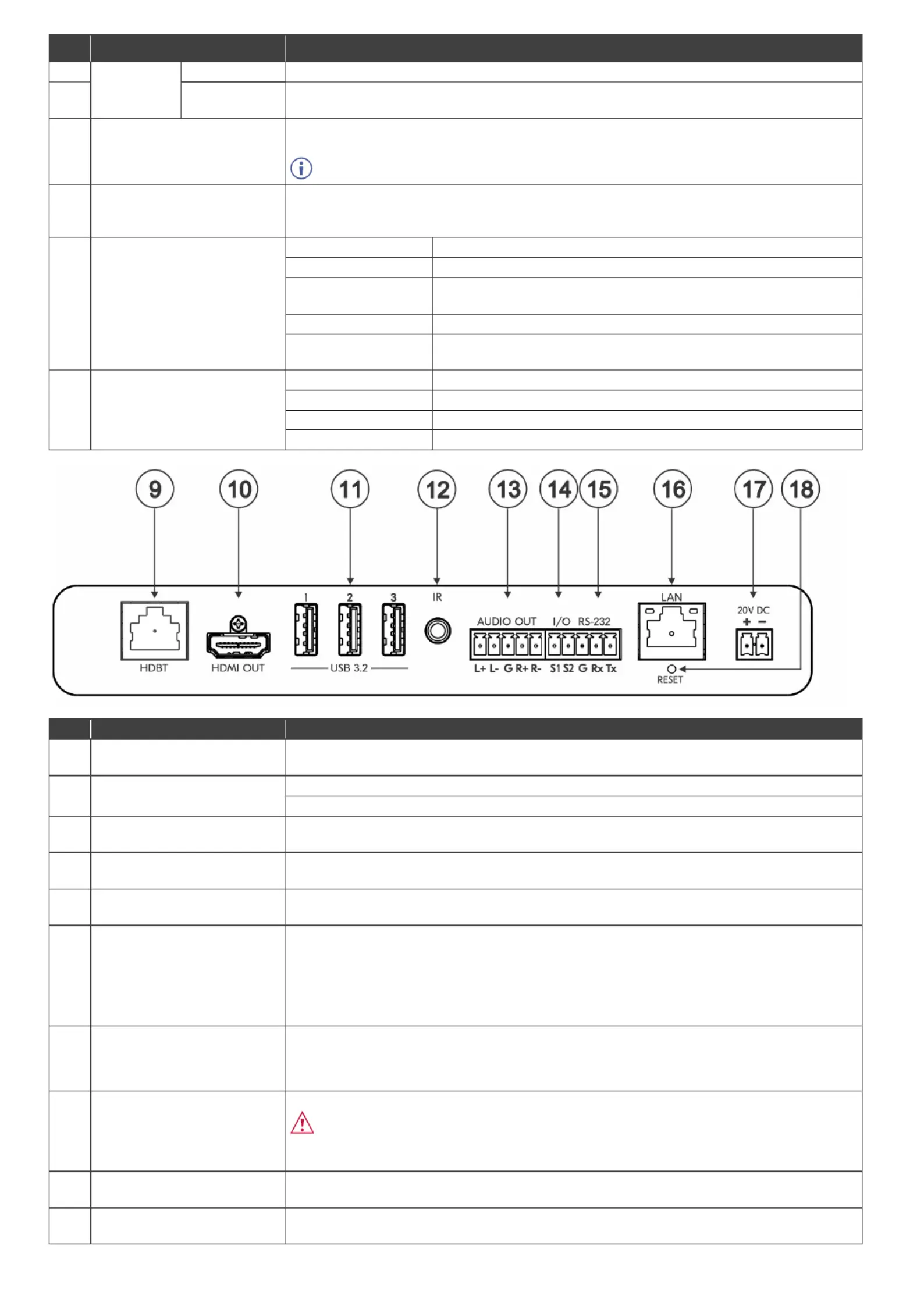

SWT3-21-HU-TR

STATUS

NET

SELECT

ON

HDMI IN

HOST

INPUT

DISPLAY

IN 1IN 2

USB-C
