CO2ST-S
CO
2
Stats
CO
2
detector
DATA SHEET
Parameter Accuracy* Measuring range Resolution
CO
2
±3% of reading ±50 ppm From 0 to 5000 ppm 1 ppm
Technical specications
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
Features
• RCR relay output 3A/240 Vac
(NC), power supply 24 Vac/Vdc
• ABS V0 IP20 housing
• “¼ turn” system mounting with
wall-mount plate
• Housing with simplied
mounting system
Visual and audible alarm,
red led in front
Range from 0 to
5000 ppm
Output 1 RCR relay. NO (normally opened): 5A / NC (normally closed): 3A / 240 Vac. Common mode voltage <30 Vac
Power supply 24 Vac/Vdc ±10%
Consumption 3 VA
Relay and alarm status Red led in front and internal buzzer (70 dB at 10 cm)
Electrical connection 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Raccordement électrique Terminal block for cables Ø0.05 to 2.5 mm
2
. Carried out according to the code of good practice
PC communication USB-mini Din cable
Environment Air and neutral gases
Measured parameter
CO
2
CO
2
Unit of measurement ppm
Type of sensor Infra-red sensor
Response time T
63
= 30 s
Type of uid Air and neutral gases
Conditions of use
(°C/%RH/m)
From 0 to +50°C. In non-condensing condition.
From 0 to 2000 m.
Storage temperature From -10 to +70°C
General features
Material ABS V0 as per UL94
Protection IP20
Display
LCD 10 digits. Dimensions: 50 x 17 mm
Height of digits:
Values: 10 mm; Units: 5 mm
Weight 138 g

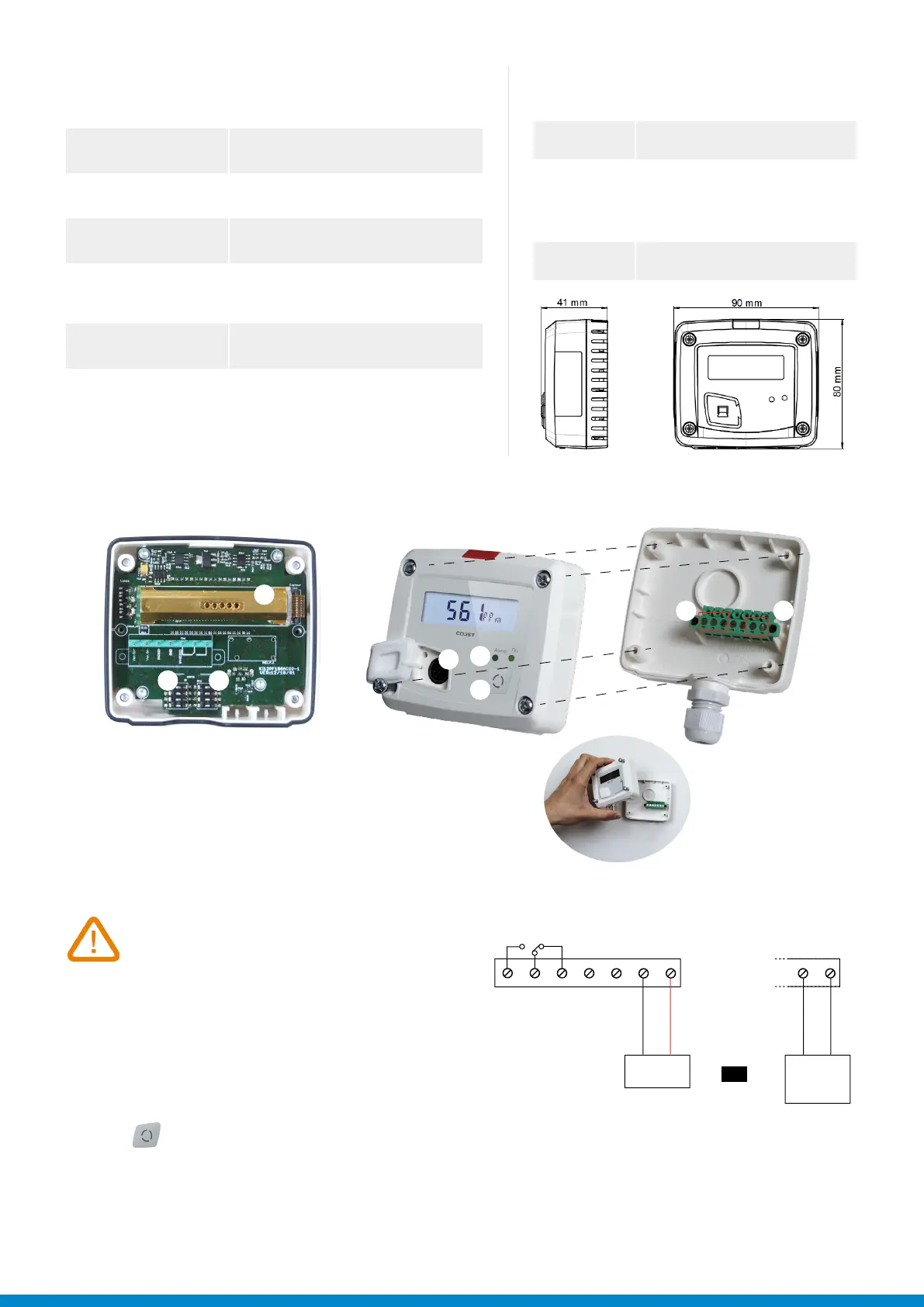

Features of the housing
Connections
Intérieur de la coque avant
Face avant mobile
Boîtier arrière xe
1
2
3
4
5
6
7 8
Inside the front housing
Removable front face
Fixed back housing
1
2 3
4
5
6
7 8
Electrical connections as per NFC15-100 standard
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentation
24 Vdc
ou
N L
N L
~ ~
~ ~
6 7
Alimentation
24 Vac
Classe II
NO COM NC
1 2 3 4 5 6 7
-
+
Power supply
24 Vdc
or
N L
N L
~ ~
~ ~
6 7
Power supply
24 Vac
Class II
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentación
24 Vdc
o
N L
N L
~ ~
~ ~
6 7
Alimentación
24 Vac
Clase II
NO COM NC
1 2 3 4 5 6 7
-
+
Alimentazione
24 Vdc
o
N L
N L
~ ~
~ ~
6 7
Alimentazione
24 Vac
Classe II
This connection must be made by a
qualied and trained technician. To make
the connection, the transmitter must not
be energized.
Settings and use of the transmitter
• Thresholds conguration
The button allows to activate or not an alarm (threshold), to set the action of the alarm (edge), to set the threshold(s) value, to
set the time-delay and to acknowledge the alarm.
Working principle:
- By pressing on the button more than 3 seconds, you can validate the setting and go to the next setting.
- By pressing quickly on the button, you can increment a value and scroll down the different option or values.
NO: normally opened
COM: common
NC: normally closed
1. Infra-red sensor
2. Inactive switch
3. Active switch
4. LCC-S software connection
5. Alarm led
6. Button for settings
7. Relay terminal block
8. Power supply terminal block
