For warranty information please visit: kichler.com/warranty

REV 10-JAN-2025

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTIONS

CAUTION – RISK OF SHOCK:

Disconnect Power at the main circuit breaker panel or main fusebox before

starting and during the installation.

WARNING:

1. This fixture is intended for installation in accordance with the National

Electrical Code (NEC) and all local code specifications. If you are not familiar

with code requirements, installation by a certified electrician is recommended.

Failure to adhere to these codes and instructions may result in serious injury

and/or property damage and will void the warranty.

CLEANING:

• Always be certain that electric current is turned o before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage

the finish.

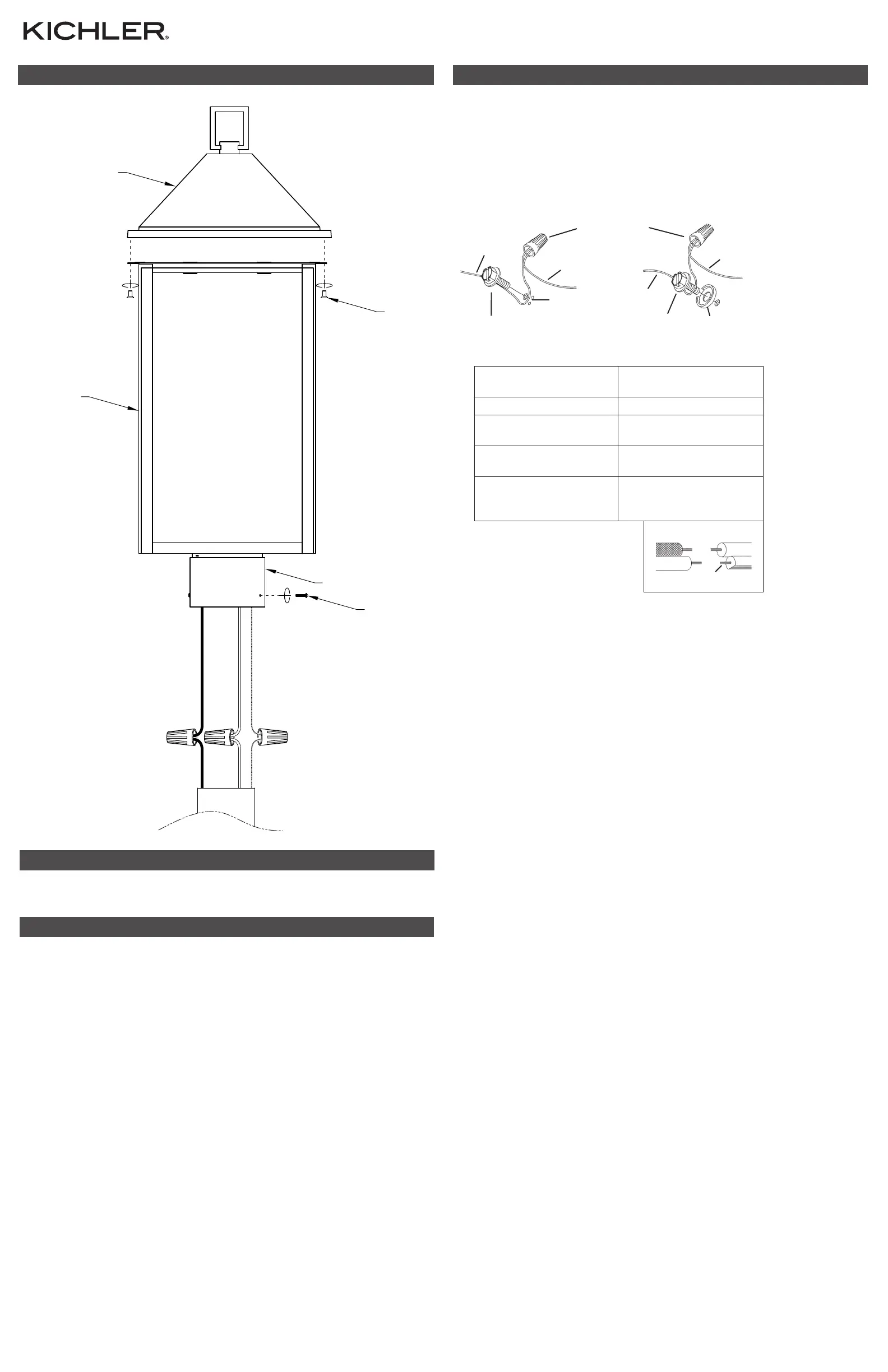

INSTALLATION INSTRUCTIONSFIXTURE DIAGRAM

IS-59161-US

PARTS LIST

[A] Upper Frame

[B] Lower Frame

[C] Countersunk Screw

(2)

[D] Fixture Base

[E] Mounting Screw (3)

1. Carefully slip fixture base[D] onto post. Using the fixture base as a template, mark the positions for

the three (3) mounting screw holes on the post.

NOTE: Ensure that fixture is facing the desired direction for final installation.

2. Remove fixture base from post.

3. Drill 3/16" (4.76mm) holes in post at the positions that were marked in Step 1.

4. Grounding instructions: (See Illus. a or b).

If fixture is provided with ground wire, connect fixture ground wire to outlet box ground wire with

wire connector after following the above steps. Never connect ground wire to black or white power

supply wires.

5. Make wire connections. Reference chart below for correct connections and wire accordingly.

Connect Black or Red

Supply Wire to:

Connect White Supply

Wire to:

BlackWhite

*Parallel cord (round &

smooth)

*Parallel cord (square &

ridged)

Clear, Brown, Gold or Black

without Tracer

Clear, Brown, Gold or Black

with Tracer

Insulated wire (other

than green) with copper

conductor

Insulated wire (other

than green) with silver

conductor

*Note: When parallel wire (SPT

1 & SPT 2) are used. The neutral

wire is square shaped or ridged

and the other wire will be round

in shape or smooth (See illus.)Neutral Wire

6. Carefully slip fixture base[D] onto post and secure in place using three (3) mounting screws[E].

Screws should slip into holes drilled in post.

7. Remove the two (2) countersunk screws[C] that secure upper frame[A] to lower frame[B] (one on

each side of fixture). Retain countersunk screws.

8. Carefully lift upper frame away from lower frame.

9. Insert recommended bulb (not included).

10. Carefully place upper frame[A] on top of lower frame[B], aligning the two (2) holes in lower frame

with the two (2) holes in the bottom of upper frame.

11. Screw the two (2) countersunk screws[C] into the aligned holes from below, and tighten to secure

upper frame to lower frame.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

a

b
