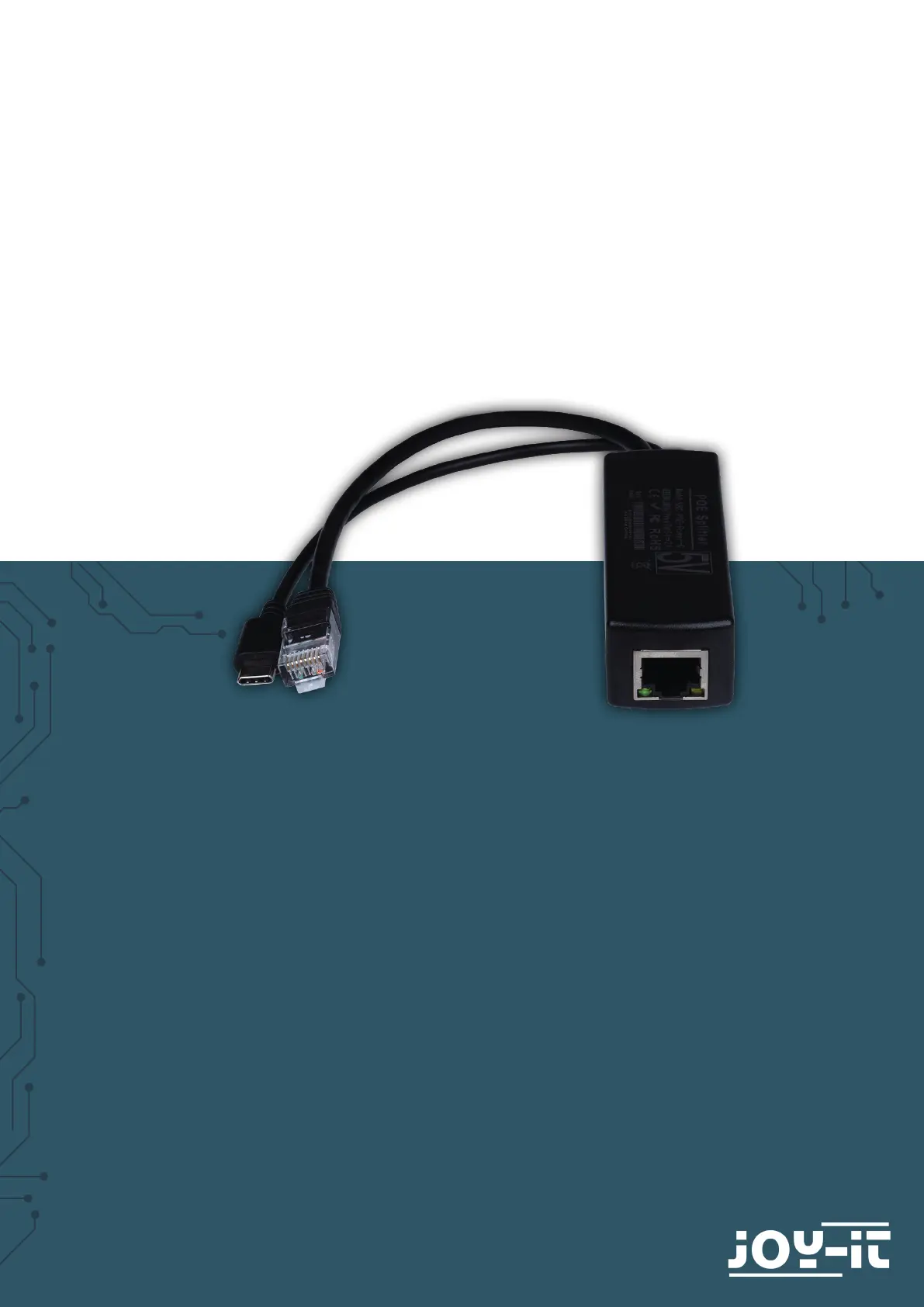

ISOLATED POWER-OVER-ETHERNET

SPLITTER

SBC-PoE-Power & SBC-PoE-Power-C

Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net

1. General Information

2. Requirements

3. Connection & Usage

4. Information & take-back obligations

5. Support

TABLE OF CONTENTS

Dear Customer,

thank you for choosing our product. In the following, we will guide you

through what to pay attention to during commissioning and use.

If you encounter any unexpected problems during use, please feel free to

To be able to draw power via the network connection, additional power

must be fed into the network line. This can be realized, for example, via a

Power Over Ethernet network switch or an injector. These devices feed the

power into the network line themselves.

Now connect the PoE splitter to your network cable, which is connected

to your router or a switch in your network. The network connector, as well

as the Micro-USB or USB-C output (depending on the version of your PoE

splitter), can now be connected to your end device.

Please note that the splitter outputs a voltage of 5V and is suitable for

an output current of up to 2A. Before use, make sure that your device is

compatible with these values.

1. GENERAL INFORMATION

2. REQUIREMENTS

3. CONNECTION & USAGE

Attention! The device is suitable for network speeds up to 100 Mbps. For

higher network speeds, you must limit the speed of your Raspberry Pi to

100 Mbps using the following command:

sudo nano ▬etc▬rc1local

sudo nano ▬etc▬rc1localsudo nano ▬etc▬rc1local

Insert the following line before the line with the content 'exit 0':

sudo ▬sbin▬ethtool ‘s ethө advertise өxөөӏ ӧ

sudo ▬sbin▬ethtool ‘s ethө advertise өxөөӏ ӧsudo ▬sbin▬ethtool ‘s ethө advertise өxөөӏ ӧ

Product specificaties

Merk:	Joy-it
Categorie:	Niet gecategoriseerd
Model:	SBC-PoE-Power
Gewicht:	40 g
Breedte:	82 mm
Diepte:	28 mm
Hoogte:	23 mm
Aantal Ethernet LAN (RJ-45)-poorten:	1
Ingangsspanning:	36 - 57 V
Ethernet LAN, data-overdrachtsnelheden:	10, 100 Mbit/s
Bekabelingstechnologie:	10/100
Netwerkstandaard:	IEEE 802.3af
Output current:	2 A
Ethernet interface type:	Fast Ethernet
Power over Ethernet (PoE):	Ja
Maximale afstand:	100 m
Bedrijfstemperatuur (T-T):	-50 - 75 °C
Aantal producten inbegrepen:	1 stuk(s)
Stroom via Ethernet (PoE):	52 V
