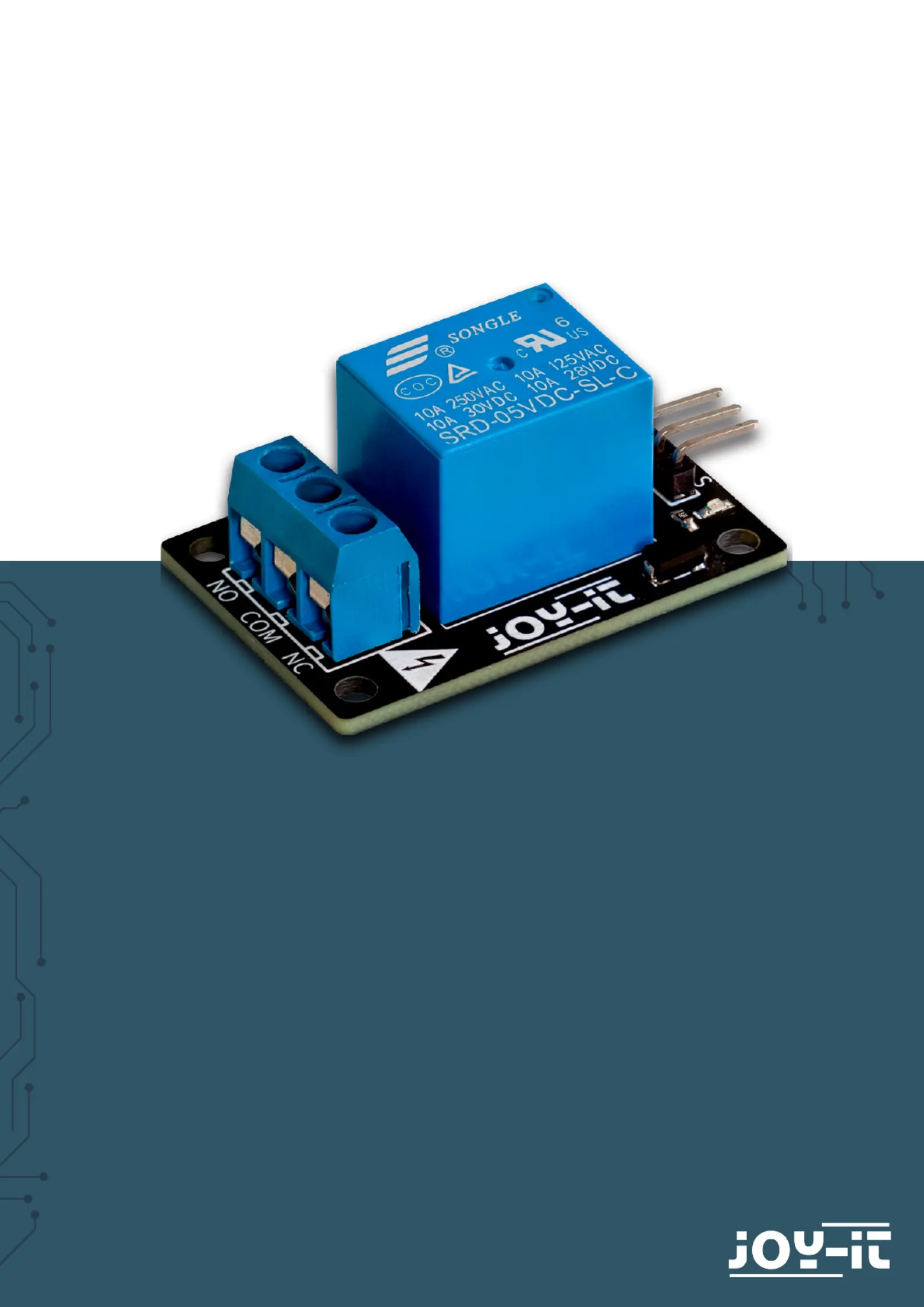

RELAY MODULE
COM-RM01
Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net
Dear customer,
thank you for choosing our product. In the following, we will show you what
you need to bear in mind when commissioning and using the product.
If unexpected problems occur during use, please do not hesitate to contact
us.
1. GENERAL INFORMATION
2. SAFETY INSTRUCTIONS
Never work on the relay module while it is energized and have installa-
tion and maintenance carried out by qualified personnel only.
Ensure suicient insulation distances and avoid short circuits due to
loose cables or insuicient distances.
Install the relay module in a dry, clean environment.
Always switch o the power supply before connecting, configuring or
maintaining the module.
Use fuses or overvoltage protection devices to protect the relay and the
connected devices.
Mount the relay module securely on an insulated and non-conductive
surface and avoid contact with conductive materials.
Use cables with a suitable cross-section for the load side and tighten the
terminals firmly to prevent loose contact.
For inductive loads (e.g. motors or coils), flyback diodes, varistors or si-
milar protective circuits should be used to intercept overvoltages.
Ensure adequate ventilation to prevent the relay module from overhea-
ting.
Avoid using the device in environments with strong vibrations or me-
chanical shocks, as this may impair its function.

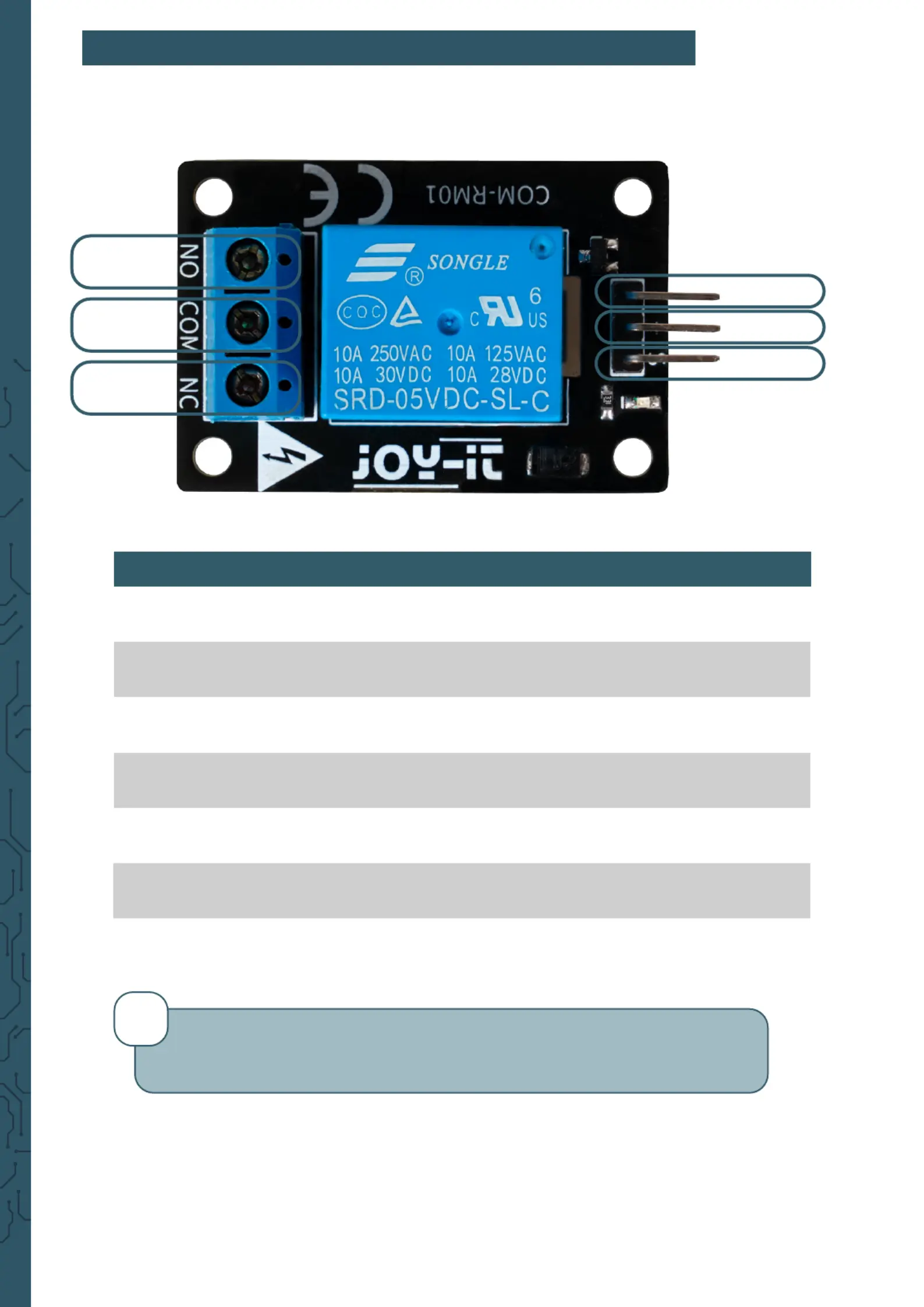

3. OVERVIEW OF THE CIRCUIT BOARD
NO
Connection Description
NO
COM
Contact that is open in the idle state. Closes when the relay is activated
by a high level on the control signal pin.
Common contact, which is connected to either NO or NC depending on
the control signal.
NC Contact that is closed in the idle state. Opens when the relay is activated
by a high level on the control signal pin.
SControl signal (3 - 5 V DC logic level)
+Positive connection of the power supply for the control side
(5 V DC)
-Negative connection of the power supply for the control side
(GND)
iIf the relay is subjected to a high load for a prolonged period, ensure that the
relay module is suiciently ventilated to prevent overheating and to ensure
the service life of the relay.
COM
NC
S
+
-
