Page 1 of 3

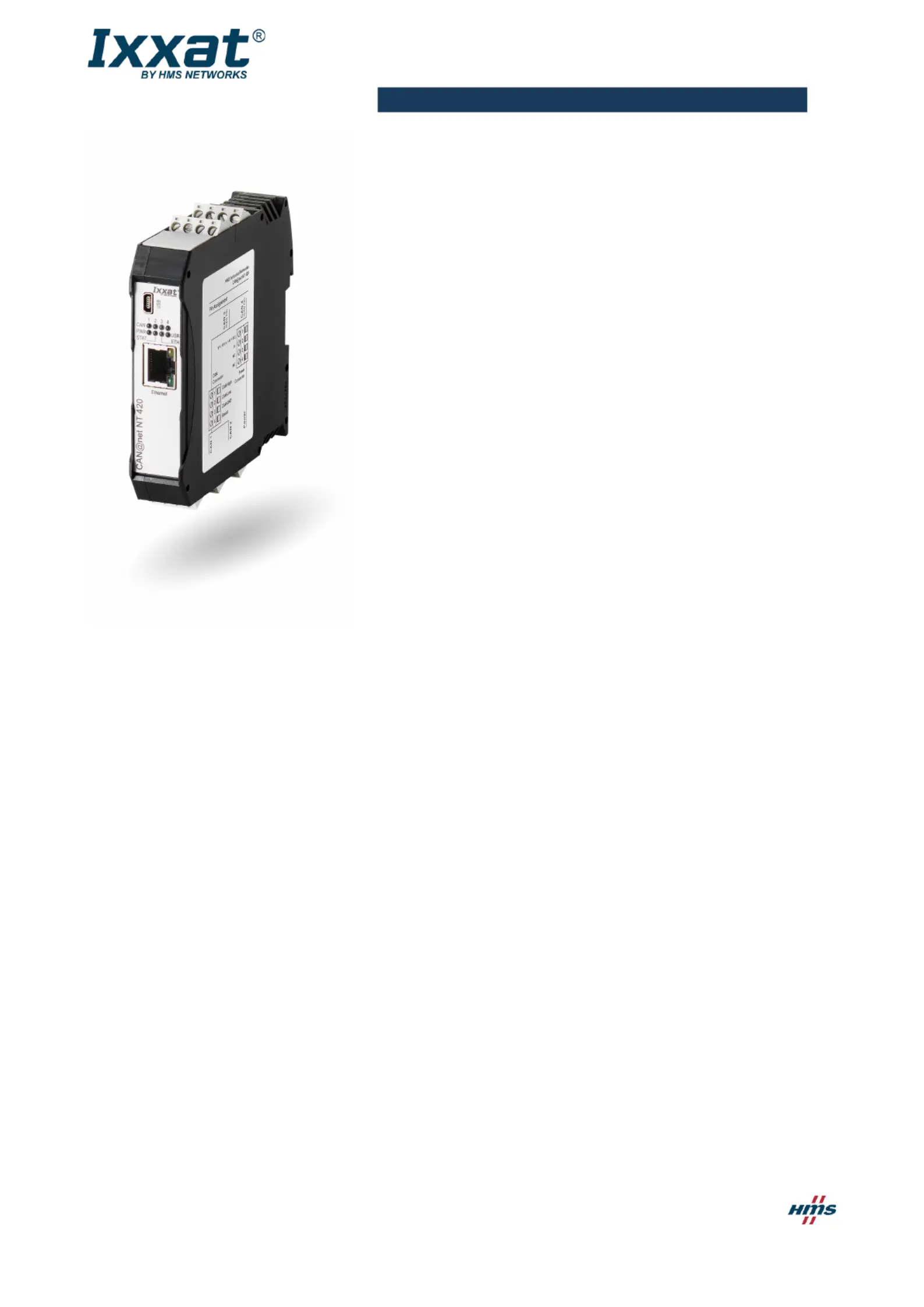

The Ixxat CAN@net NT 420 with four CAN channels (thereof two
channels switchable to CAN FD) is a three-in-one multifunctional
talent in the CAN world and a very reliable workhorse for CAN
applications. It can act as a gateway between CAN/CAN FD and
Ethernet systems, providing easy, flexible access to up to four
independent CAN or two CAN FD systems via LAN or over the
Internet.
As a CAN-Ethernet-CAN bridge the CAN@net NT 420 allows the
exchange of CAN messages between CAN/CAN FD systems over
long distances via TCP/IP, using existing Ethernet infrastructures.
The segmentation of CAN/CAN FD systems also increases the
reliability and failure safety of the entire system.
Messages can be processed, filtered and mapped in the
gateway.Inaddition,dependingonthereceivedmessagesand
the status of the device or CAN bus, various actions and
responses can be automatically performed. The MQTT protocol
available in CAN@net NT 420 enables the information to be
transmitteddirectlytothecloud.
Galvanic isolation reliably enhances the protection of the device
against damage to electronics caused by voltage peaks.
FEATURES AND BENEFITS
Easy coupling of CAN and CAN-FD systems and devices
■
Allows system expansion and tree/star topologies
■
Cost savings due to simple wiring
■
Increased system reliability
■
4 x CAN channels, thereof 2 x channels switchable to CAN FD
■
Line protection by galvanic isolation
■
Bridging of large distances with CAN-to-Ethernet-to-CAN
■
Easy remote system access
■
Powerful filter, ID translation, data mapping and multiplexing
functionality
■
Additional programming of any kind of action rules using LUA
■
MQTT support for easy cloud connection
■
Powerful programming interface for Windows (VCI) as well as for Linux
(socketCAN or ECI), QNX, RTX, INtime and VxWorks (ECI)
■
DATASHEET
CAN@net NT 420
V1.0
www.ixxat.com
Page 2 of 3
ORDER NUMBER 1.01.0332.42000
CAN channels (high speed) 4
CAN FD / CAN channels 2
CAN bus interface 4 x CAN high speed according to ISO 11898-2:2016, 2 x switchable to
CAN FD according to ISO 11898-1:2015
CAN bit rates 5 kbit/s to 1000 kbit/s
CAN FD bit rates Arbitration rate: up to 1000 kbit/s, data rate: up to 8000 kbit/s (verified
by testing). User defined bit rates are possible.
CAN bus termination resistors None
Galvanic isolation 1 kV DC for 1 sec.
CAN propagation delay (typical) Local CAN Bridge: 25-50 µs depending on configuration settings and CAN
load. CAN-Ethernet-CAN Bridge: 4-6 ms
Messages per second (send/receive) 30000-40000 msg/s in Bridge mode
USB connector Mini-USB 2.0 port, high-speed
LAN bit rates 10/100 Mbit/s
Ethernet connector RJ45, twisted pair
Ethernet interfaces 1
Power supply 9 V to 36 V DC with overvoltage and polarity protection
Power consumption at 24 V Typically 110 mA
Power consumption at 12 V Typically 230 mA
Dimensions 114.5 x 99 x 22.5 mm
Weight Approx. 150 g
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Protection class IP20
Relative humidity 10 to 95 %, non-condensing
Certification CE, FCC, UL, UKCA
Housing material Polyamide
LED Transmit and defective segment (two duo LEDs, one for each segment).
Power, Status, User, Ethernet (each one LED). In the Bridge mode the
User LED can be configured with user defined settings via Action Rules.
Operating Systems Windows 11, Windows 10 (32/64), Windows 8 (32/64), Windows 7
(32/64), Linux
CERTIFICATES
ACCESSORIES ORDER NUMBER
Termination adapter for CAN/CAN FD (D-Sub male to
female)
1.04.0075.03000
CAN cable 2.0 m (D-Sub male to female) 1.04.0076.00180
CAN Y cable 0.22 m 1.04.0076.00001
V1.0
www.ixxat.com
Page 3 of 3
ACCESSORIES ORDER NUMBER
CAN Y cable 2.1 m 1.04.0076.00002
PIN ALLOCATION
1
2
3
4
1
2
3
4
V+ (+9 V to +36 V DC)
V-
-
CAN-High
CAN-Low
CAN-GND
Shield
POWER CONNECTOR
CAN CONNECTORS
1 2
-
3 4
7

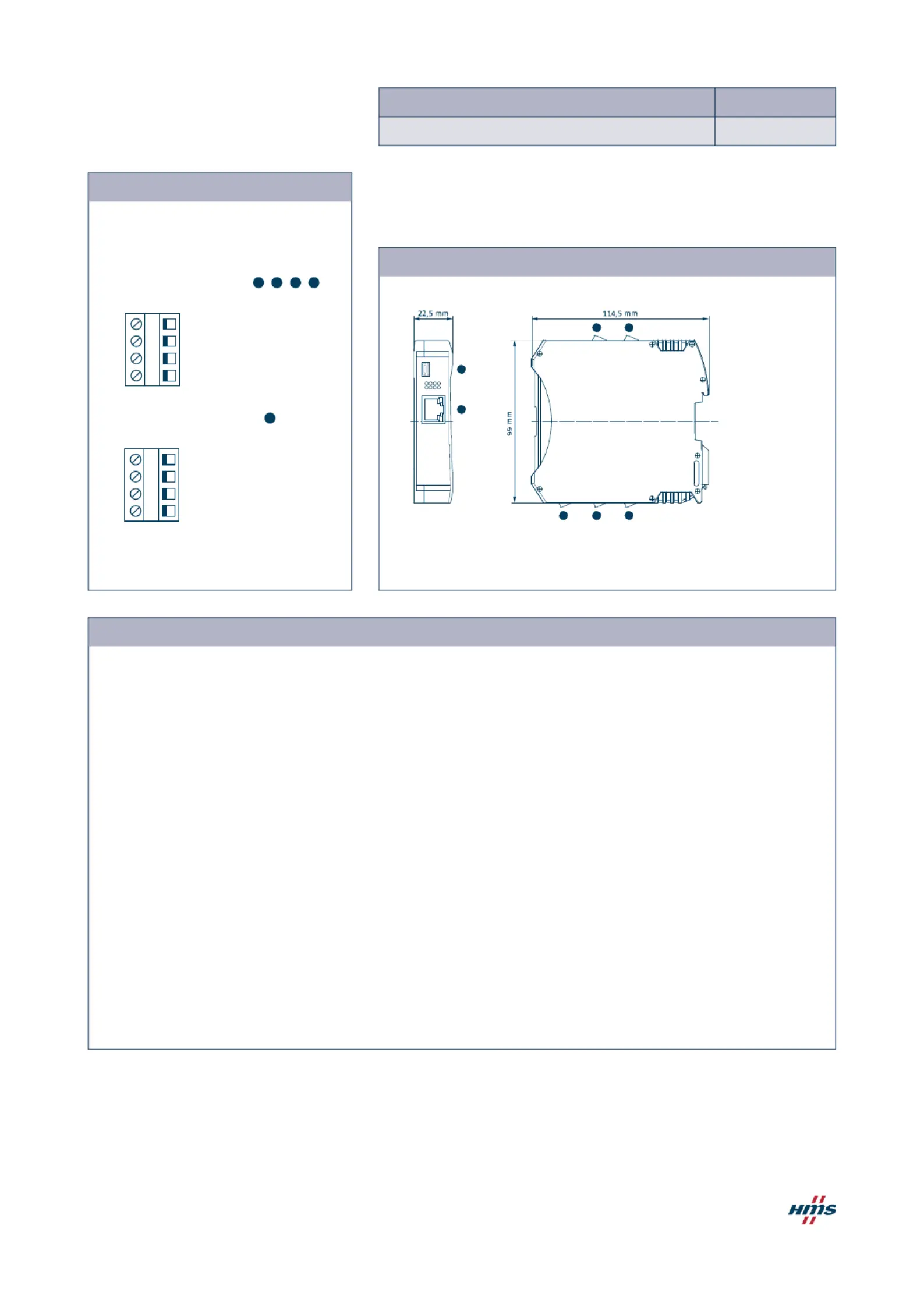

TECHNICAL DRAWING
CONNECTORS
1 = CAN 1
2 = CAN 2
3 = CAN 3
4 = CAN 4
5 = Ethernet (RJ45)
6 = Mini-USB
7 = POWER
3
4
1 2
5
6
7
SOFTWARE SUPPORT
Configuration
The configuration of the CAN@net NT and the firmware upload is done with an intuitive to operate Windows
configuration tool via USB or Ethernet. With the tool, the configuration of filter, mapping, multiplexer or translation
rules can be carried out very easily, without programming skills. Further information about the configuration tool
can be found on the Ixxat webpage. The configuration tool can be downloaded under www.ixxat.com/support
Drivers and programming interfaces
HMS offers for the CAN@net NT free driver packages for Windows (VCI driver), Linux (ECI driver) and various real-
time operating systems. The driver packages also include a programming interface, enabling customers to develop
own analysis, control or configuration applications based on the Ixxat CAN@net NT. File downloads and further
information can be found under www.ixxat.com/support
Tools
For analysis and configuration HMS offers powerful tools which can be used in combination with the CAN interface.
For Windows, the canAnalyser Mini is included in the scope of delivery (part of the driver download package).
Further information about the tools as well as Demo/Trial versions are available on the Ixxat webpage.
