Quick Start Guide

PowerLinc Modem

– INSTEON

USB - Interface (DualBand)

Model: 2413U

Install PowerLinc Modem

1) Ensure PowerLinc Modem is not plugged into your computer

2) Go to http://ftdichip.com/Drivers/VCP.htm

and download the driver file

Under the “VCP Drivers” section, select the Windows .exe file

3) Open and run the downloaded driver file

4)outlet Plug PowerLinc Modem into an AC wall

5)Plug square end of included cable into PowerLinc Modem’s USB USB jack

6)Plug rectangular end of cable into an available USB port on your PC

PC will detect new hardware

PowerLinc Modem is now ready

Tips for Using PowerLinc Modem

• Do not use a USBcable longer than 10’ (6’ or less is recommended)

• Do not plug PowerLinc Modem into a power strip or AC line filter

• Use only one PowerLinc Modem per computer

• Do not place near large metal objects, such as refrigerators or TVs

•Some computers and their accessories can absorb PowerLinc Carrier (PLC) signals off the powerlines. Since PowerLinc

Modem will be close to the computer, the power strip for the computer should be filtered. Use an INSTEON FilterLinc (#1626-

10) on the computer’s power strip to keep PowerLinc Modem signals from getting absorbed by the computer equipment

•If computer’s serial port is shared with another hardware device (scanner, PDA, etc.) be sure to turn off that device’s program

on the PC. If left running, the home automation software will not be able to communicate with PowerLinc Modem.

•To reset PowerLinc Modem to its original factory settings, unplug from wall outlet and wait 10 seconds. Press and hold Set

button; while continuing to press and hold, plug back in. A long beep will sound; continue holding Set button until beep stops,

then release.

After several seconds, status LED will turn on to indicate reset is complete

Use PowerLinc Modem as a Phase Bridge

1) Install additional dualband INSTEON devices if they are not already installed-

2) Start Phase Detection Mode by tapping the Set button on PowerLinc Modem four times quickly

PowerLinc Modem turn on solidwill begin beeping and status LED will green

3) Check the LED behavior of the other dualband devices to see if they are on the opposite phase-

If at least one of the dualband device LEDs is blinkingte or blue, the device is on the opposite - green or is bright solid whi

phase. Continue on to step 4.

If none of the dualband devices exhibit the behavior above, they are on the same electrical phase. Try the following: -

•-Follow steps 2 and 3 with the other dualband devices to see if they are exhibiting the desired LED behavior

•- Move a dualband device to another location until it exhibits the desired LED behavior

4)Tap PowerLinc Modem Set button

PowerLinc Modem will stop beeping

Owner’s Manual Tech Supportand

Owner’s Manual and current Quick Start Guide: http://www.insteon.com/support

Call: -- INSTEON Support Line at8007627845

This device complies with FCC Rules Part 15.Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or

that may cause undesired operation. The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does

cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the device experiencing the interference.

• Increase the distance between this device and the receiver.

• Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver.

• Consult the dealer or an experienced radio/TV technician.

WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

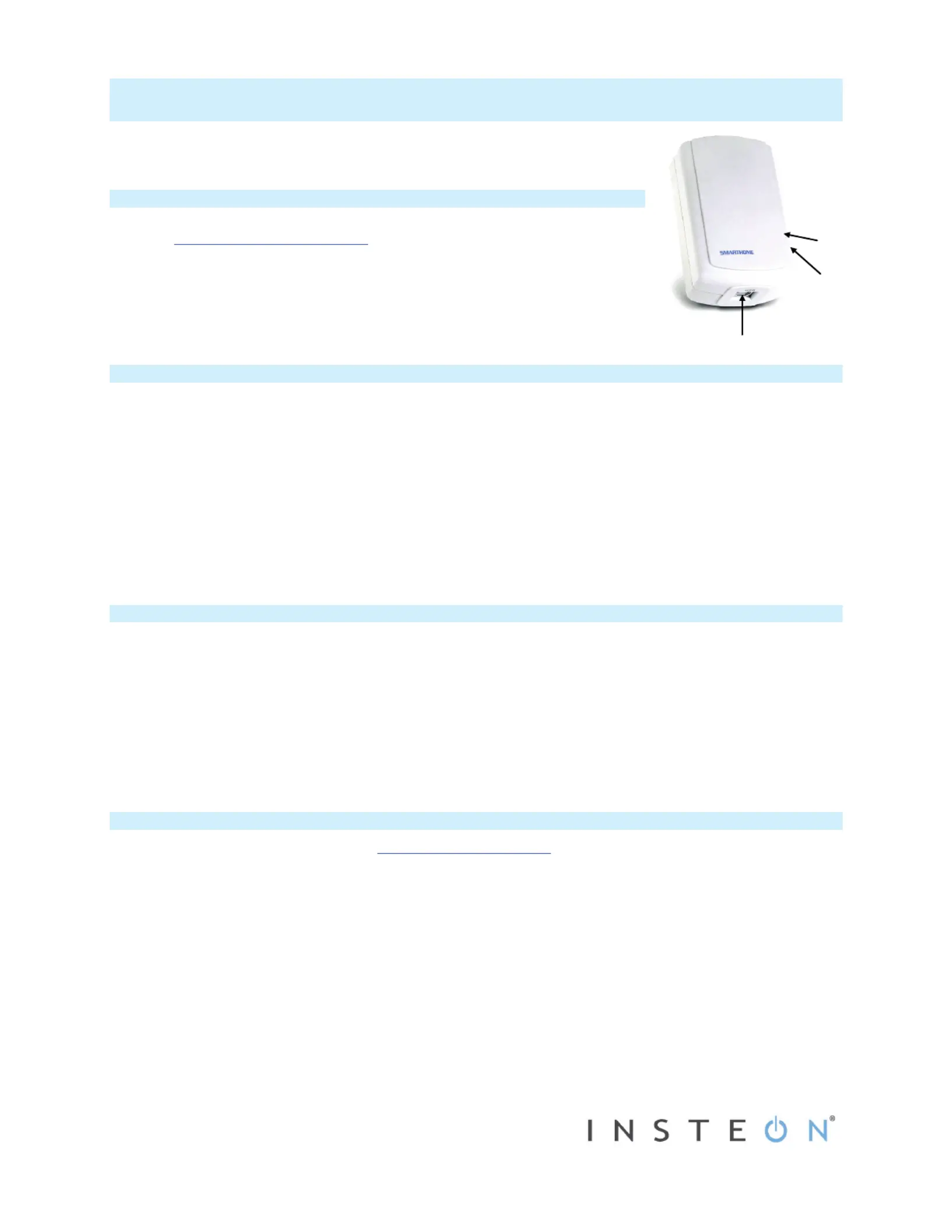

USB jack

Status LED

Set button
