Pagina 1/8
Ref.
FR - Manuel d'Utilisation - p. 4
NL - Handleiding - p. 6
LC506W-FR
Code: 15-1177

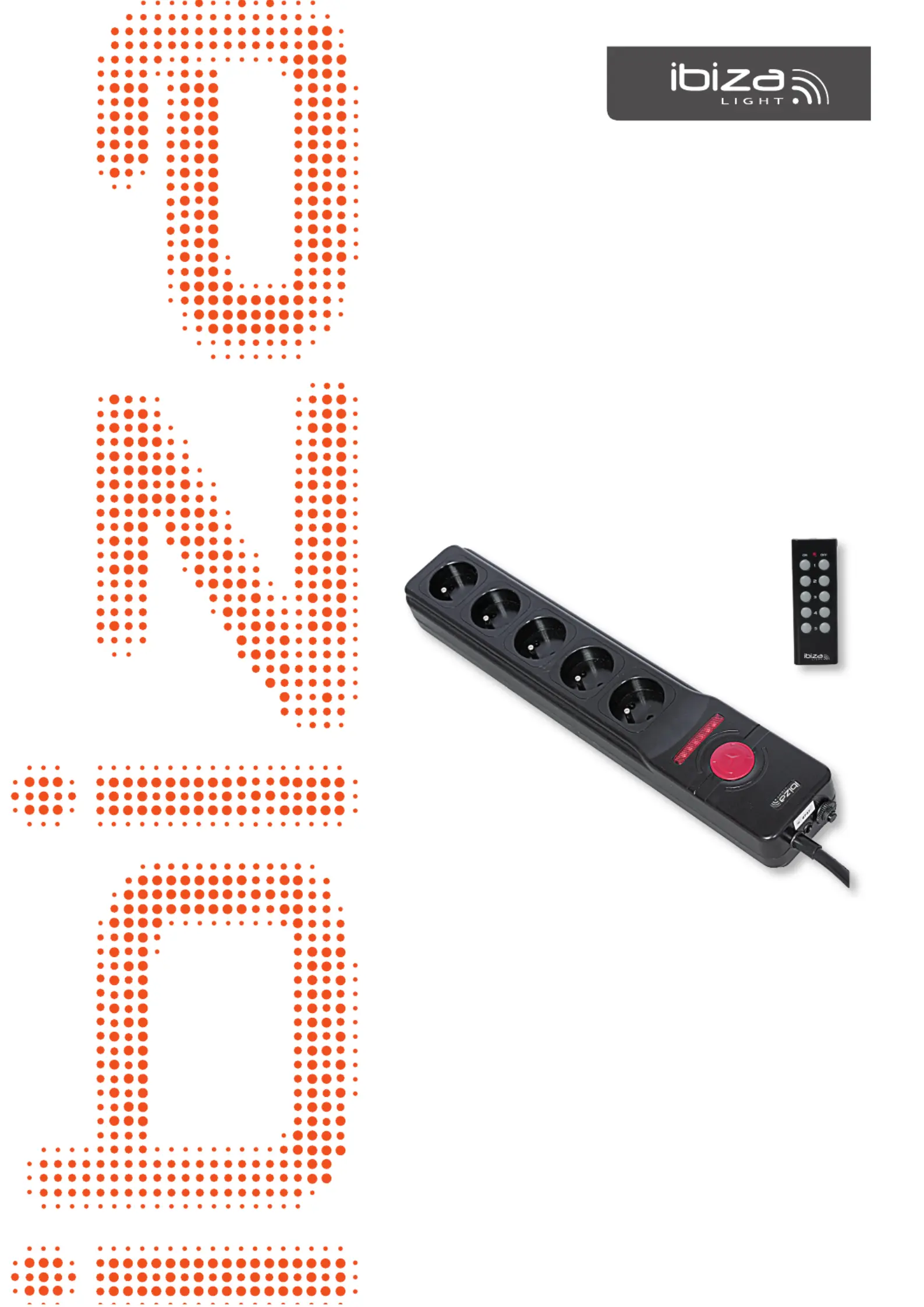

REMOTE CONTROLLED ENERGY-SAVING 5-GANG
MAINS EXTENSION SOCKET
RALLONGE MULTIPRISE TELECOMMANDEE
A ECONOMIE D'ENERGIE
ENERGIEZUINIGE 5-WEG STOPCONTACT-
VERLENGSNOER MET AFSTANDSBEDIENING
MANUAL
Manual - LC506W-FR
2
©Copyright LOTRONIC 2020
REMOTE CONTROLLED ENERGY-SAVING 5-GANG MAINS EXTENSION SOCKET
EXPLANATION OF SYMBOLS ON THE SILKSCREEN
The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to elec-
trocution, for example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.
The unit complies with CE standards
For indoor use only
RECOMMENDATIONS FOR BATTERIES IN THE REMOTE CONTROL
This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in
accordance with your local regulations..
Batteries shall not be exposed to excessive heat such as sunshine, re or the like. When the internal batteries are not
to be used, remove them to avoid damage caused by battery leakage or corrosion.
ATTENTION
Danger of explosion if battery is incorrectly placed.Only replace by the same or equivalent type.
INSTALLING THE BATTERY
Remove the battery cover from the back of the remote control as shown and
insert a 12V 23 batter ensurin correct polarit
SAFETY INSTRUCTIONS
1. Please read the instruction manual carefully prior to using the unit.
2. Don’t exceed the maximum load;
3. For indoor use only. It should be installed in a ventilated, cool place away from heat sources. Don’t expose to
direct sunlight, rain and moisture.
4. When the remote control distance reduces or the remote control LED ets dim, replace the batteries b new
ones of the same type. Dispose the old batteries with consideration for environment protection.
INTRODUCTION
The ener ecient standb buster is a remote controlled electrical extension socket that allows ou switch
appliances o completel so that the use no electricit rather than leavin them on standb, unnecessaril
using electricity that is costing you money and contributing to harmful carbon dioxide (CO2) emissions into the
environment.
The standby buster with 5 sockets is ideal if you have a large range of electrical appliances (AV or PC equip-
ment) which are often left on standb. The standb buster remote can control unlimited dierent appliances,
simply plug each appliance into the standby extension socket.
New independent research suests that electricit savins of up to 100KWh ener power per ear can be
achieved by introducing the Standby buster energy saving devices throughout your home.
With Over-current protection function, the item will automaticall cut o power suppl to protect itself and
the connected home appliances in case of short circuit or over load.
With surge protection function, it can absorb surges of small lighting strikes and surges from your domestic
power suppl sstem to protect itself and our home appliances. Lenthens the lifetime of all connected de-
vices. It remains in “o” mode after a power cut, even when power comes on aain.
APPLICATIONS:
Manual - LC506W-FR
3
www.ibiza-light.com
EN
OPERATION:
The transmitter has 5 roup buttons with individual ON and OFF function. t ever press on the “ON” button,
ou will turn on the connected electrical device; if ou press the “OFF” button, the correspondin connected
electrical device will be shut o automaticall.
PROGRAMMING A REPLACEMENT REMOTE CONTROL:
All remote controlled extension socket units have been pre-programmed and can be used immediately.
In case you have lost or broken your remote control and have received a new one, please follow instructions
below to get your new remote work with your extension sockets:
■ Plu the extension socket to a power point and turn the power on.
■ Press and hold the desired number button on remote control for about 5 seconds until the correspondin LED
indicator lights up.
The re-programming operation is successful if the desired number button on the remote control can operate the
programmed socket.
Attention: One group button on transmitter can only program one socket.
Only do the programming operation for one group button with corresponding socket, then the other four group
buttons with corresponding sockets will be programmed automatically.
SPECIFICATIONS:
Power for transmitter: ...........................................................................................12V (23 1pc batter)
Transmission frequency: ............................................................................................................433.92MHz
Remote control distance: ................................................................................................... 30M (free area)
Workin voltae for sockets: 230V~ 50Hz ...................................................................................................
Max. load power for total ve sockets: 2300W ............................................................................................
Standby power: ................................................................................................................................≤ 0.5W
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
