FIXTURE INSTALLATION
1.Attach the CROSSBAR (1) onto the junction box using the MOUNTING SCREWS (2). This fixture is designed to
be mounted on standard round or octagon junction box. The junction box must be securely mounted to the
structure of the building.
2.Open the end link on the CHAIN (8) and attach to the loop on the FIXTURE ASSEMBLY (10). Hang the
FIXTURE ASSEMBLY (10) on the CHAIN (8) at your desired height, and remove excess CHAIN.
3.Feed the wire through the CHAIN (8) , SCREW COLLAR (9), CANOPY (7), SCREW COLLAR LOOP (6),
NIPPLE (5), and CROSSBAR (1), and screw the NIPPLE (5) onto the CROSSBAR (1).
4.Open the top link on the CHAIN (8), and Hang the FIXTURE ASSEMBLY (10) to the SCREW COLLAR LOOP
(6).
5.Cut off excess wire, and strip the insulation off the end of the leads.
6.Attach the Ground wire (Green) to the ground inside the junction box (Generally green or bar copper wire) or
the GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT"
WIRE! FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!
7.Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together
with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with
electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED
WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!
8.Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires
same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS
COULD RESULT IN SERIOUS INJURY OR DEATH!
9.Lift the SHADE (11) up so that the SHADE HOLDER (14) into SHADE (11), screw the RING (11) and secure
with the HEADLESS SCREW (12) by using supplied ALLEN KEY TOOLING(13) .
10.Screw the BULB (16) up into the SOCKET of the fixture.THE 7614 IS RATED FOR 60 WATT LAMP. THE 7616
IS RATED FOR 60 WATT LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!
11.Restore power to the outlet at the breaker or fuse box.
VERONA BEACH
7614, 7619
INSTALLATION INSTRUCTIONS
WARNING/CAUTION
·DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS
COMPLETELY BEFORE STARTING INSTALLATION.
·TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND
MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED
FACTORY TRAINED TECHNICIAN.
·CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS
AFTER USE.
·REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE
CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR
TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.
·DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE
TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT
FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL
ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.
·PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS
www.hvlgroup.com
Questions? We're here to help!
Contact us at [email protected]

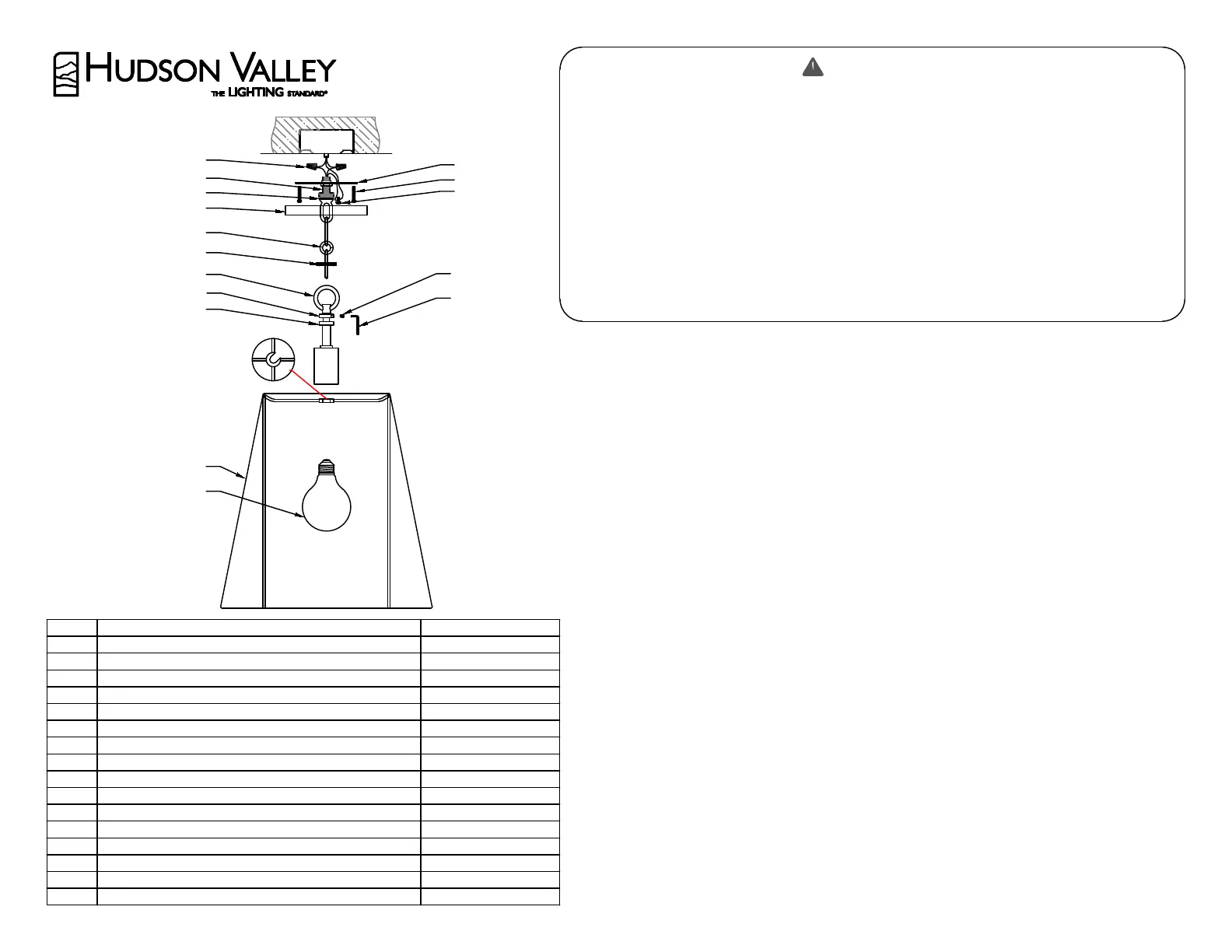

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ITEMDESCRIPTIONPART NUMBER
1
MOUNTING PLATE
HDW-007610
2
MOUNTING SCREWHDW-007610
3
GROUND SCREW
HDW-007610
4
WIRE NUTHDW-007610
5
1/4 NIPPLE
HDW-007610
6
SCREW COLLAR LOOP
HDW-007610
7
CANOPY
CPY-007614
8
CHAINCHN-007614
9
SCREW COLLAR
SCL-007614
10
FIXTURE ASSEMBLY
FAS-007614, FAS-007619
11
RINGRNG-007614
12
HEADLESS SCREWSCR-007614-H
13
ALLEN KEY TOOLINGMIS-007614
14
SHADE HOLDERSHD-007614-H
15
SHADE
SHD-007614, SHD-007619
16
BULBNOT INCLUDED
