FIXTURE INSTALLATION

1.Attach the MOUNTING PLATE (1) to the junction box using the MOUNTING SCREWS (2). This fixture is

designed to be mounted on standard round or octagon junction box. The junction box must be securely mounted

to the structure of the building.

2.Attach the Ground wire (Silver) to the ground inside the outlet box (Generally green or bar copper wire) or the

GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!

FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!

3.Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together

with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with

electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED

WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!

4. Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires

same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS

COULD RESULT IN SERIOUS INJURY OR DEATH!

5.Attach the CANOPY (5) to the MOUNTING PLATE (1) and secure with the SET SCREWS (6)

6.Screw the BULB (9) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 5 WATT

LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!

7.Lift the SHADE (8) up onto the fixture and secure using the GLASS BALL (7)

8.Restore power to the outlet at the breaker or fuse box.

5

6

4

11

10

1

9

2

3

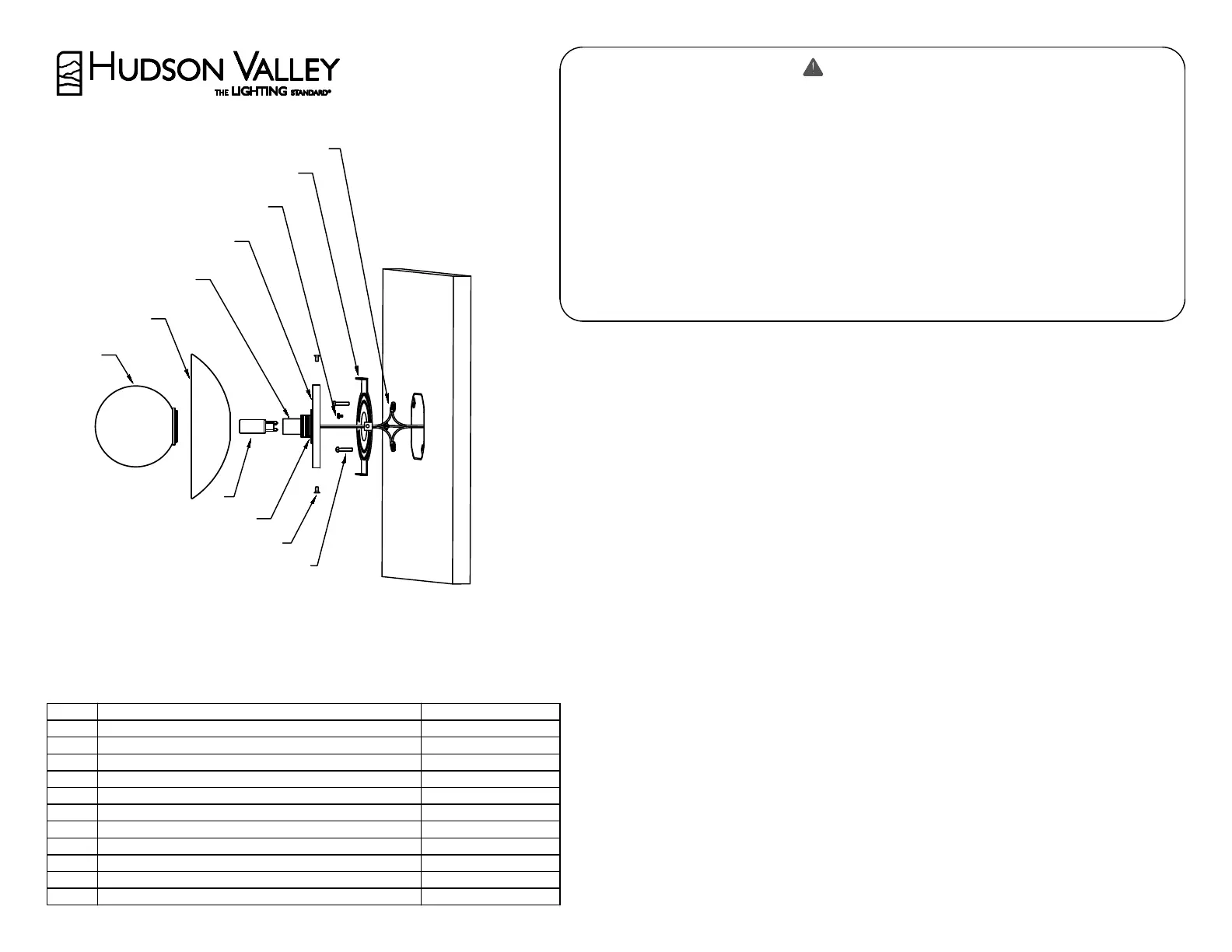

ITEMDESCRIPTION

PART NUMBER

1

MOUNTING PLATE

HDW-005351

2

MOUNTING SCREW

SCR-005351-M

3

GROUND SCREW

SCR-005351-G

4

WIRE NUT

NUT-005351

5

CANOPY

FAS-005351

6

M4 SET SCREW

SCR-005351

7

GLASS BALL

GLS-005351

8

BRASS SHADE

SHD-005351

9

BULB

NOT INCLUDED

10

HOLDER CAP

FAS-005351

11

BRASS SOCKET

FAS-005351

GLIMMER

5351

INSTALLATION INSTRUCTIONS

WARNING/CAUTION

·DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS

COMPLETELY BEFORE STARTING INSTALLATION.

·TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND

MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED

FACTORY TRAINED TECHNICIAN.

·CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS

AFTER USE.

·REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE

CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR

TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.

·DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE

TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT

FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL

ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.

·PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS

www.hvlgroup.com

Questions? We're here to help!

Contact us at [email protected]
