ST-MOD can be powered by either
plugging in a DC Power Supply (included
with the ST-MOD) or by plugging in power
from the HMPS mini mod power supply.
Please see attached power up instructions.
ST-MOD Installation Instructions
MODELST-MOD
*For stereo change “Pre-emphasis” switch to off.
Electronics LLC

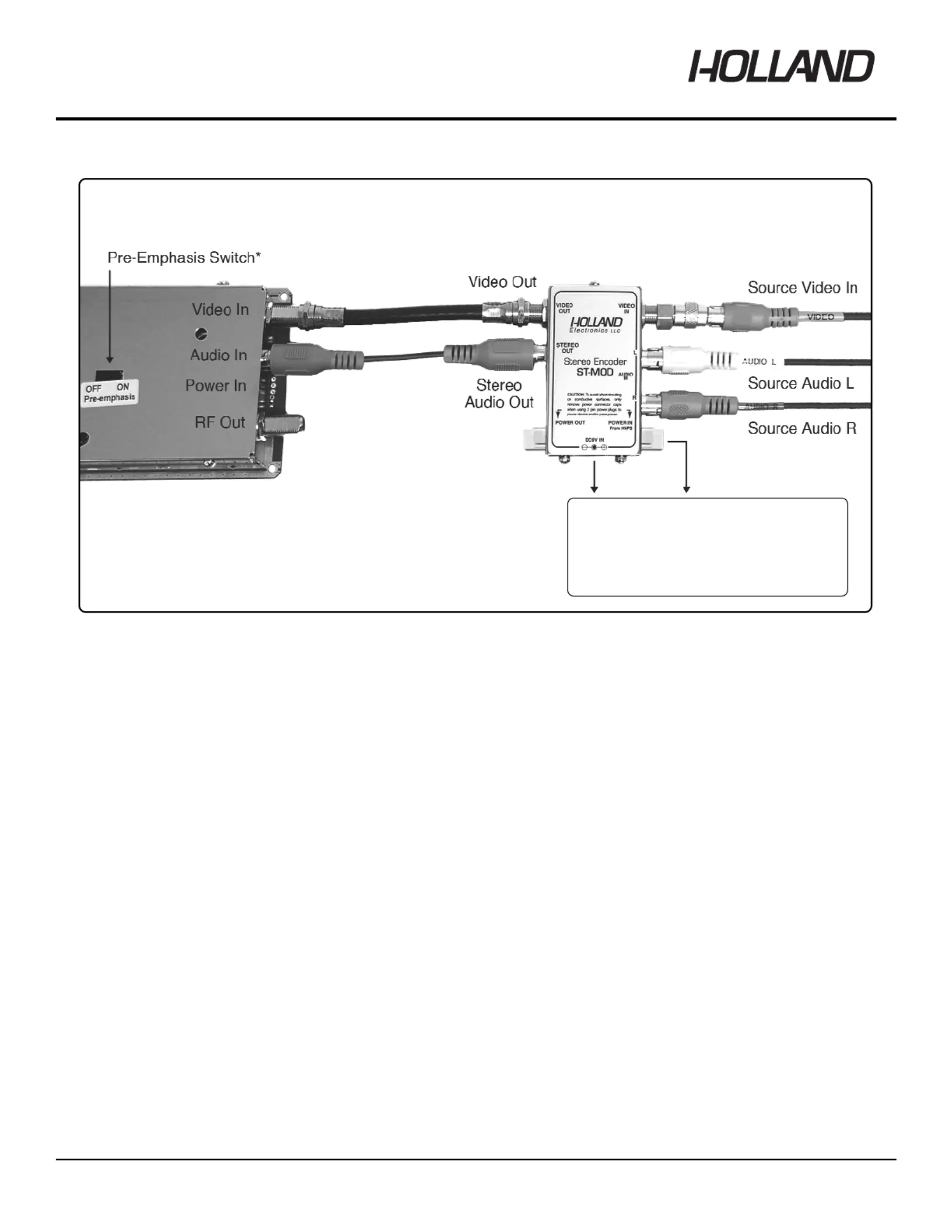

Connect “F” connector coax jumper from “Video Out” of (included)ST-MODto “Video In” of the modulator.
Connect source “Video Out” to “Video In” of the ST-MOD.
Connect yellow RCAjumper (included)from “Stereo Out” of ST-MODto “Audio In” of the modulator.
Disable modulator “Pre-emphasis”by switching to off position.
Connect source “Audio Left” and “Audio Right” to ST-MOD“Audio In Left” and “Audio In Right” respectively.
Plug in power source to ST-MODby using Power Transformer (included)or by plugging in power from HMPS(if applicable).
Adjust audio deviation on modulator for optimal stereo separation.
Holland Electronics, LLC •2935 Golf Course Dr. Ventura, CA93003 (800) 628-4511 (805) 339-9060 ••••www.hollandelectronics.com
Please see ST-MOD Powering Instructionsfor proper powering connections (included).
