Features:

-

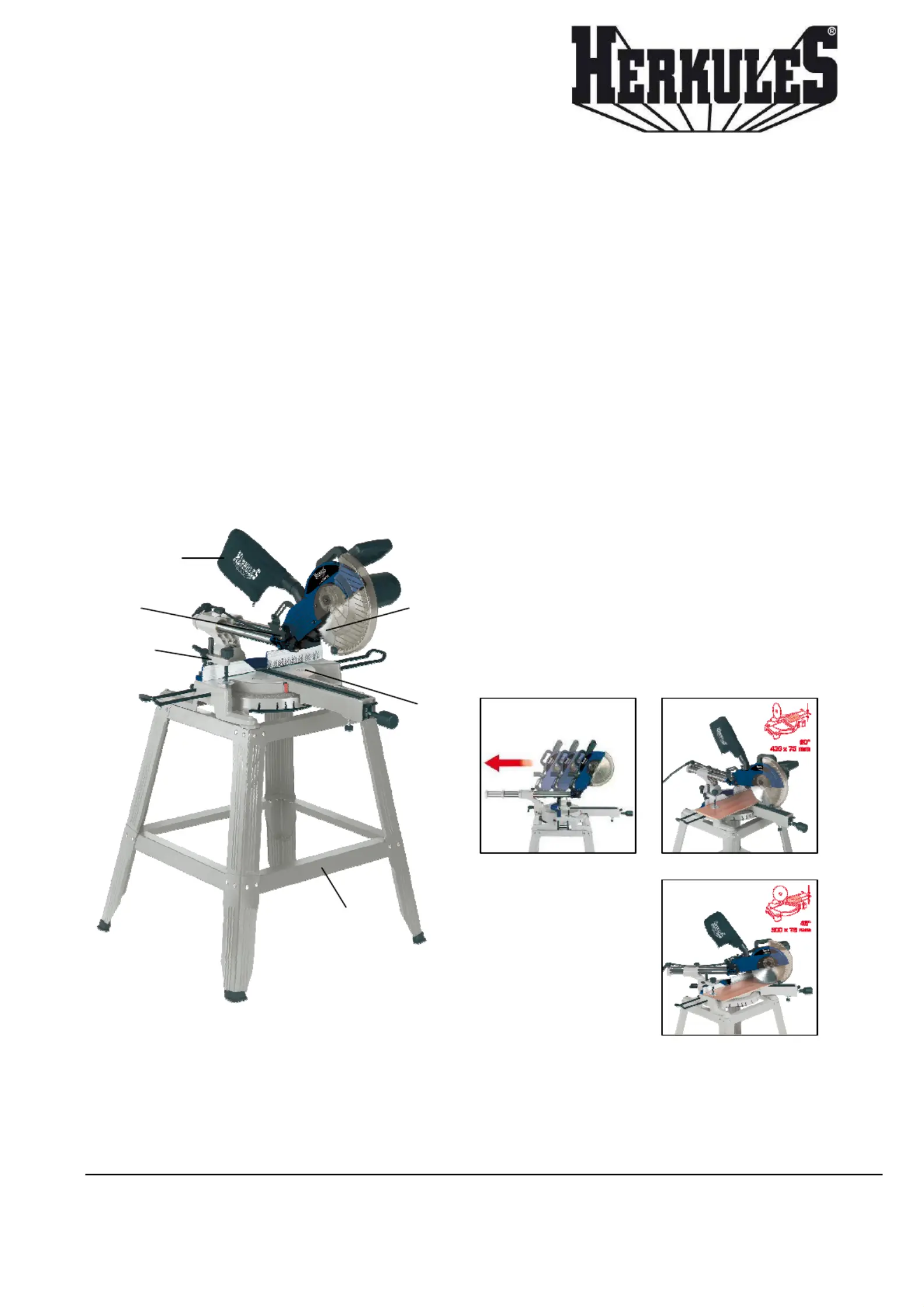

Carbide tipped saw blade (1)

- Rotating table for precise angle cuts ranging from -45 ° to +60 ° (2)

- Undercarriage support (3)

- Clamping device form for fixation of work piece (4)

- Tilting motor head to the left continuously from 0 ° to +45 ° (5)

- Including dust bag (6) and transport locking

- Including laser

Sliding Cross cut- and mitre table saw

Art.-No.: 43.006.73

with base frame

Bar code: 4006825532647

KSZ 4300 UG

Sales unit: 1 pc

The sliding cross cut- and mitre table saw KSZ 4300 UG warrants a clean and smooth cut of wooden parts without

problems. Double mitre cuts are possible with its tilting and swivelling motor-head. Due to its sliding feature the saw

can cut 430 mm wide and therefore wide panels and laminate oorboard can be cut in one go. The undercarriage

support makes the unit ideal for stationary or permanent service.

As special accessory available:

Spare

saw blade

Art.

-

No.:

43.111.13

Ø 250 x Ø 30 x 3,2 mm; teeth = 60

Bar code: 4006825503166

Carbide-tipped saw blade Art.-No.: 43.111.10

250 x Ø 30 mm; teeth = 24

Bar code: 40068254431223

Carbide-tipped saw blade Art.-No.: 43.111.11

Ø 250 x Ø 30 mm; teeth = 48

Bar code: 4006825431230

Technical data:

- Mains: 230 V ~ 50 Hz

- Power: 2000 watts

- Idle speed n

o

: 4800 min

-1

- Saw blade: Ø 250 x Ø 30 x 3 mm

- No. of teeth: 60

- Turning range: -45 °/ 0°/ +60 °

- Panels max.: 430 mm

- Mitre cut: 0 ° to 45 ° to the left

- Cutting width at max. 90°: 430 x 75 mm

- Cutting width at max 45°: 300 x 75 mm

- Cutting width at max. 2x45°:300 x 40 mm

(Width at double mitre cut):

- Weight: approx. 33.7 kg

- Packing dimension: 870 x 560 x 440 mm

1

2

4

6

3

5
