Haws 7777 Handleiding

Bekijk gratis de handleiding van Haws 7777 (1 pagina’s), behorend tot de categorie Niet gecategoriseerd. Deze gids werd als nuttig beoordeeld door 28 mensen en kreeg gemiddeld 4.9 sterren uit 4 reviews. Heb je een vraag over Haws 7777 of wil je andere gebruikers van dit product iets vragen? Stel een vraag

15"

381mm

4"

102mm

Ø10mm

Ø203mm

40"

1016mm

BC

Ø8"

FLOOR

LINE

3X

Ø3/8"

Ø229mm

Ø9"

OBSTRUCTION

171mm

38-5/8"

981mm

32-1/2"

826mm

6-3/4"

1-1/4" IPS

WASTE

(OPTIONAL)

1/2" IPS

STRAINER

SUPPLY

9" MIN.

9102 DUST COVER ASSY

35mm

1-3/8"

229mm

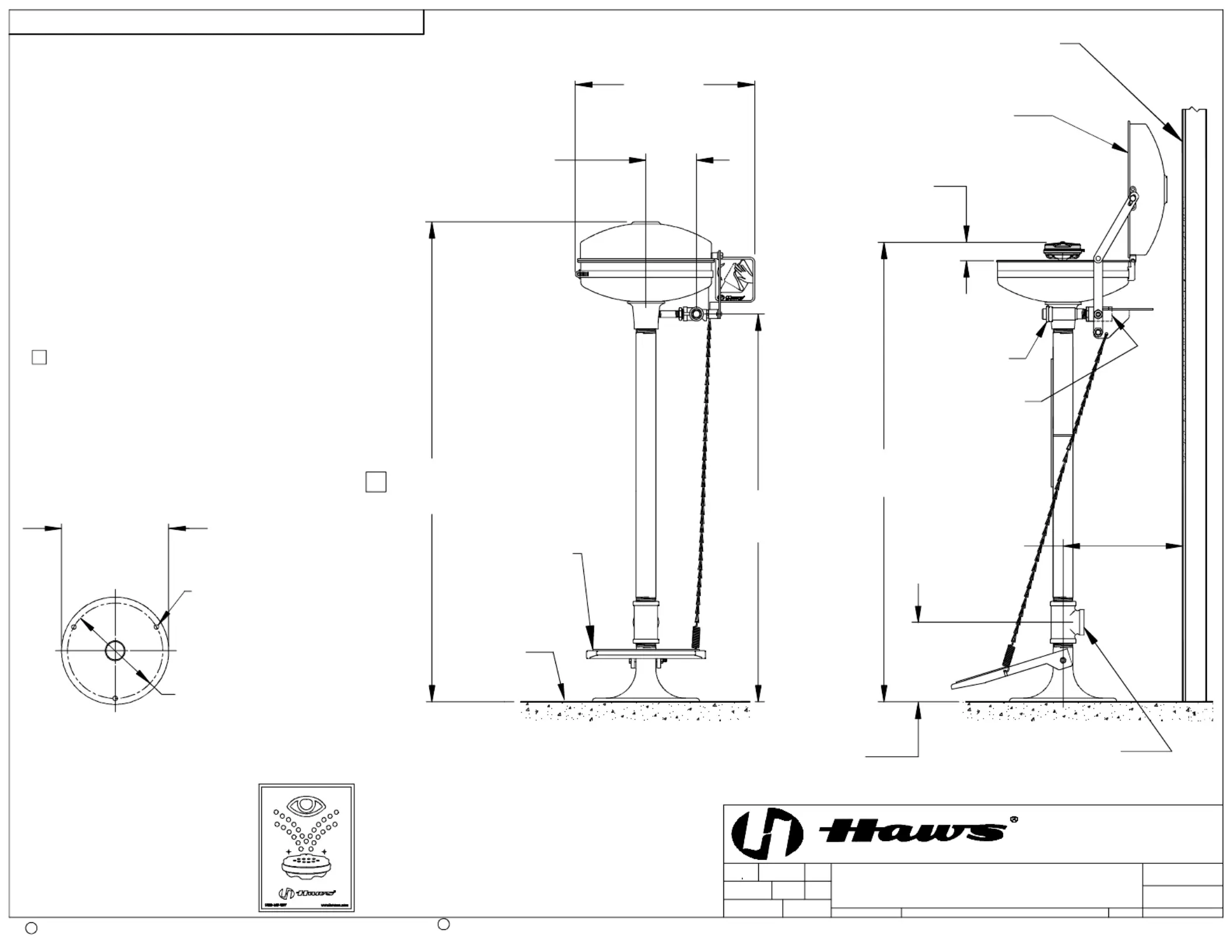

MOUNTING DETAIL

*

*

*

*

SP220SS

OPTIONAL

NOTES:

1. TO COMPLY WITH ANSI Z358.1-2009 FOR

EMERGENCY EYEWASH OR EYE/FACE WASH AND

SHOWER EQUIPMENT:

- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH

MANUFACTURER'S INSTRUCTIONS AND ACCEPTABLE

PLUMBING PRACTICES.

- EYEWASH OR EYE/FACE WASH SHALL BE

POSITIONED WITH NOZZLES NOT LESS THEN 83.8 CM (33

IN.) AND NO GREATER THAN 114.3 CM (45 IN.) FROM

SURFACE ON WHICH USER STANDS AND 15.3 CM (6 IN.)

MINIMUM FROM WALL OR NEAREST OBSTRUCTION.

2. *DIMENSIONS MAY VARY ±1/2" [12.7mm].

3. CENTERLINE WASTE PLACED 9"[229mm]

MIN. FROM OBSTRUCTION.

4 DIM APPLIES WHEN OPTIONAL 9102 DUST COVER

ASSEMBLY IS USED.

SIGN IS TO BE POSITIONED SUCH

THAT IT IS VISIBLE WITHIN THE

AREA SERVED BY THE EYEWASH

APPROVED:

DRAWN:

PART NUMBER

SCALE:

SHEETOF

REVISION

DRAWING TYPE:SIZE: A

BY:ECN NO.

DATE:

DATE:

ECN:

REVISED PER

CHK'D.:

Haws Corporation - All Rights Reserved.

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

C

R

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: HAWS@HAWSCO.COM

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

CJL

05/91

15

0002080102.D

7777

SS PED MTD EYE/FACE WASH

1/10

11

FV

09/01/16

VWC

INSTALLATION

5133

2016

CJC

(OPEN POSITION)
