For Technical Service, please contact us at 1.800.476.4106

1000001944 (Rev. B - 08/16)

Halsey Taylor - www.halseytaylor.com

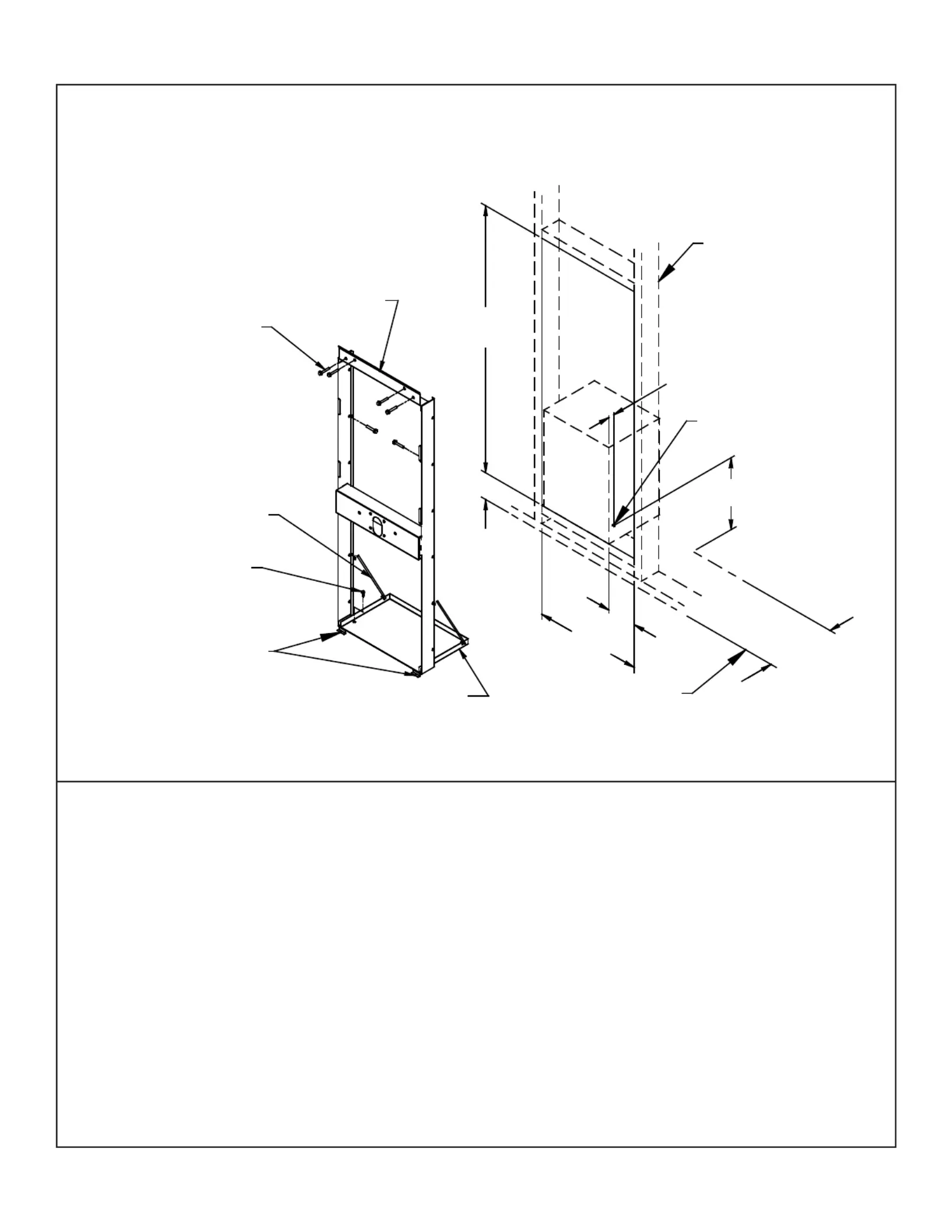

(P/N 27638C

- PROVIDED)

(P/N 101567443730

- PROVIDED)

(5/16" SCREWS OR BOLTS

10 REQ'D - NOT PROVIDED)

FRAME

(SCREWS OR BOLTS

NOT PROVIDED)

52 1/8"

1324mm

4 1/2

114mm

18 3/4"

476mm

5 1/8"

130mm

BACK OF WALL TO

BE 12" (305mm)

MIN DEPTH

8"

203mm

TO FLOOR LINE

1"

25mm

ELECTRICAL INLET

LOCATION ON CHILLER

WOOD OR STEEL FRAME

SHOWN (NOT PROVIDED)

FLOOR LINE

MFWSF130

INSTALL (2) SCREWS

(P/N 111008343890 - PROVIDED)

BEFORE INSTALLING IN OPENING

MFWSF130 MOUNTING FRAME INSTRUCTIONS

1. 18 3/4” (476mm) W x 52 1/8” (1324mm) H and 4 1/2” (114mm) above Cut a square rectangular wall opening

the oor line. These dimensions are required to obtain proper rim and bubbler heights for compliance with ANSI

standard A117.1.

2. Reinforce the wall opening on all sides so that it will adequately support the water fountain. This reinforcement

must support up to 150 lbs static load and provide a means for securing the frame assembly in place.

NOTE: Building construction must allow for adequate air ow on both sides and top of remote chiller unit.

Minimum of 4” (102mm) is required.

3. Install plumbing and electrical rough-ins. A junction box for a (3) wire, 10 amp branch circuit is provided on the

inside of the chiller. (Standard 120 Volts, 60 Hz and single phase).

4. Remove frame assembly and related hardware from packaging. Install the frame squarely in wall opening with

frame upright edges ush with the nished wall face. Place shelf inside frame and line up the (2) holes on each.

Insert loose ends of rods into holes on sides of shelf panel. Using appropriately sized screws or bolts (not provided),

fasten the shelf and frame to bottom of wall opening. Secure the frame sides and top to the wall using (10) 5/16” bolts

or screws (not provided). Tighten securely.

NOTE: Be sure that frame is squared in location. Do not use less than required screw quantity and size.
