Assembly Instructions: 0839-M1L
IMPORTANT:
•ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
•SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
•USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED THE MAXIMUM WATTAGE!
PREPARING FOR INSTALLATION
Remove all of the contents from the carton. See the important
notes above. Shut off the power at the circuit breaker and
completely remove the old xture from the ceiling, including the
old mounting strap.

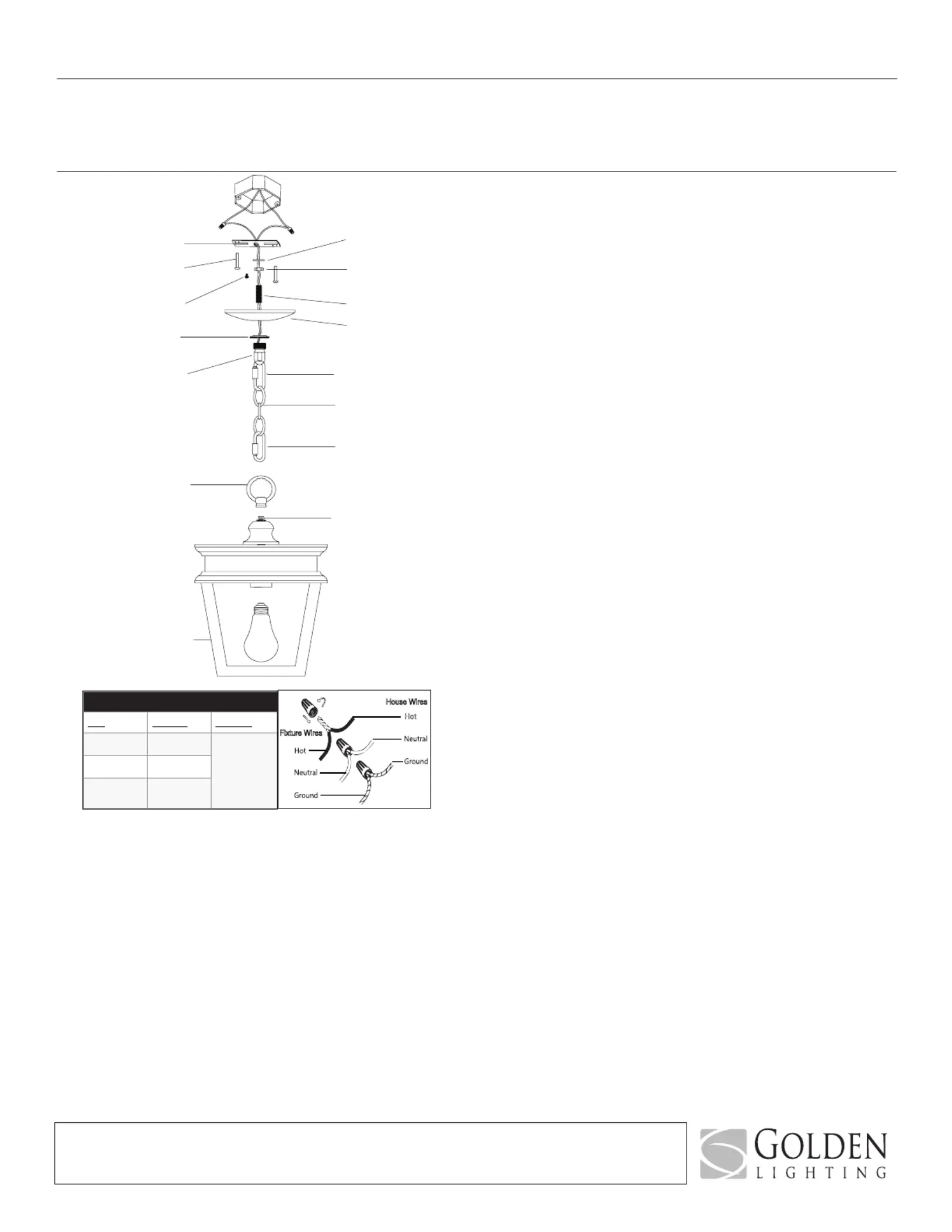

1. From the parts bag remove the mounting strap assembly. One end
of nipple (F) should be attached to mounting strap (A) with washer
and hex nuts (C & D) in place. The other end should have canopy
loop (H) and canopy loop collar (I) attached.
2. Attach mounting strap (A) to the junction box using mounting
screws (B) and a screwdriver. Tighten securely.
3. Unscrew canopy loop collar (I) from canopy loop (H) and slide
down. Pass canopy (G) over the mounted canopy loop (H) to test
thextureheight.Approximatelyhalfoftheexteriorthreadsofthe
canopy loop (H) should be exposed, and the canopy loop collar
shouldtsnuglyontothecanopyloop.Ifneedbe,removecanopy
(G) and adjust the height of nipple (F) and canopy loop (H) until the
desired height is reached.
ASSEMBLING THE FIXTURE
4. Measure to determine the correct length of chain needed for
proper hanging height. If necessary, use a pair of pliers to open and
remove any excess chain. Attach one chain connector (K) to each
endofthechain(J).Passthexturewiresthroughtoploop(L).Pull
the wires until taut.
5. Attach one end of the chain with chain connector to the top loop
(L).Feedthexturewiresupthroughthechain(everythreelinksor
so), pulling the wires until taut. Use the remaining free chain end with
chain connector to attach chain to canopy loop (H). Close the chain
connector on both ends to secure.
6. Slide canopy loop collar (H) and canopy (G) down onto the chain/
wires. Pull the wires until taut. Trim the wires to the desired length
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe
down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
For Customer Service, please
contact the place of purchase.
House Wires
Fixture Wires
Hot
How to Identify the Fixture’s Wires
HotNeutralGround
Smooth
Ribbed
Bare Metal,
Green, or
Green Inner
Thread
Black
White
Black Inner
Thread
White Inner
Thread
CONNECTING THE WIRES
7.Haveanassistantsupporttheweightofthexturewhilecompletingthewiring.Cutawayexcesswire.Attachthexture’swiresto
thehousewireswhichwerepulledearlierfromthejunctionboxthroughthemountingstrap(B).Connectblacktoblack(orsmooth);
whitetowhite(orribbed);groundtoground(greenorcopper).Twisttheendsofthewirepairstogether,andthentwistonawire
connector.Makesurealltwistsareinthesamedirection.Ifthereisnogroundwire(greenorcopper)comingfromthejunction
box,locategroundscrew(E)onthemountingstrapandwrapthexture’sgroundwirearoundthegreengroundscrew(E).Usea
screwdrivertosecuregroundscrew(E)ontothemountingbracket.Tuckallwiresneatlyintothejunctionbox.
FINISHING THE INSTALLATION
8. Push canopy (G) up to the ceiling and slide canopy loop collar (I) up beneath the canopy. Tightly thread canopy loop collar (I) onto
canopy loop (H) to secure canopy (G) in place.
9.Threadthetoploop(L)ontothenipple(M)ofxturebody(N).Hand-tightenuntilsnug.
Installalightbulb(notincluded)inaccordancewiththexture’sspecications.Donotexceedmaximumrecommendedwattage.
Yourinstallationisnowcomplete.Turnonthepowerandtestthexture.
M
A
C
B
D
E
F
H
I
G
J
K
L
N
K
