Instruction Part Number
P26630 Issue 3
How to use and care for your Ergo Quickset Adjustable
Torque Screwdriver
Tool Specication
Models: All models
(QSN 40: 0.08 – 0.40 Nm, QSN 120: 0.2 – 1.2 Nm, QSN 600: 1.0 – 6.0 Nm, QSN 900: 4.0 – 9.0 Nm)
Accuracy: +/- 6% of Torque Setting
ISO 6789 Class: Type 2, Class D
Calibration Period: Every 12 Months or 5000 cycles (minimum)
Mechanism: Slipping - Incorrect tightening is impossible
EPA Compliant: All Models
At the set torque, the handle rotates through
an angle of 60° before resetting.
Safety & Maintenance
This Torque Tool is a precision instrument and should be used for its
intended purpose only
Only hold the tool using the handgrip
Always ensure that the tool is in correct alignment with the fastener
Torque tools should be regularly calibrated and inspected to ensure correct
operation
Ensure the tool is clean and free from oil, grease and water before use
Do not use extension bars to increase the leverage of the handle
Never dip into cleaning uid or petroleum

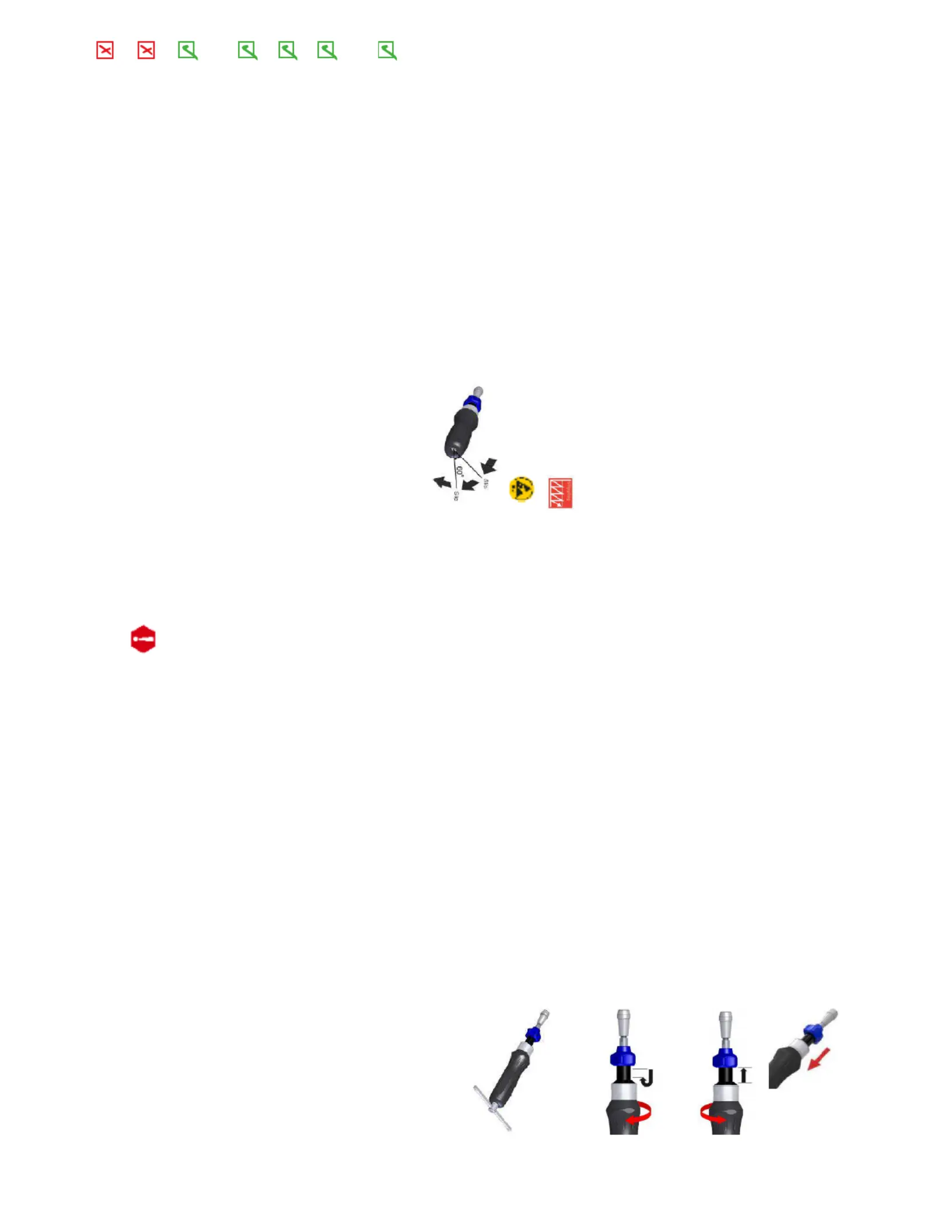

How to adjust your Torque Screwdriver
To adjust the torque setting:
Engage the adjusting mechanism by pressing
and holding down on the anodised adjusting knob.
To increase torque:
Rotate the handle clockwise until the required
torque is selected on the calibrated scale.
To reduce torque:
When adjusting, always approach the required
torque from a lower setting.
Rotate the handle anti clockwise passed your
setting, then increase torque to the required
value.
To increase leverage:
Optional lock on T-Bar for larger models of
screwdrivers, provides extra leverage when
required. (Order Code P29530).
This ts into the ¼" Square Drive (SD) in
the end of the handle.
To use Torque Screwdriver:
The Ergo Quickset Screwdriver is designed
for use with sockets, screwdriver bits and blades.
After use, set the screwdriver at the lowest setting
on the scale.
Servicing Information
Regular servicing of your Torque Tool by competent personnel is important to
ensure it continues to perform correctly.
Product specificaties
| Merk: | Gedore |
| Categorie: | Schroefmachine |
| Model: | QSN 40 FH |
| Gewicht: | 124 g |
| Breedte: | 159 mm |
| Kleur behuizing: | Zwart/Blauw |
| Type product: | Enkele |
| Aantal schroevendraaiers: | 1 |
| Schroevendraaier type: | Momentschroevendraaier |
| Bits voor hex-schroevendraaiers (Britse eenheid): | 1/4 " |
| Aantal krachtdoppen: | 1 |
| Handvatisolatie: | Ja |
