Pagina 1/4

ATB - Adjustable Breaking

Torque Wrench

ATB 25, ATB 50, ATB 100 All versions

Verstellbarer Knick-Drehmomentschlüssel - Clés à cassure réglables,

Llave dinamométrica de rotura adjustable - Chiavi "breaking" regolabili

Operators Manual

Instruction Part Number P33670 Issue 1

ATB –Adjustable Breaking Torque Wrench

Products: ATB 25, ATB 50, ATB 100 All Models

Mechanism Type: Breaking

ISO 6789 Designation: Type 2, Class A

Repeatability: +/- 4% of Torque Setting

Calibration Period: Every 12 Months or 5000 cycles (minimum)

•Use only as a Torque Wrench.

•Do not use as a hammer or pry bar.

•Do not use extension bars to increase the leverage of the handle.

•Only hold the tool using the handgrip.

•Always ensure that the tool is in correct alignment with the fastener.

•Torque tools should be regularly calibrated and inspected to ensure

correct operation.

•Ensure the tool is clean and free of oil, grease and water before use.

•Never dip into cleaning uid or petroleum.

Safety & Maintenance

ATB –Adjustable Breaking Torque Wrench

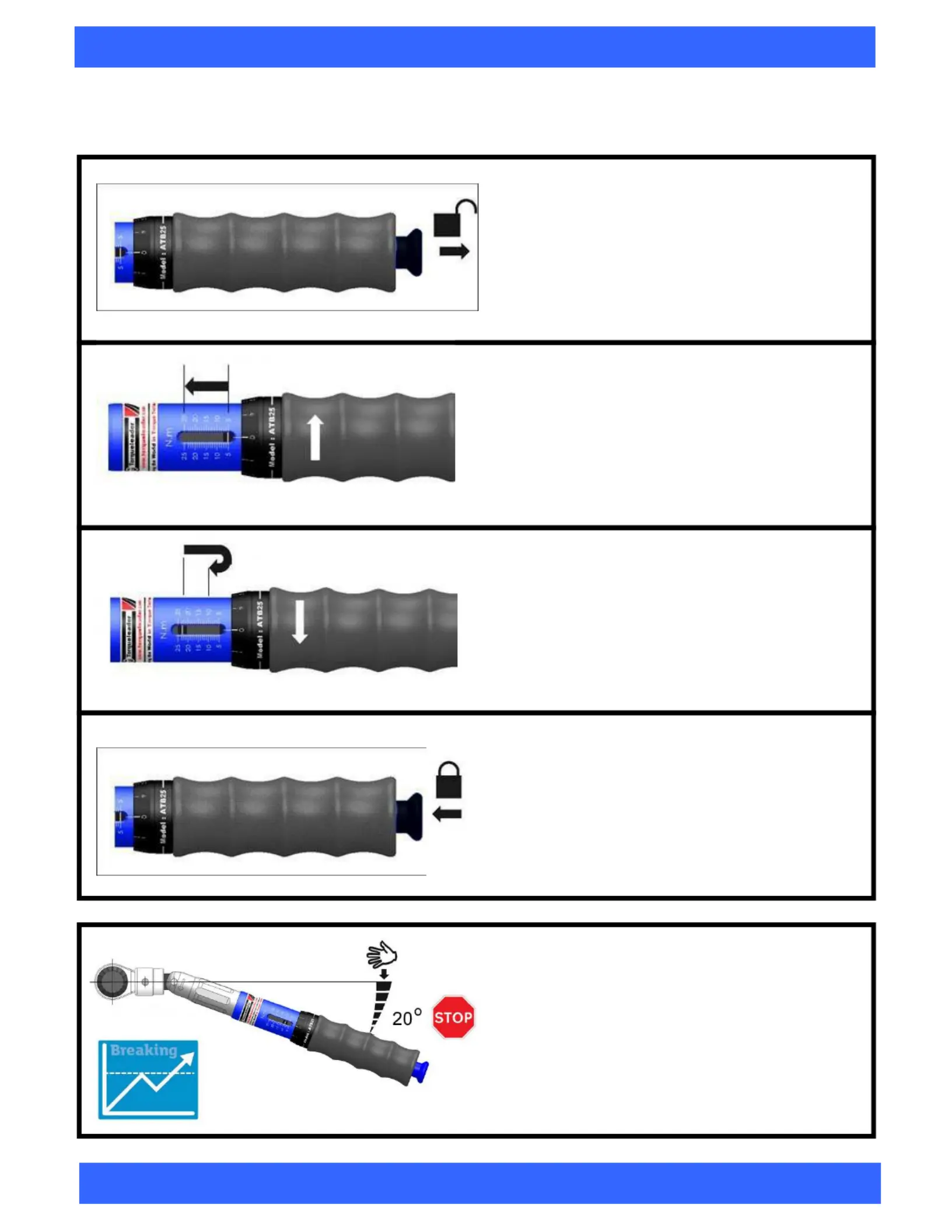

Adjustment Procedure

Unlock

Unlock the adjustment mechanism by pulling

the Locking Knob at the end of the handle.

Increase Torque

Rotate the hand grip clockwise until the

required torque is selected on the calibrated

scale.

Reduce Torque

When adjusting, always approach the required

torque from a lower setting.

Rotate the hand grip anti-clockwise past your

setting, then increase torque to the required

value.

Lock

Lock the adjustment mechanism by pushing

the Locking Knob at the end of the handle.

The ATB Wrench is tted with a reversible

square drive ratchet and is designed for use

with socket accessories.

At the set torque, the handle moves through an

angle of 20

before resetting.

After use, set the wrench at the lowest setting

on the scale.

Product specificaties

Merk:	Gedore
Categorie:	Schroefmachine
Model:	ATB 50
Gewicht:	1140 g
Soort:	Mechanisch
Kleur handvat:	Black, Blue
Nauwkeurigheid:	4 procent
Lengte:	365 mm
Type product:	Momentsleutel "Slipper"
Afmeting aandrijfvierkant:	3/8 "
Koppelbereik:	10 - 50 Nm
Kleur steel:	Staal
